Product Details:
|
| Feature: | Two Design In One | Capacity: | 20m/min |
|---|---|---|---|
| Thickness: | 0.3-0.6mm | Power: | 5.5kw |
| Weight: | 7T | Size: | 8m |
| High Light: | metal roll forming machine,corrugated roll forming machine |
||

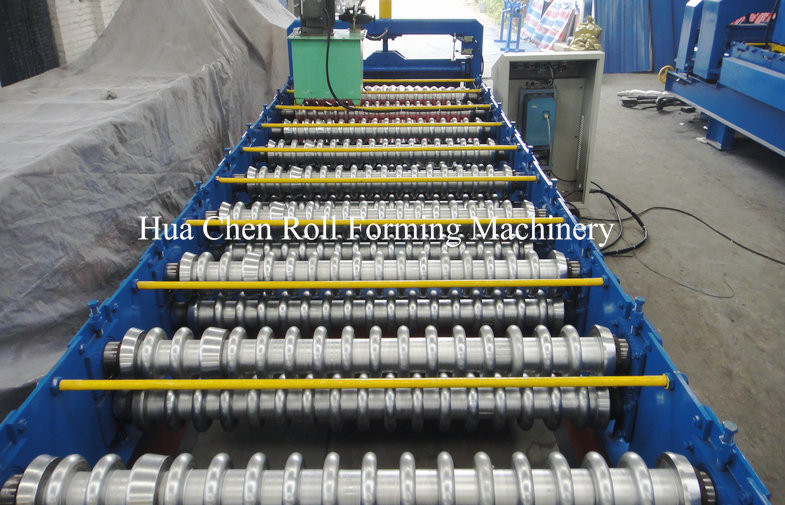

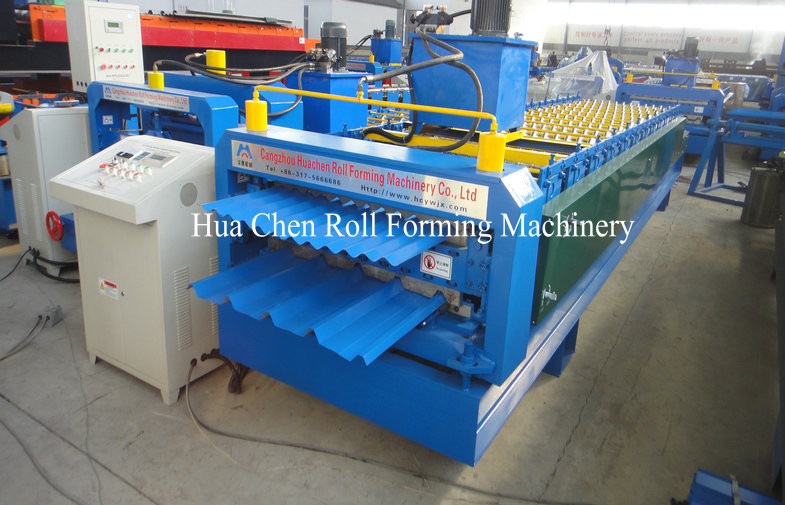

Double layers Used Roll Forming Machine plate rolling machine
specialized manufacturer of roll forming machine with 15 years experience
exported to more than 30 countries,such as USA,COLOMBIA,BRAZIL,PERU,JAMACIA,INDONESIA,INDIA,VIETNAM,PHILLIPPINES,BURMA,KENYA,NIGERIA,SOUTH AFRICA,MALAWIS etc.
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000mm
3. Rollers: 12/17 rows
4. Dimensions: 9.7*1.45*1.91m
5. Power: 3+3kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Supplying components of complete machine
|
NO.
|
Description
|
Quantity (set)
|
Remark
|
|
1
|
5Tmanual decoiler
|
1
|
As one complete part
|
|
2
|
Guiding device
|
1
|
|
|
3
|
Pre-cutter
|
1
|
|
|
4
|
Forming system
|
1
|
|
|
5
|
Transmission system
|
1
|
|
|
6
|
Hydraulic guillotine
|
2
|
|
|
7
|
Support table
|
2
|
|
|
8
|
Hydraulic station
|
1
|
|
|
9
|
Control box
|
1
|
|
|
10
|
Spare parts and tools
|
1
|
As attaching list
|
3.General parameters
|
No
|
Item
|
Parameter
|
Note
|
|
1
|
Forming Speed
|
Max15 m/min
|
Excludes cutting
|
|
2
|
Forming station
|
Around 16 groups
|
|
|
3
|
Total Power
|
About 7 KW
|
|
|
4
|
Total Weight
|
About4380KGS
|
|
|
5
|
Voltage
|
380v,60hz,3p
|
it can be customized as your request
|
Description:
Double layer roll forming machine Main parameter
|
No. |
Main parameter of Double layer roll forming machine
|
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
upper level :12 rows Down level :17 rows |
|
4 |
Dimensions |
9200*1450*1910mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
Application

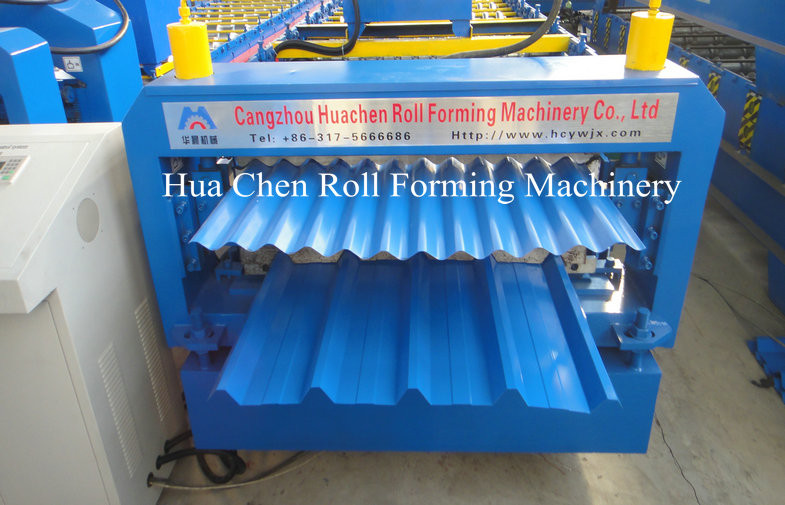

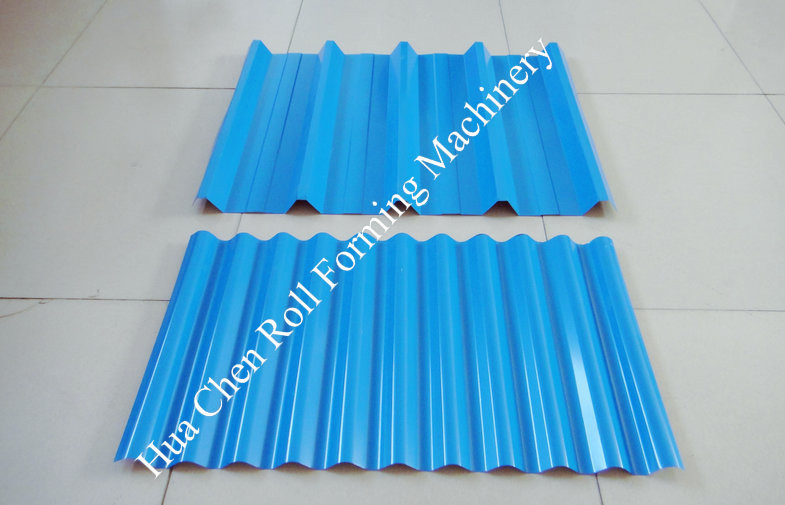

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
After-sales service
Technical Support
Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.
Spare Parts
Promptly providing spare parts and wearing parts.
Upgrade
Improve technology and upgrade of equipments.
Other service
Raw Materials
Supply of raw materials made in China with good quality, quick delivery and reasonable price
