Product Details:
|
| Material: | Galvanized Steel, Cold Steel | Thickness: | 0.5-0.9mm |
|---|---|---|---|
| Capacity: | 25m/min | Name: | 175mm Shaft Bearing Steel Cold Stud Forming Machine 380v 50hz 3 Phases |
| High Light: | cold steel stud forming machine,380v 50hz stud forming machine,3 phases stud roll former |
||
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate:175mm
3. Rollers: 12rows
4. Dimensions: 6.1*1.15*1.51m
5. Power: 4.5+3kw
6. Rolling material: shaft bearing steel(quenching)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control

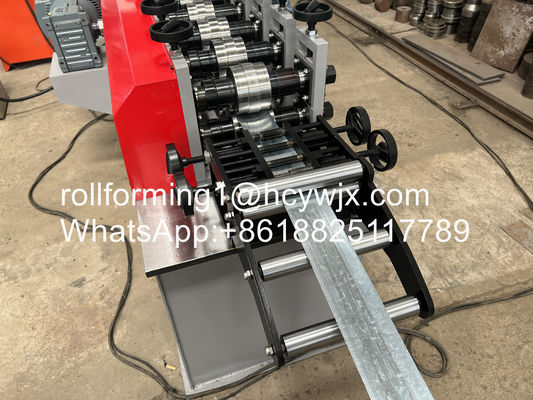

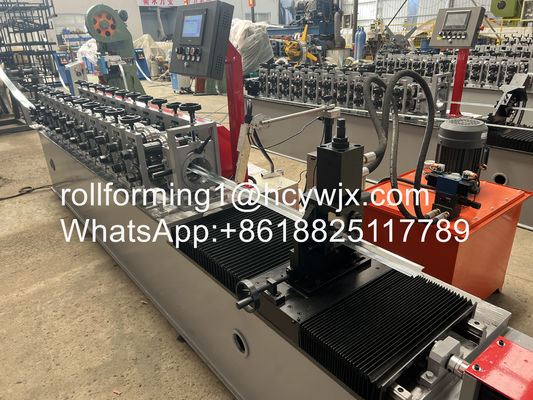

Shaft Bearing Steel Cold Roll Forming Machine
Description:
Keel Roll Forming Machine Main parameter
|
No. |
Main parameter of Keel Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
175 mm |
|
3 |
Rollers |
12 rows |
|
4 |
Dimensions |
6100*1150*1510mm |
|
5 |
Power |
4.5+3kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
7 |
Thickness of the plate |
0.3-0.6 mm |
|
8 |
Productivity |
20m/min |
|
9 |
Diameter of the roller |
Φ50mm |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Competitive Advantage
1. ISO/CE certification
2. 20sets/ month
3. high-speed production
4. easy operate, easy maintain
5.One year free warranty
