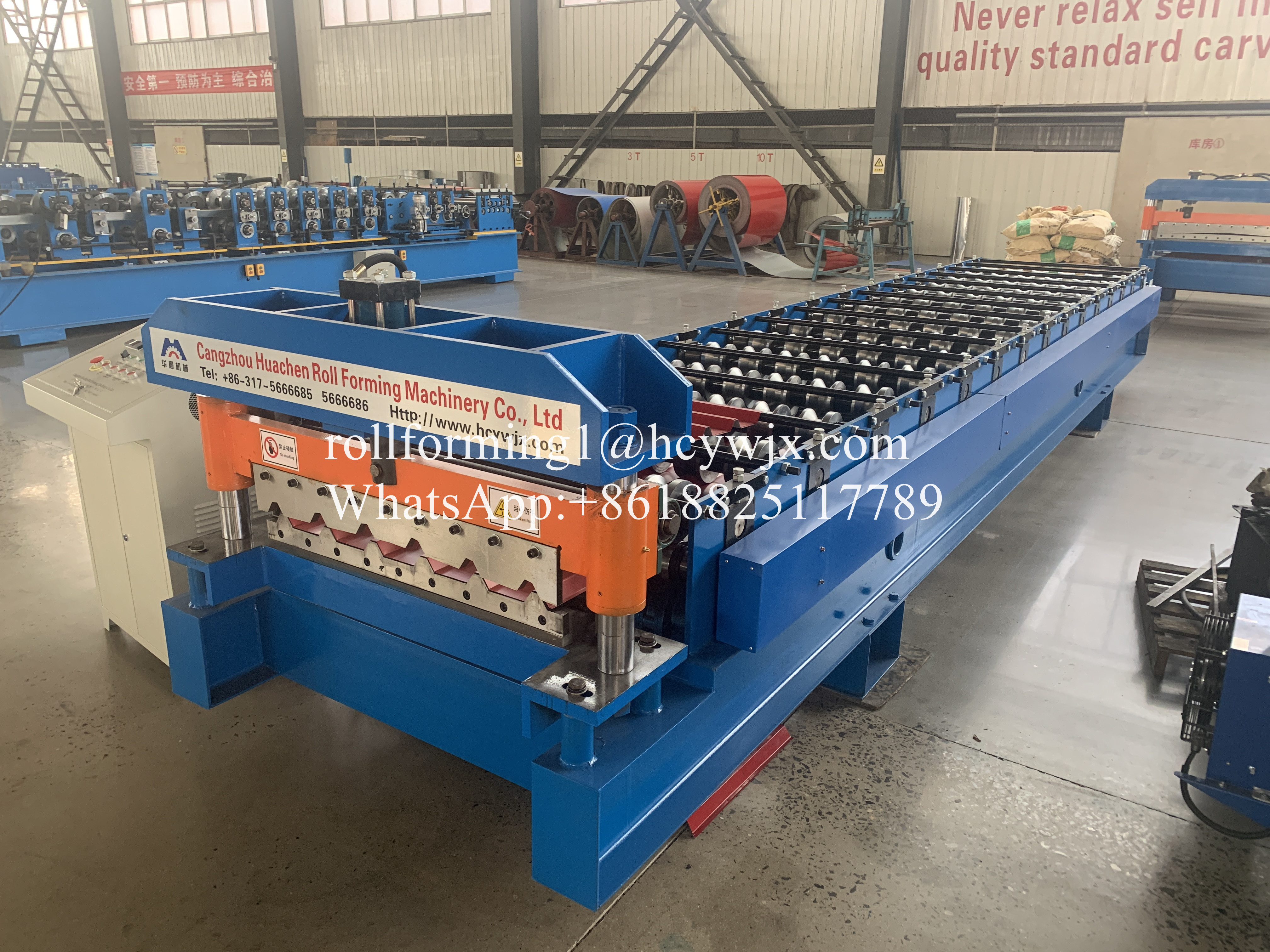

SUPERTECHO Roofing Sheet Machine

Product Description

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 1200mm

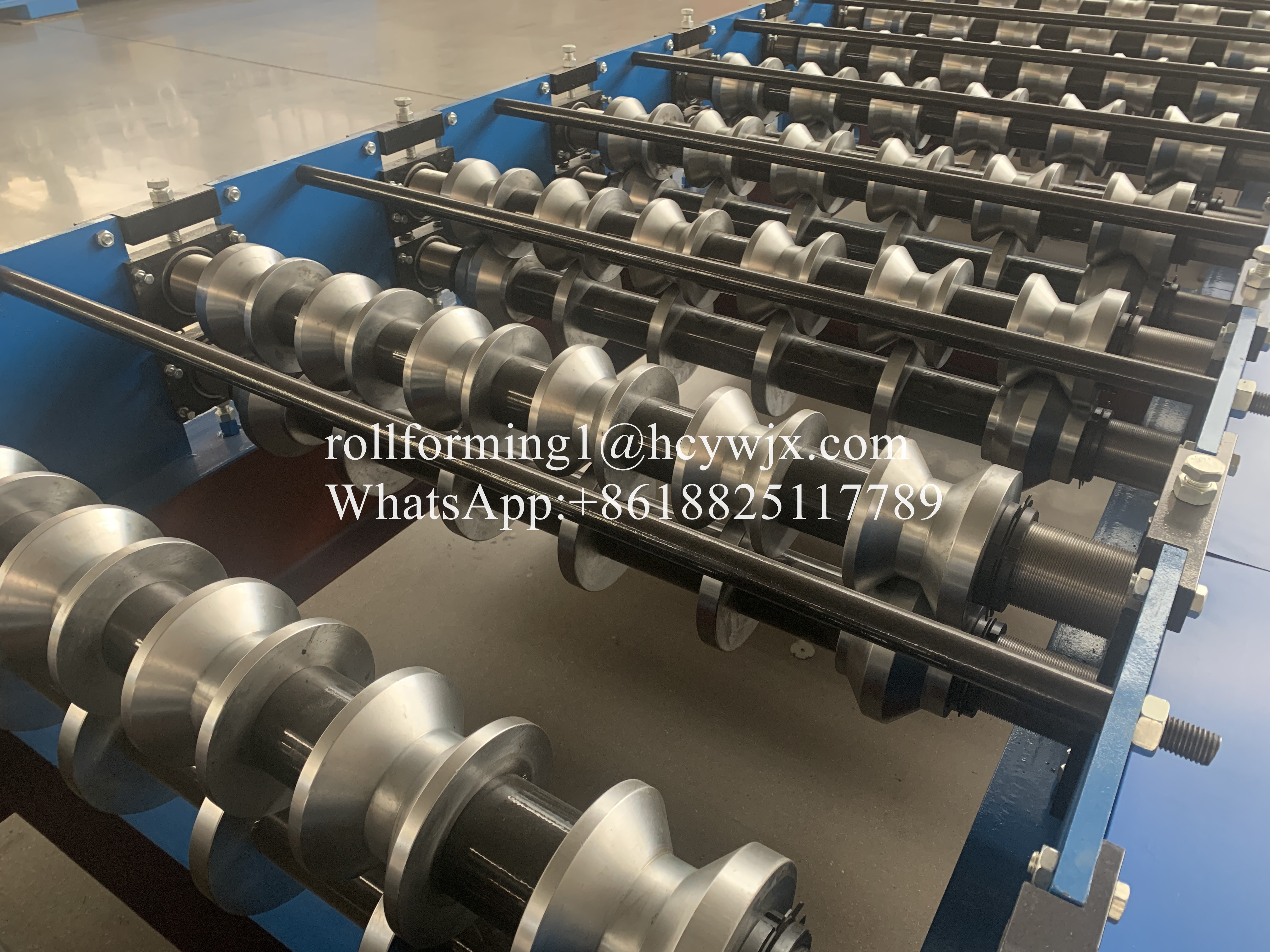

3. Rollers: 11 rows

4. Dimensions: 5.8*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Description:

Roof Sheet Roll Forming Machine Main parameter

No.	Main parameter of Roof Sheet Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	1200mm
3	Rollers	11 rows
4	Dimensions	580015501510mm
5	Power	4+4kw
6	Rolling material	45# steel(plated chrome on surface)
6	Thickness of the plate	0.3-0.6mm
7	Productivity	8-10m/min
8	Diameter of the roller	Φ70mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Application

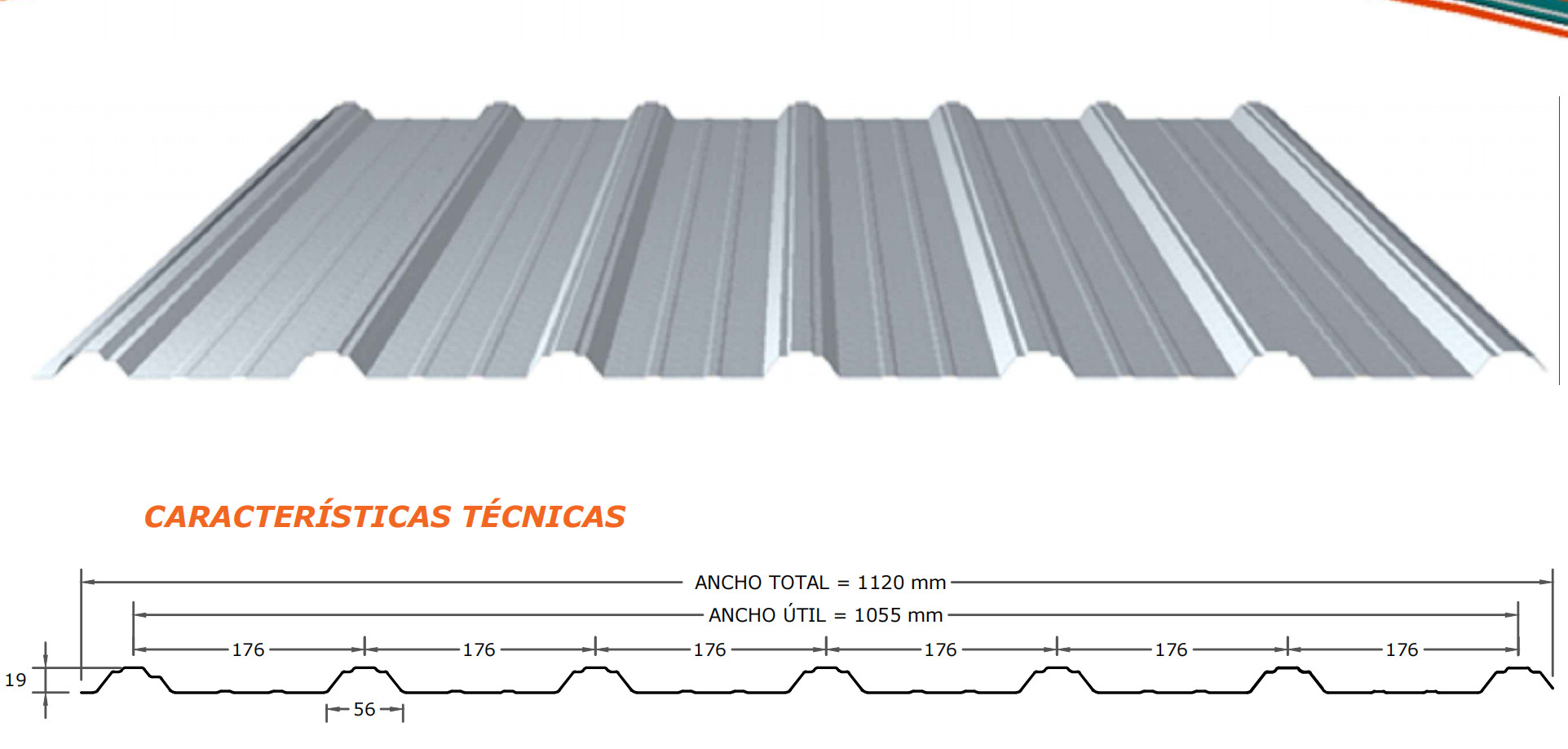

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.

Competitive Advantage

1. good service

2. easy installation

3. short delivery time

4. professional design team

5. easy to use
