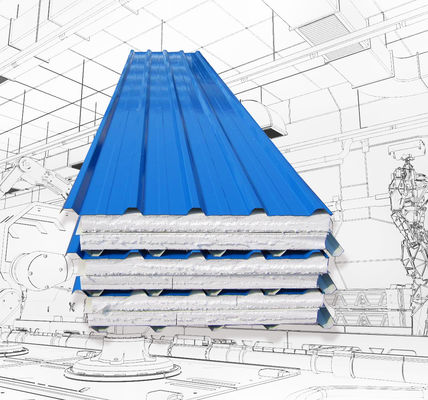

Automatic Eps Sandwich Panel Production Line With 6 Rows 3KW

EPS Insulating material sandwich panel roll forming machine automatic line

Multi-functional color steel insulation sandwich panel assembly line

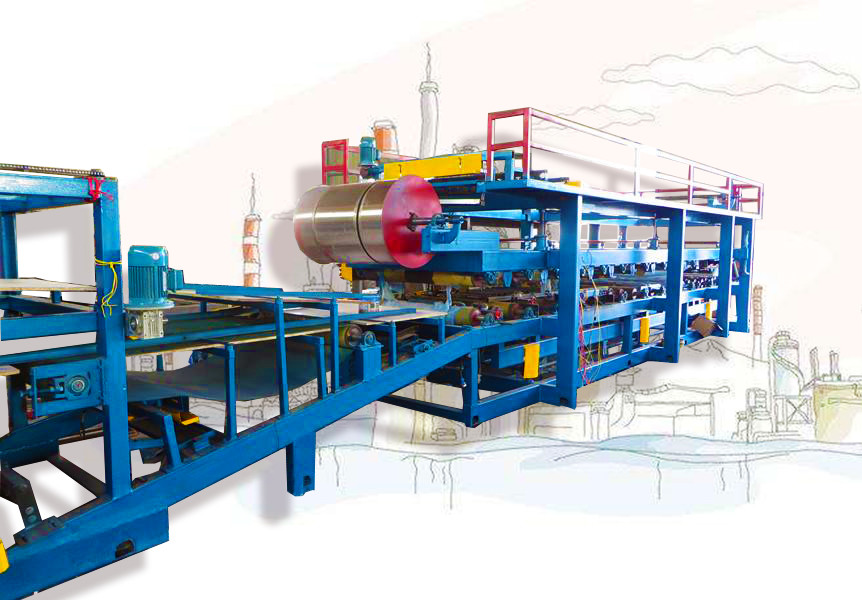

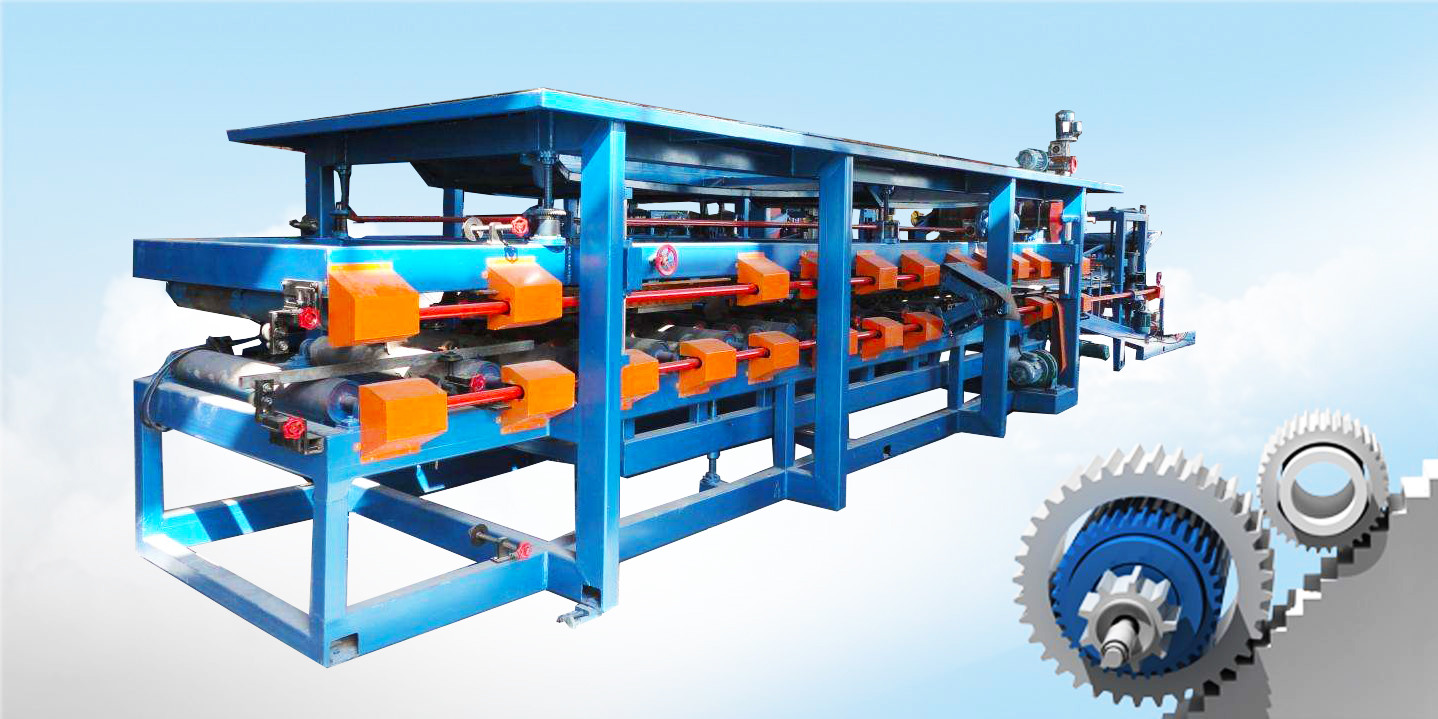

EPS composite board production line adopts advanced production technology and integrates gas and electric machinery. It is a special machine equipment for processing color steel composite board.The working speed adopts frequency conversion

Stepless speed regulation.It can be combined into corrugated composite board assembly line in one time, with discharging mechanism, pressing mechanism and compound mechanism (including pressing bar, gluing, heating and compounding)

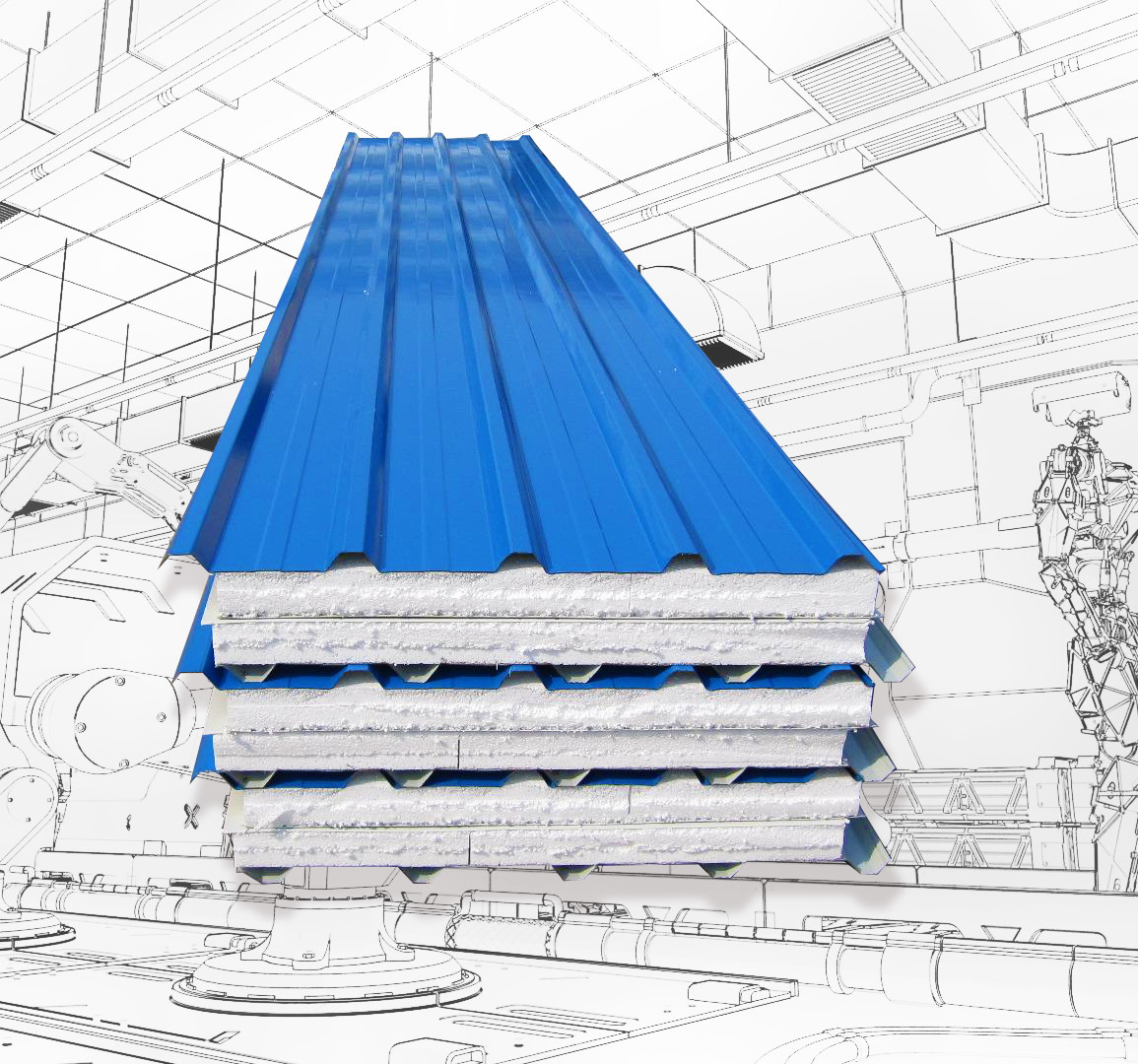

It is an indispensable equipment for the production of roof panels and wall panels in industrial plants and warehouses.

It is mainly divided into five types and seven types.The self-selected model of model 5 is 950 foam type, 980 self - locking type and 970 foam lap type.There are more models of model 7

The two models are 950 rock wool type and steel band sealing side box.

Welded steel plate body, good rigidity, stable precision;

Combined pneumatic friction clutch with stable transmission and low noise;

Sensitive movement and safe operation;

Well lubricated and clearly marked;

High efficiency of automatic production;

Hydraulic overload protection, convenient and reliable;

The electrical system is controlled by PC.

The main detailed technical parameters of the type 5 machines

it is a machine that can only produce foam compound machine

1: the length of the main machine is 6 meters, and the rubber roller frame of 150 is 80x160x6mm

2. The thickness of foam composite plate can be 50-250mm thick

Replace the upper and lower iron rollers of the equipment with rubber rollers.Except 13 to the shaft is iron rod, the rest are rubber roll, 150 rubber flat roll is 19, corrugated rubber roll 6

4. The lifting and lifting of the main machine is 4 wire rods, which must use 3 elephant legs and 6 lower transmission shafts

The R Angle of the male edge pressing wheel is 75. And the side pressing wheel is 2 channels shaped and adjustable.

The power of the main motor is 3kw, and the internal contactor of the control cabinet is Siemens

Total weight of production line: 11T

Main parameters of the press:

(1) the compressor captain is 7500mm. The fuselage frame is welded with 300H steel.

(2) the press roller is 45# steel, and the surface is plated with hard coils

(3) wall plate type, wall plate thickness of 12mm

(4) the press shaft is made of 45# round steel and the shaft is 68mm
