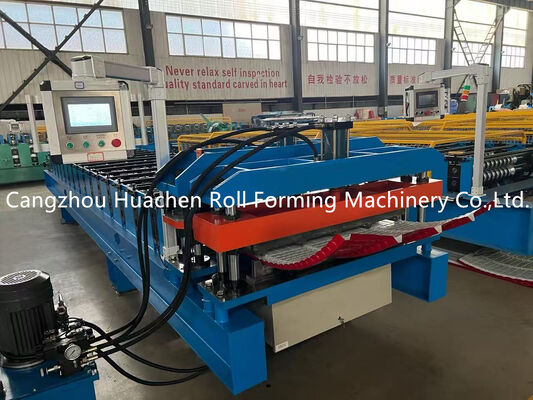

Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System

Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System

Large Image :  Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC30-250-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30 work days
Payment Terms: L/C,T/T
Supply Ability: 20 sets per month
Contact Now

Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System

Description
Material Tape: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1219mm Roller Stations: 15Stations
Roller &Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 15-20m/min Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases(Can Be Customized)
Highlight:

roof tile roll forming machine

,

roof panel roll forming machine

Colored Steel Roofing Sheet Roll Forming Machine
Corrugated Steel Sheet Making Machine
Machine Components
No. Name Unit Qty
1 Manual decoiler set 1
2 Main forming machine set 1
3 PLC control system Set 1
4 Hydraulic pump station set 1
5 Post cut set 1
6 Electric motor set 1
7 Output table set 1
Production Process
Uncoiling → Feeding material into machine → Roll forming → Measuring length → Auto cutting → Products receiving
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 0
Machine Details
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 1 Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 2
Main Technical Parameters
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1219mm
Roller Stations 15 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (Can be customized)
Component & Technical Parameters
5T Manual Decoiler
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 3
This part is used to support coil and make the coil rotate. Bear capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.
Feeding Table & Pre-Cutter
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 4
Guides coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 5
Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, and rust-resistant.
Hydraulic Pump Station
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 6
Drives the cutter for cutting operations. Uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.
Touch Screen Control Cabinet
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 7
Features automatic and manual modes. Unit length and quantity can be set via touchscreen. Simple and easy to operate. Electrical components: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.
Pressing Section & Cutter
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 8
Blade material is CR12 with high strength, excellent hardenability, and superior wear resistance.
Output Table
Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Spare Parts
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Packaging & Shipping
Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 9 Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 10 Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 11 Colored Steel Roofing Sheet Roll Forming Machine with 15-20m/min Speed, 45# Steel Quenching and Plating Rollers, and PLC Control System 12
Packaging Details
1. One 20ft container for loading one set machine with manual decoiler
2. Whole machine wiped with anti-rust oil, PLC controller covered by foam film
3. Spare parts and small parts packed in plastic tooling box
4. All components fixed by steel wire within container
Delivery Detail 45 days after receipt of buyer's deposit
Our Services
Installation & Training
  • If buyers visit our factory, we provide face-to-face installation and operation training
  • Without visiting, we provide user manual and instructional videos
  • On-site technician service available (board and lodging to be arranged by buyer)
After-Sales Service
  • One year guarantee for entire machine
  • 24-hour technical support via email or phone
  • Free repairs for any machine problems within one year
