Product Details:
|
| Producing Speed (m/min): | 8-10 | Hydraulic Station Power(KW): | 9 |
|---|---|---|---|
| Uncoiler Motor Power: | 2.2 KW | Total Power: | 21.2 KW |
| High Light: | sheet metal rolling equipment,roof tile roll forming machine |
||
CostPro panel lines
Today the Chinese manufactured panel roll formers are making most world’s steel fabricators dreams come true, it is no longer a non-affordable business by using many panel roll formers in workshop to produce in large quantity and a variety of different profiles.
However, the quality of Chinese panel roll formers are always on the a huge debate, and hundreds of different online offers make a decision even more difficult, as you may need to visit lots of different factories to find out the real quality they are making.
Now you don’t have to be worried that we offer you a balanced solution with decent quality make you business to another level, meanwhile a customized configuration make the price more transparent and affordable.
What we can offer is a versatility and meanwhile quality assurance for any panel machines from economic basic production speed to fast panel lines up to 50m/min:
We offer a range different panel roll formers for wall, roof, steel decks, step tiles &standing seam profiles
Brief introduction

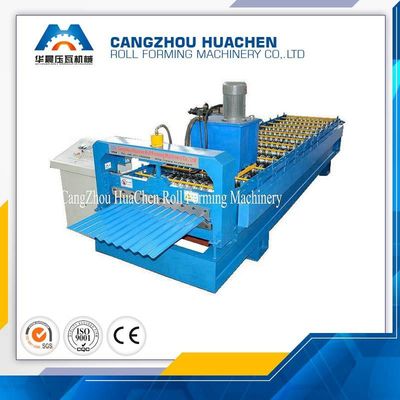

This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.
Technical Parameters
| NO | Item | Para | Memo | |
|
1
|
Suitable material | Type | Color steel sheet | |
| Thickness (mm) | 0.5-0.6 | |||
| Yield Strength (Mpa) | 230-300 | |||
| Width (mm) | 1200 | |||
| 2 | Producing Speed (m/min) | 8-10 | including cutting time | |
| 3 |
Forming main motor power(KW) |
7 | Depend on actual design | |
| 4 | Hydraulic station power(KW) | 9 | Depend on actual design | |
| 5 |
Uncoiler hydraulic motor power |
3 | Depend on actual design | |
| 6 | Uncoiler motor power | 2.2 | Depend on actual design | |
| 7 | Total power | 21.2 | Depend on actual design | |
| 8 | Power | AC380V,50Hz,3 Phase | According to customer | |
| 9 | Dimension (L×W×H, m) | 20×3×2 | Depend on actual design | |
Components
| Name | Model/Name | Quantity | Technical Description |
| 1. Decoiler system | Arm type automatic decoiler (With ultrasonice control) | 1set | Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm. |
| 2. Main forming system | Pre-shearing device | 1set |
1.Roller material:No.45 steel with surface hard chrome painted. 2. Roller shaft material: No.45 3. Roller inner supporting structure type: guide column 4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear 5.Cutting blade material Cr12 quenched treatment 6.Punching die material adopts No.45 steel with nitride treatment. |
| Feeding guide device | 1set | ||
| Film covering device | 1set | ||
| Roll forming system | 1set | ||
| Pressing system | 2set | ||
| Post-cutting device | 1set | ||
| Complete safety cover | 1set | ||
| 3. Output system | Support table | 2set | For supporting the finished plate |
| 4. Hydraulic system | 1set | Separated hydraulic station for the main machine and decoiler. | |
| 5. Electric control system | 1set |
1. PLC Control, encoder automatic cutting in length 2. Operation stage: Touch screen+ button 3. AC frequency for adjusting the speed |
|
Working process
Decoil →Guiding system →Roll forming →Punch to length→Cut to length →Output the finished products
CostPro panel lines
Today the Chinese manufactured panel roll formers are making most world’s steel fabricators dreams come true, it is no longer a non-affordable business by using many panel roll formers in workshop to produce in large quantity and a variety of different profiles.
However, the quality of Chinese panel roll formers are always on the a huge debate, and hundreds of different online offers make a decision even more difficult, as you may need to visit lots of different factories to find out the real quality they are making.
Now you don’t have to be worried that we offer you a balanced solution with decent quality make you business to another level, meanwhile a customized configuration make the price more transparent and affordable.
What we can offer is a versatility and meanwhile quality assurance for any panel machines from economic basic production speed to fast panel lines up to 50m/min:
We offer a range different panel roll formers for wall, roof, steel decks, step tiles &standing seam profiles
Brief introduction
This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.
Technical Parameters
| NO | Item | Para | Memo | |
|
1
|
Suitable material | Type | Color steel sheet | |
| Thickness (mm) | 0.5-0.6 | |||
| Yield Strength (Mpa) | 230-300 | |||
| Width (mm) | 1200 | |||
| 2 | Producing Speed (m/min) | 8-10 | including cutting time | |
| 3 |
Forming main motor power(KW) |
7 | Depend on actual design | |
| 4 | Hydraulic station power(KW) | 9 | Depend on actual design | |
| 5 |
Uncoiler hydraulic motor power |
3 | Depend on actual design | |
| 6 | Uncoiler motor power | 2.2 | Depend on actual design | |
| 7 | Total power | 21.2 | Depend on actual design | |
| 8 | Power | AC380V,50Hz,3 Phase | According to customer | |
| 9 | Dimension (L×W×H, m) | 20×3×2 | Depend on actual design | |
Components
| Name | Model/Name | Quantity | Technical Description |
| 1. Decoiler system | Arm type automatic decoiler (With ultrasonice control) | 1set | Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm. |
| 2. Main forming system | Pre-shearing device | 1set |
1.Roller material:No.45 steel with surface hard chrome painted. 2. Roller shaft material: No.45 3. Roller inner supporting structure type: guide column 4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear 5.Cutting blade material Cr12 quenched treatment 6.Punching die material adopts No.45 steel with nitride treatment. |
| Feeding guide device | 1set | ||
| Film covering device | 1set | ||
| Roll forming system | 1set | ||
| Pressing system | 2set | ||
| Post-cutting device | 1set | ||
| Complete safety cover | 1set | ||
| 3. Output system | Support table | 2set | For supporting the finished plate |
| 4. Hydraulic system | 1set | Separated hydraulic station for the main machine and decoiler. | |
| 5. Electric control system | 1set |
1. PLC Control, encoder automatic cutting in length 2. Operation stage: Touch screen+ button 3. AC frequency for adjusting the speed |
|
Working process
Decoil →Guiding system →Roll forming →Punch to length→Cut to length →Output the finished products
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2.After Sevice
3.a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
