5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

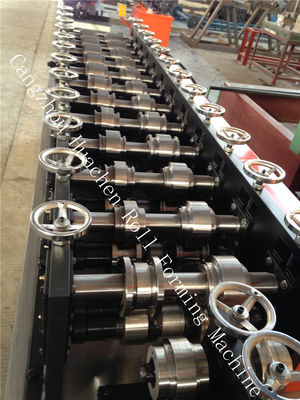

Large Image : 5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

Product Details:

Place of Origin:	Botou Hebei China
Brand Name:	HC
Certification:	ISO
Model Number:	HC-Stud

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main machine is nude,the computer control box is packed by carton box
Delivery Time:	30days
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability:	20 sets/month

Contact Now

5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

Description

Power:	5.5KW	Capacity:	45m/min
Punching:	Available	Feature:	Two In One
Usage:	Drywall System
Highlight:	5.5kw cold roll forming machine , keel framing cold roll forming machine , 5.5kw stud roll former

5.5Kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

NOTE: The C Stud and U Track can make on one machine. The quotation I offer is the high speed type, the speed can reach 60m/min.

A Technical specification

Control System	PLC Colored Touch Screen
Main Frame	18mm steel welding
Main Power	5.5kw
Power Supply	380V, 3-Phase,50Hz or any
Forming Speed	60m/min
Roll Station	10 stands
Shaft Diameter	42 mm
Feeding Thickness	0.3-0.8mm
Cutter Standard	GCr12
Roller Standard	45# Plating Cr

5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing 3

c channel roll forming machine

2. Technical parameters:

Technical parameters:

1	Name of commodity & specification	c stud roll forming machine
2	Main motor power	3kw, 3 phase
3	Hydraulic motor power	3kw
4	Hydraulic Pressure	10-12MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC Delta Inverter
7	Main Frame	300mm H-Beam
8	Backboard Thickness	14mm
9	Chain Size	20mm
10	Feeding Material	color steel coils
11	Feeding Thickness	0.3-1.2mm

12	Productivity	8-12m/min
13	Roll Station	11
14	Roller Diameter	70mm
15	Roller material	45# steel
16	Cutter material	Cr12 , quenched
17	Cr-Plating Size	0.05mm
18	Overall Size	3000×800×1000mm
19	Total Weight	2T
20	Components	Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set








21	Workflow	Manual decoiling----feeding and guiding----roll forming----cut to length----run out table

22	Package	nude in the container
23	Minimum order quantity	1 set
24	Payment terms	T/T(30% T/T pay in advance, the remaining 70% pay before ship)

25	Delivery time	30 working days later after receiving the deposit
All technical parameters can be changed, according to user's need.
