High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine

High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine
High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine
High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine

Large Image :  High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC28-240-1002
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1220mm Roller Stations: 12Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 15-20m/min Total Power: 5.5+5.5KW
Voltage: 380V, 50 Hz, 3 Phase(can Be Customized)
Highlight:

roof tile roll forming machine

,

roof panel roll forming machine

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting
Product Overview

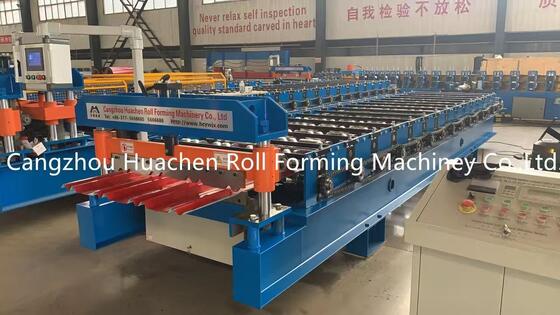

This high-performance roofing sheet roll forming machine is designed for precision forming of galvanized iron roofing panels. The system features fully automated PLC control and hydraulic cutting for superior production efficiency.

Key Features
  • Produces smooth, scratch-free galvanized iron roofing panels with excellent surface quality
  • Fully automated control system with programmable logic controller (PLC)
  • Adjustable sheet length and production quantity settings
  • Simple operation via control panel input for length and quantity parameters
  • Complete processing workflow: Decoiler → Rollforming → Cut to length
  • Comprehensive 1-year warranty with lifelong technical support
  • Custom machine design available based on customer specifications and profile drawings
Technical Specifications
Parameter Specification
Material Type PPGI/GI
Material Thickness 0.3-0.6mm
Material Width 1220mm
Roller Stations 12 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Shaft Diameter Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Production Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (customizable)
Component Specifications
5T Manual Decoiler High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine 0 Supports coil material in rotary operation. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable). Includes brake device to prevent impact damage during operation.
Feeding Table & Pre-Cutter High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine 1 Guides coil into correct position for roll forming. Includes hand-pull cutting device for easy pre-cutting when changing material color or thickness.
Shaft & Roller Assembly High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine 2 Constructed from 45# steel with quenching and plating treatment. Provides smooth, hard, rust-resistant rollers that prevent surface scratching during operation.
Hydraulic Pump Station High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine 3 Powers the cutting mechanism. Uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to maintain optimal oil temperature. Solenoid valve brand: Huade.
Touch Screen Control Cabinet High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine 4 Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen interface. Electrical components: VFD (Delta), circuit breaker (Delixi), contactor (Delixi), relay (Xinling), PLC (Delta), transformer (Delixi).

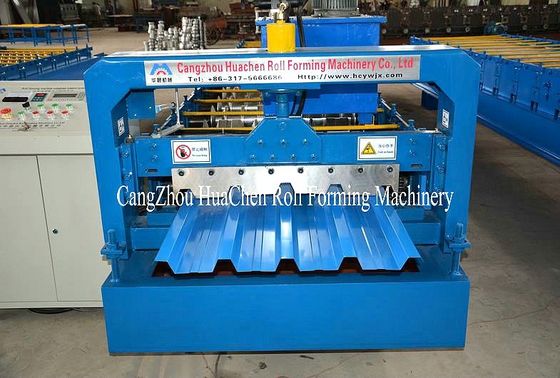

Pressing Section & Cutter High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine 5 Blade material: CR12 steel with high strength, excellent hardenability, and superior wear resistance.
Output Table Collects finished products. Equipped with rollers to facilitate product forwarding without surface damage.
Included Spare Parts

Chains: 2 Sets

Solenoid Valve: 1 Set

Travel Switch: 2 Sets

Open-End Wrenches: 2 Sets

Hexagon Wrench: 2 Sets

Counter: 1 Set

Wrench: 2 Sets

Oil Seals: 1 Set

Reference Images
High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine 6 High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine 7 High Speed 15-20m/min Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Roofing Sheet Roll Forming Machine 8
Our Advantages
  • High Quality Manufacturing
  • Competitive Pricing
  • Comprehensive After-Sales Service
  • 1 Year Warranty Coverage
  • Over 10 Years Industry Experience
