Home /Products/Roofing Sheet Roll Forming Machine/Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power

Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power

1set
MOQ
Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power
Features Gallery Product Description Request A Quote
Features
Specifications
Material Type: PPGI/GI
Material Thickness: 0.3-0.6mm
Material Width: 1220mm
Roller Stations: 15Stations
Roller & Shaft Material: 45# Steel Quenching And Plating
Diameter Of Shaft: Φ70mm
Cutter Material: CR12
Drive Type: Chain Drive
Speed: 15m/min
Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases(can Be Customized)
Highlight:

roof tile roll forming machine

,

roof panel roll forming machine
Basic Infomation
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC30-250-1000
Payment & Shipping Terms
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Product Description

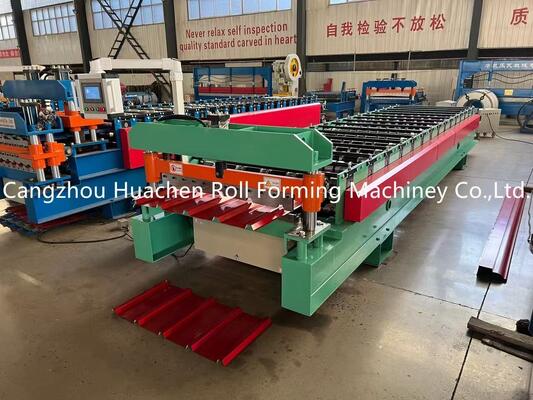

Galvanized Roofing Sheet Roll Forming Machine

Durable roll forming equipment for high-quality galvanized roofing sheet production.

Applications

Roof panels manufactured by this equipment feature high strength, durability, and smooth beautiful appearance with uniform lacquer veins. Widely used in steel-structured buildings including large-scale warehouses, stadiums, shopping malls, trade markets, holiday villages, sanatoriums, hotels, villas, residences, and various types of greenhouses. Equipment can be custom-designed and manufactured to meet specific customer requirements.

Production Process Flow

Decoiling → Feeding the steel sheet → Guiding → Roll forming → Cut to length → Products stacking → Move out products lengthways

Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1220mm
Roller Stations 15 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V, 50HZ, 3 Phase (customizable)
Components & Technical Parameters
Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power 0
5T Manual Decoiler

This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power 1
Feeding Table & Pre-Cutter

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power 2

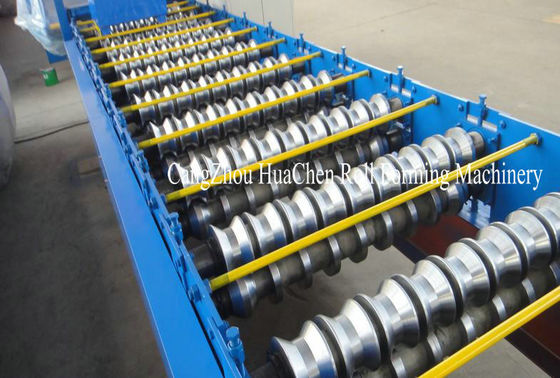

Shaft & Roller

Material: 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power 3
Hydraulic Pump Station

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues during operation. Solenoid valve brand: Huade.

Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power 4
Touch Screen Control Cabinet

Features automatic and manual operation modes. Allows setting of unit length and quantity on touchscreen. Simple and easy to operate system. Electrical components: VFD (Delta), Circuit breaker (Delixi), Contactor (Delixi), Relay (Xinling), PLC (Delta), Transformer (Delixi).

Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power 5
Pressing Section & Cutter

Blade material: CR12. Features high strength, excellent hardenability, and superior wear resistance.

Output Table

Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Spare Parts
Component Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Main Technical Features
  • Independent guide post supporting wall plate with internal transmission chain; rollers treated with mirror polishing
  • Sheet pre-cutting equipment to minimize raw material waste
  • Procedure control and encoder length measurement system
  • Automated procedure control stacher for automatic stacking, counting, and product removal
Product Images
Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power 6 Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power 7 Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power 8
