Product Details:
|
| Color: | Blue | Type: | Automatic |
|---|---|---|---|
| Control System: | PLC Control | Cutting Method: | Fly Saw Cutting |
| Speed: | 8-10m/min | ||
| Highlight: | roll forming machinery,door frame roll forming machine |
||

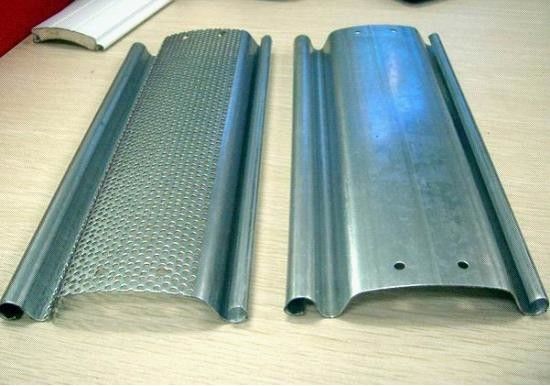

0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed
Roller Shutter Door Forming Machine introduction
General Description
Roller shutter door forming machine is able to produce rolling fire doors, storm doors, rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, insulated fire doors and other doors.
This kind of machine is provided with PU injection or without PU injection.
We can customize the machine if you have special requirements. We promise our product quality is high and the price is competitive.
Application:
Roller shutter forming machine is widely used for producing products used in industrial and commercial fields, retail areas, airports, hotels, institutions, malls and shopping centers. It is designed especially for manufacturing dock doors, distribution outlets, food concession stands and other panels.
Features:
1. Roller shutter door forming machine is configured with domestic brand or Italy brand PU online foaming facility.
2. It has double head uncoiler help to increase coil loading efficiency.
3. The straightening device can be adjusted to decrease the twist or curve distortion caused in process of roll forming.
4. The sufficient rolling stations guarantee a perfect profile section.
5. Roller shutter door forming machine adopts PLC and inverter controller.
6. Non-stop shearing adopted can increase working efficiency.
Technical Specifications for Roller Shutter Door Forming Machine
1. PU injected roll shutter door machine
1.1 Steel coil thickness: 0.3-0.5mm
1.2 Steel coil width: 117-310mm
1.3 Rolling stations: 41
1.4 Main motor power: 11KW
1.5 Total weight: approximately 12 Ton
1.6 Working speed: 20-28m / min
Parameter of Single sheet roll shutter door machine
| NO. | Item | Parameter | Remark | |
| 1 | Suitable material | Type | Galvanized steel | - |
| Thickness (mm) | 1.0 | - | ||
| Yield Strength (Mpa) | 450-550 | - | ||
| Width (mm) | 120/145/157 | - | ||
| 2 | Forming Speed (m/min) | About 20-25 | exclude cutting time | |
| 3 | Forming main motor power(KW) | 3*6 | Depend on final design | |
| 4 | Main machine Hydraulic station power(KW) | 5.5 | Depend on final design | |
| 5 | Total power | 23.5 | Depend on final design | |
| 6 | Power | AC415V, 50Hz, 3 Phase | As per customer | |
| 7 | Dimension (L×W×H , m) | 20×3×1.5 | Depend on final design | |
