333mm Gutter Downspout Machine Pipe Diameter 100mm

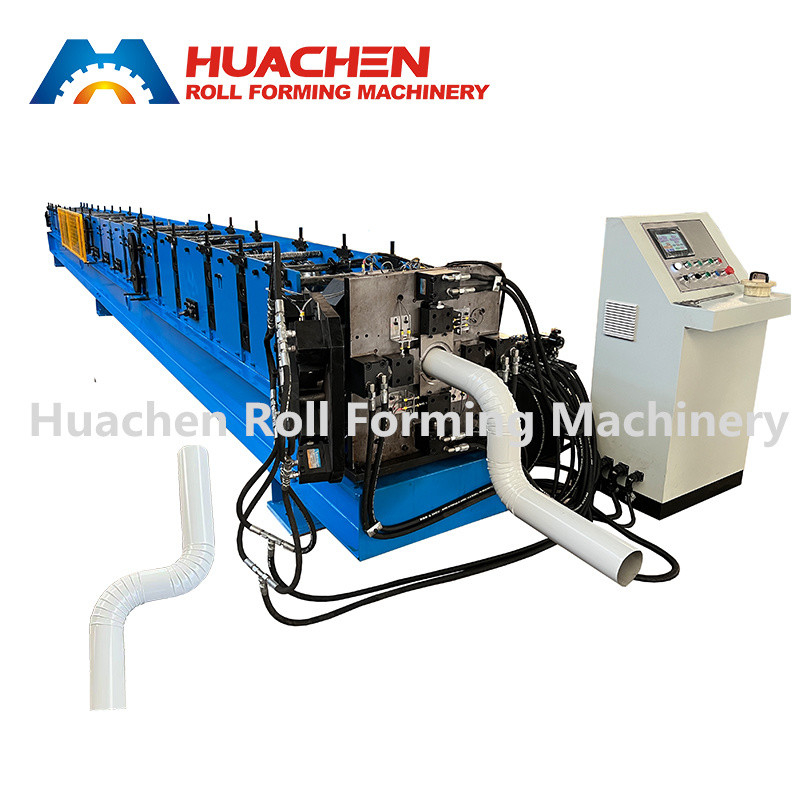

Large Image : 333mm Gutter Downspout Machine Pipe Diameter 100mm

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	HC100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Main machine is nude, the computer control box is packed by carton box.
Delivery Time:	30work days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

333mm Gutter Downspout Machine Pipe Diameter 100mm

Description

MaterialType:	PPGI/GI/Aluminum	MaterialThickne:	0.4-0.5mm
MaterialWidth:	100mm	Roller Station:	18Stations
Roller & Shaft Material:	45# Steel Quenching And Plating	Cutter Material:	CR12
Drive Type:	Chain Drive	Maximum Forming Speed:	2-15m/min
Control System:	PLC Control	Total Power:	7.5+5.5KW
Voltage:	380v 50Hz 3phases

Main Technical Parameters

Material	Type	GI/PPGI
	Thickness	0.4mm - 0.5mm
	Width	333mm
Roller Station		18Stations
Roller & Shaft Material		45# Steel with Chrome Treatment
Diameter of Shaft		Φ70mm
Cutter Material		CR12
Cutting Method		Hydraulic Cutting
Drive Type		Chain Drive
Maximum Forming Speed		10-15m/min
Control System		PLC Control
Total Power		7.5+5.5KW
Voltage		380V 50Hz 3Phases
Seaming Method		The seam to be folded inwards.

Component & Technical Parameters

Manual Decoiler

This part is used to support Coil.

And make the coil in a rotary way.

Bearing capacity: 3T

Inner diameter: 470-530mm

(adjustable according to demand)

Material is 45# Steel with Chrome Treatment.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.

Hydraulic Pump Station

It use 46# hydraulic oil.

The purpose of this pumping station is to control the cutter to start the cutting work.

Control Cabinet

The control cabinet has two modes, automatic and manual.

The unit length of the targeted sheet can be set in the control cabinet.

The system is simple and easy to operate

Cutter

The material of blade is CR12.

With high strength, better hardenability and good wear resistance.
