Product Description

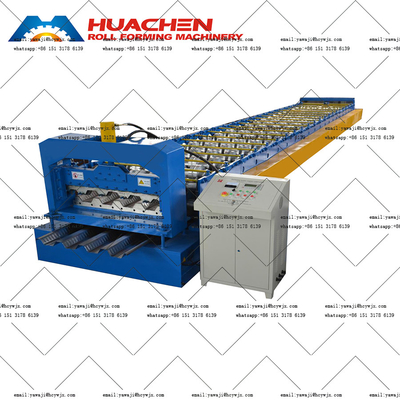

The floor deck forming machine is an advanced equipment specially used for producing floor decks. It integrates advanced technologies in many fields such as mechanical manufacturing and automatic control. It can transform metal coils into high-quality floor decks with specific shapes and sizes through a series of precision processing.
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.8-1.2mm |
| Width |
1220mm |
| Roller Stations |
24Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ90mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15m/min |
| Control System |
PLC Control |
| Total Power |
11+11+7.5KW |
| Voltage |
380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
his part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
The primary function of the uncoiler is to unwind these tightly wound metal sheets smoothly and steadily.
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
In the cutting process, the hydraulic pump station pushes the cutting tool to move quickly and forcefully, and accurately cuts the formed floor decking according to the set length.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
In terms of production process monitoring, the touch screen control cabinet provides real-time feedback on the operating status of the equipment. Information such as the operating speed of each component, the pressure value of the hydraulic pump station, the operating current of the motor, etc. are clearly displayed on the screen.
Output Table
This part is used to collect the formed products.
The bracket is equipped with rollers to facilitate the product forwarding without being scratched.
Feeding Table
The positioning accuracy of the feeding table is extremely high, which can ensure the accurate position of the plate when it enters the forming area, thus ensuring that the final formed floor deck meets strict standards in size and shape.
Guide the coil come into the correct position and passed to the roll forming machine.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
During the leveling stage, the leveling rollers apply appropriate pressure to repeatedly roll over the uneven plates to eliminate surface defects such as wavy shapes and bends, allowing the plates to reach the flatness required for subsequent forming.
Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
The quality and performance of the cutter are directly related to the cutting surface quality of the floor decking.
