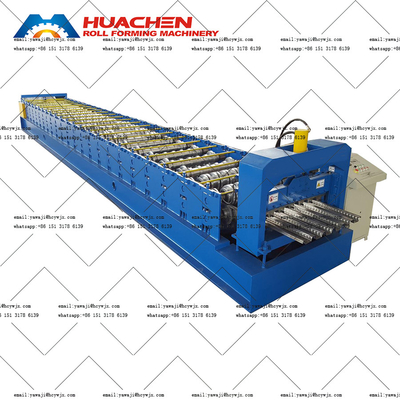

Scaffold Walk Board Steel Floor Deck Roll Forming Machine Foot Panel Sheet Scaffolding Plank Making Machine

Product Description

It can produce two different specifications of tiles at the same time, such as the common 840 and 900 types. The output is nearly doubled compared with the traditional single-layer tile pressing machine, which can effectively shorten the production cycle and speed up the capital recovery.

Main Technical Parameters

Working Flow

Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

The uncoiler plays an indispensable role in the production process of the floor decking forming machine. In the production process of floor decking, metal sheets are usually supplied in the form of coils. The primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.

Hydraulic Pump Station

The purpose of this pump station is to drive the cutter to start cutting works.

The hydraulic tank use 46# hydraulic oil.

Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.

Touch Screen Control Cabinet

In terms of operational convenience, it is presented in an intuitive graphical interface. Operators do not need complex training and can easily complete various operations by touching the screen. For example, to set the production specifications of the floor decking, including length, waveform parameters, etc., just click on the screen to enter the corresponding value, and the parameter adjustment can be completed quickly.

Output Table

This part is used to collect the formed products.

The bracket is equipped with rollers to facilitate the product forwarding without being scratched.

Feeding Table

In the conveying process, the feeding table accurately controls the conveying speed and position of the plate, and works closely with the subsequent leveling device, forming equipment, etc. It feeds the plate into the leveling process at a stable speed, ensuring that the plate is in a good conveying state before being leveled, laying the foundation for high-quality leveling operations.

Shaft & Roller

The shaft is connected to a power source such as a motor, which efficiently transmits power to the roller, allowing the roller to rotate at a predetermined speed and direction, providing continuous power for the processing of the plate.

Cutter

The material of blade is CR12.

With high strength, better hardenability and good wear resistance.

In a high-speed forming machine, the cutter can quickly complete the cutting action, matching the forming speed of the sheet, ensuring the continuity of the entire production process and avoiding production stagnation caused by cutting delays.
