Product Description

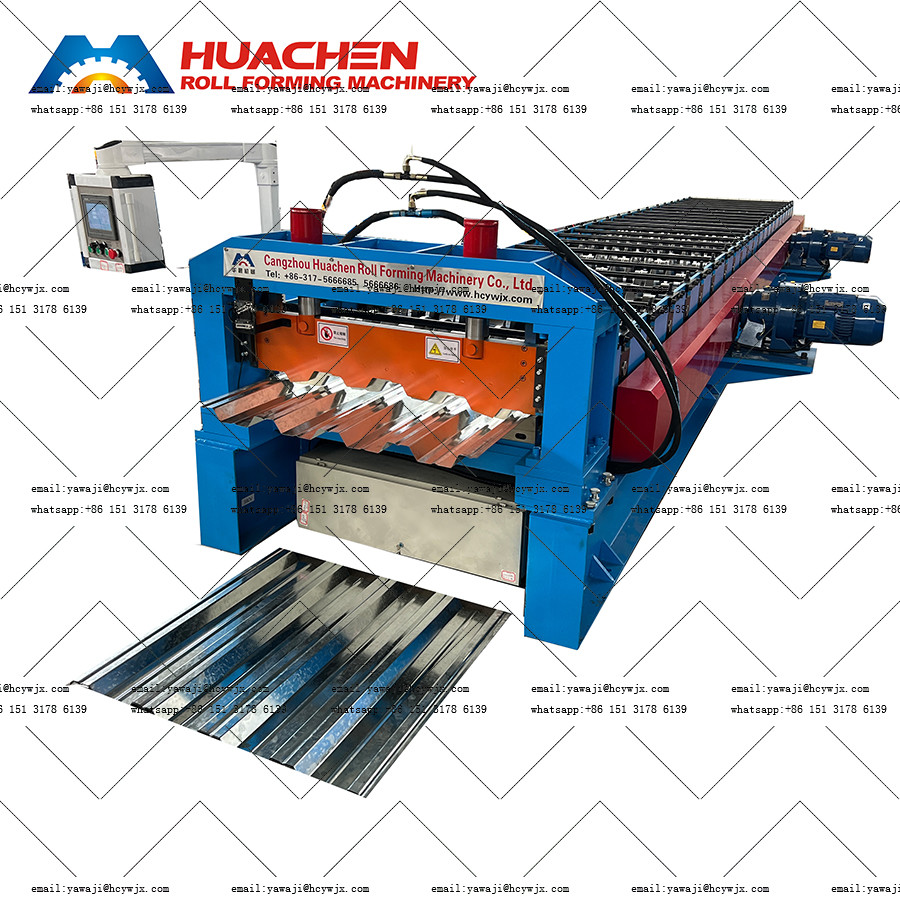

The main structure of the equipment is made of high-strength steel, and after careful design and strict quality inspection, it has good rigidity and stability.
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.8-1.2mm |
| Width |
1000mm |
| Roller Stations |
25Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ90mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15m/min |
| Control System |
PLC Control |
| Total Power |
11+11+7.5KW |
| Voltage |
380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
his part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Output Table
This part is used to collect the formed products.
The bracket is equipped with rollers to facilitate the product forwarding without being scratched.
Feeding Table
Guide the coil come into the correct position and passed to the roll forming machine.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
During long-term, high-intensity production operations, it can maintain a stable operating state, reduce the occurrence of equipment failures, reduce maintenance costs, and improve production continuity.
