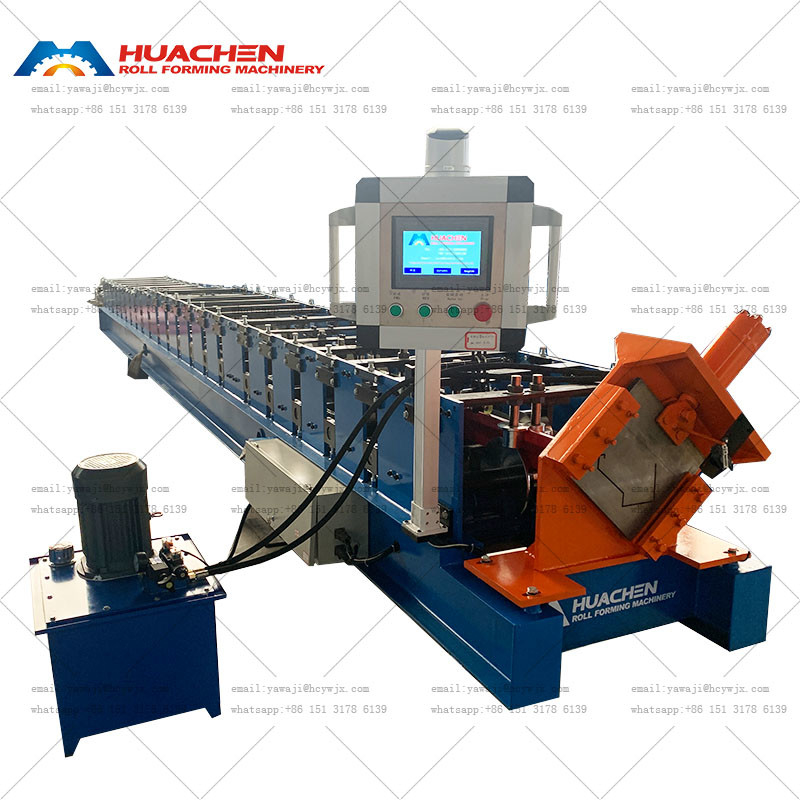

15m/min Gutter Roll Forming Machine For PPIG IG Aluminum

Product Description

Gutter roll forming machines are essential tools in the manufacturing of seamless gutters and other metal products. These machines utilize a combination of advanced technology and engineering principles to create high-quality, precise components. Here’s a comprehensive overview of the technology behind gutter roll forming machines.

1. Basic Principles of Roll Forming

Roll forming is a continuous bending operation in which a long strip of metal (usually coiled steel) is passed through a series of rollers. Each set of rollers shapes the material progressively until the desired cross-sectional profile is achieved.

2. Machine Components

Coil Stand: Holds the metal coil in place and feeds it into the machine.

Feed Mechanism: Controls the speed and precision at which the metal is fed into the rollers.

Rollers: Shaped to create the specific profile of the gutter. The rollers are typically made of hardened steel to withstand wear.

Cut-off Mechanism: Cuts the formed material into desired lengths after it has passed through the rollers.

Control System: Modern machines use PLCs (Programmable Logic Controllers) for precise control of the forming process, including speed, temperature, and length.

3. Process Overview

Material Loading: The metal coil is loaded onto the coil stand.

Shearing: The strip is cut to the required length.

Roll Forming: The cut strip passes through the rollers, which gradually shape it into the desired profile.

Cutting: After forming, the material is cut to final lengths.

Quality Control: The finished gutters are inspected for dimensional accuracy and surface quality.
