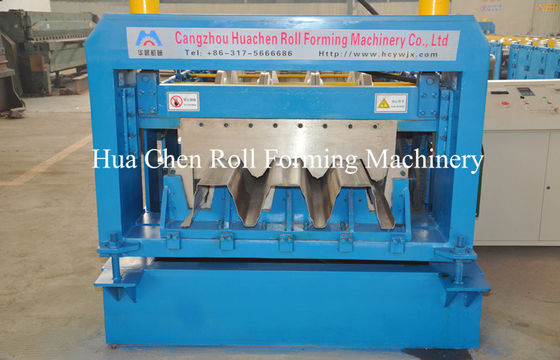

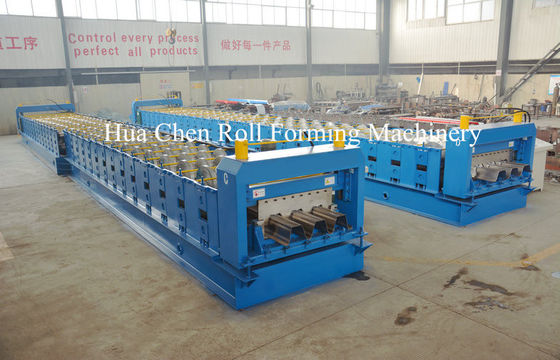

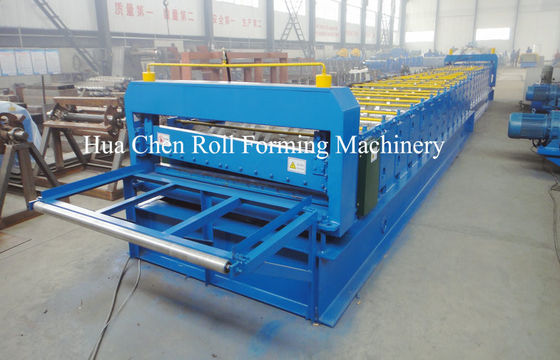

Floor Deck Roll Forming Machine

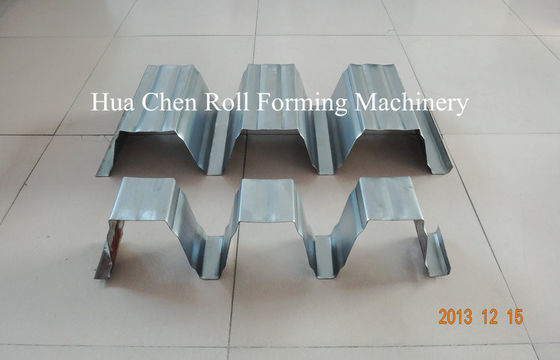

Floor deck forming machine is galvanized steel as a raw material, after rolling cold-formed technology, die forming, mainly used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes, mainly used to make permanent formwork composite slab or concrete slab.
Description:
Floor Deck Roll Forming Machine Main parameter
|
No. |
Main parameter of Floor Deck Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1500mm |
|
3 |
Rollers |
28 rows |
|
4 |
Dimensions |
12700*1.85*1.61m |
|
5 |
Power |
33+11.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
1.5mm |
|
7 |
Productivity |
15m/min |
|
8 |
Diameter of the roller |
Φ100mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
|
Manual Un-coiler
|
◊ Max Capacity: 5000kgs ◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
|
|
Leveling Device
|
◊ Ensure the material level and straight
◊ The width can be adjusted |
|
Auto Main Forming System
|
◊ Width: According to Drawings
◊ Height: According to Drawings ◊ Thickness of sheet: According to Drawings ◊ Material: GI sheet coil or Colored sheet coil ◊ Motor Power: 18.5 kw forming system ◊ Roller material: C45 steel, chrome coated ◊ Diameter of shaft: 110 mm ◊ Transmission: by chain and gear ◊ Measuring accuracy: +/- 0.5 mm/M
◊ Base Frame: 400 H steel welded
◊ The machine base is assembled and welded by high quality steel
◊ Total Length of Machine: 11.8 m
|
|
Hydraulic Cutting Device
|
◊ Cutting way: pause to cut.
◊ Blade Material: Cr12 ◊ Hydraulic power: 4 kw hydraulic system. ◊ Hydraulic Station Structure: 300mm steel welded. Four guide columns. |
|
Electrical System
|
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement) |
|
Run-out Table
|
◊ Frame: 8# steel groove welded
◊ Roller type. ◊ Quantity: 1 pc |
Application
This type of sheet can be widely used in plant, house, storage and simple steel roof. It has advantage of pretty appearance, durable using and so on.
> Warranty: 2 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it’s not free.
> We will provide the technical support for the whole life of the equipment.
