Galvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long Lifespan

China Galvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long Lifespan supplier

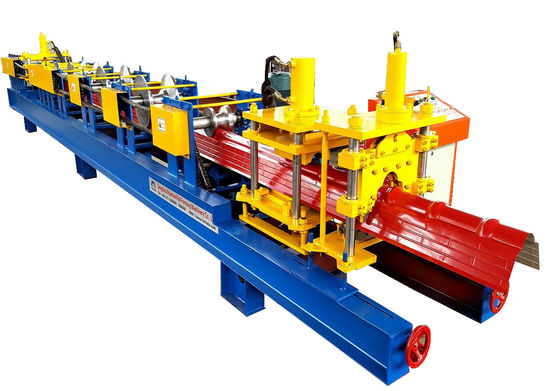

Large Image :  Galvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long Lifespan

Product Details:

Place of Origin: China
Brand Name: HC
Certification: ISO CE
Model Number: HC280

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD15000-30000
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Material: PPGi GI Capacity: 2-4m/min
Machine Weight: 3.1T Rollers: 45# Steel
Type: Roll Forming Machine Warranty: 12 Month
Technical Support: Whole Life

Strong Ridge Cap Forming Machine,roll forming machine

The ridge cap roll forming machine can roll formed metal ridge which is mostly used with colorful roofing tile sheets. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface. We can design the machine according to your specification and profile drawing. This product is widely used in many kinds of industrial factory and civilian buildings. It has advantages of its pretty appearance and durability.



Machine Configuration:

Decoiler, Feeding Applicator, Roll Forming Machine, Computer Control System, Hydraulic Cutting,Output Table



Working Flow:

Decoiler—Feeding Applicator—Roll Forming Machine—Computer Contol System— Hydraulic Cutting—Output Table

color coated steel sheet ridge cap roll forming machine/ tile press for ridge cap



Product Description

Specification:

Item NO Description Offered specification
1.0 Roll forming machine Roof sheet
1.1 Rolling speed 15-20m/min
1.2 Rolling thickness 0.25-0.8mm
1.3 Raw material Galvanized steel sheet & pre-painted steel sheet up to 550mpa
1.4 Control system PLC & Transducer(Mitsubishi )
1.6 dimension 7000×1500×1500(mm)
1.7 The material width 6000mm
1.8 Effective width 312/415mm
1.9 Roller stations 25 stations
1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter φ75mm ,material is 45# forge steel
1.12 Transmission By chain
1.13 Material of chain 45# forged steel with frequency quenching, 16A
1.14 Main motor power 7.5kw
1.15 Hydraulic station power 3.0kw
1.16 Hydraulic pressure 12Mpa
1.17 Material of cutting Cr12Mov with quench HRC58-62°
1.18 Tolerance 10m+-2mm
1.19 Electric source 415 volts, 3 phase and 50 Hz or at buyer’s request
1.20 Frame 350mmX175mm H type steel
1.21 Color of the machine According customer’s requirements dark green
1.22 Container need

1 x40 feet( machine will be fixed by string in the container)



Galvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long LifespanGalvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long LifespanGalvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long LifespanGalvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long LifespanGalvanized Aluminum Steel Cold Roll Forming Equipment , Metal Forming Machines Long Lifespan

FAQ
Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
