Single Side Adjustable Small C Purlin Roll Forming Machine with PLC Frequency Control System

China Single Side Adjustable Small C Purlin Roll Forming Machine with PLC Frequency Control System supplier

Large Image :  Single Side Adjustable Small C Purlin Roll Forming Machine with PLC Frequency Control System

Product Details:

Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC90*40

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Type: Single Side Adjustable Small C Purlin Roll Forming Machine Rollers: 14
Roller Material: No.45 Steel Warranty: 12 Month


Single Side Adjustable Small C Purlin Roll Forming Machine with PLC Frequency Control System



Specifications of C Channel Roll Forming Machine



Coil MaterialCoilGalvanised, Carbon steel
Coil thickness1.5-3.0mm
Coil widthCustom-made
Yield strength250Mpa
Decoiler ( Uncoiler )Weight capacity5 Ton (Custom-made )
Coil widthMax. 600mm
I.D460-560mm
O.DMax. 1400mm
Roll Forming MachineForming stations14 stations (Custom-made)
Roller materialGCr15 Steel
Diameter of shaft76mm
Shaft materailHigh grade 45# steel
Drive typeGimbal Gearbox Drive
Forming speed0-15m/min
Main power15KW
PunchingPunching TypeHydraulic punching
Punching dieCr12Mov
CuttingCutting typeHydraulic cutting
Cutting power11KW
Blade materialCr12Mov with quench treatment
Cutting Tolerance10m+/-1.5mm
EncoderOMRON Brand
Electrical controlPLCPANASONIC Brand
InverterYASKAWA Brand
Operation typeTouch screen & Button
Hydraulic StationHydraulic StationFamous Chinese brand
Hydraulic Power11KW
Runout TableTable TypeSimple nonpower type
FunctionTo support the finished purlins

Main Components


  • Decoiler --------------------------------------------------------------------------- 1 Unit
  • Feeding & Leveling ------------------------------------------------------------- 1 Unit
  • Main roll forming machine ----------------------------------------------------- 1 Unit
  • Hydraulic punching device ---------------------------------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------------------------------- 1 Unit
  • Hydraulic Station ---------------------------------------------------------------- 1 Unit
  • PLC computer control ---------------------------------------------------------- 1 Unit
  • Output table ---------------------------------------------------------------------- 1 Unit

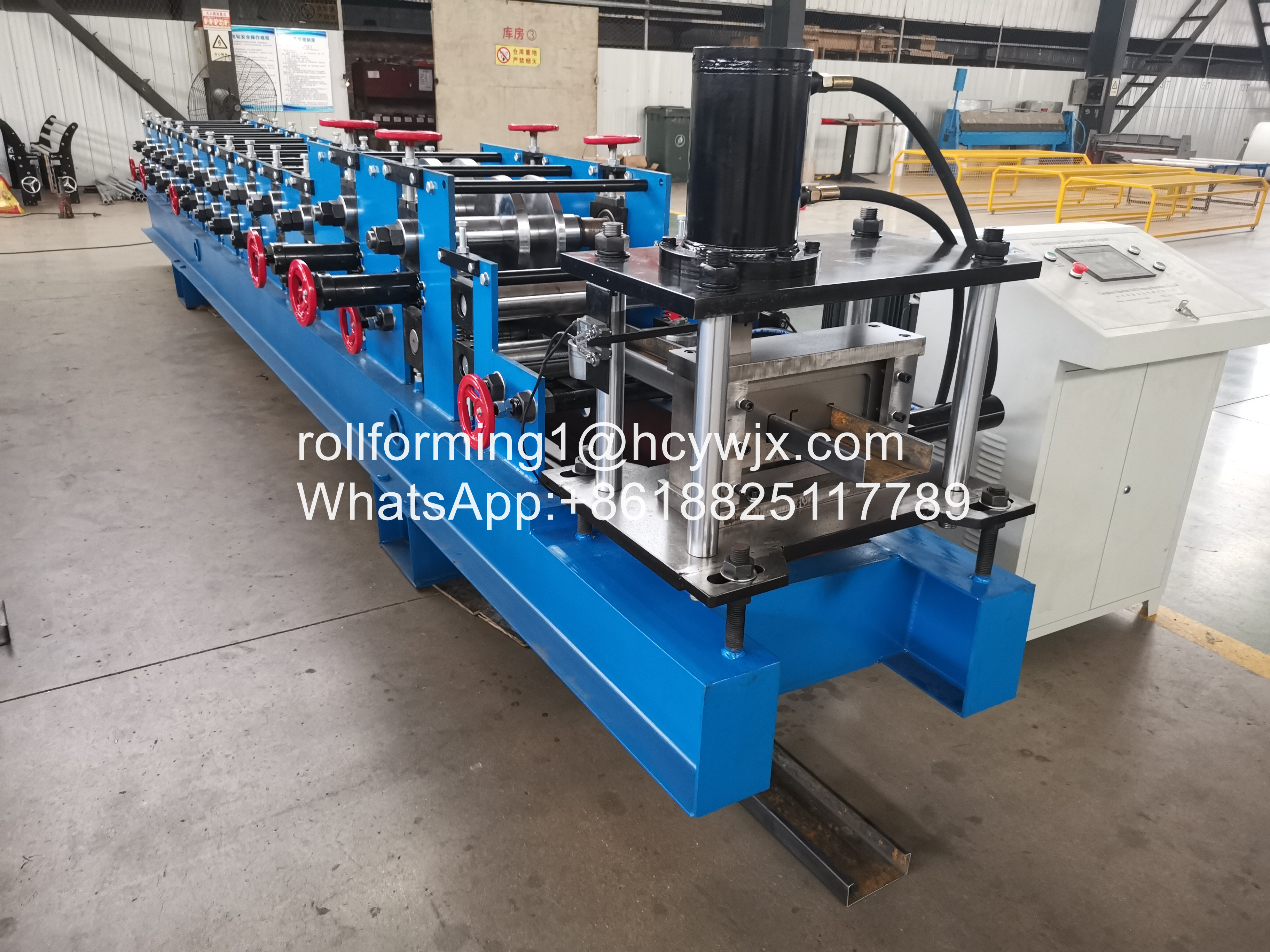

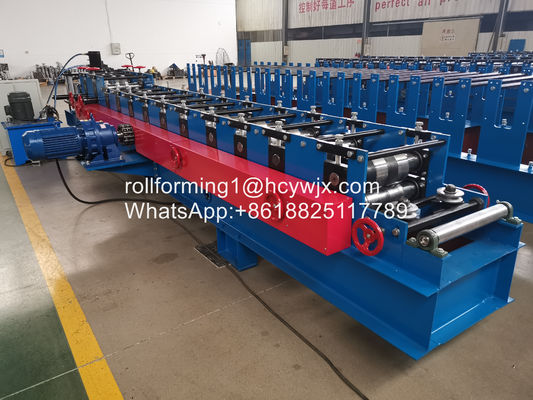

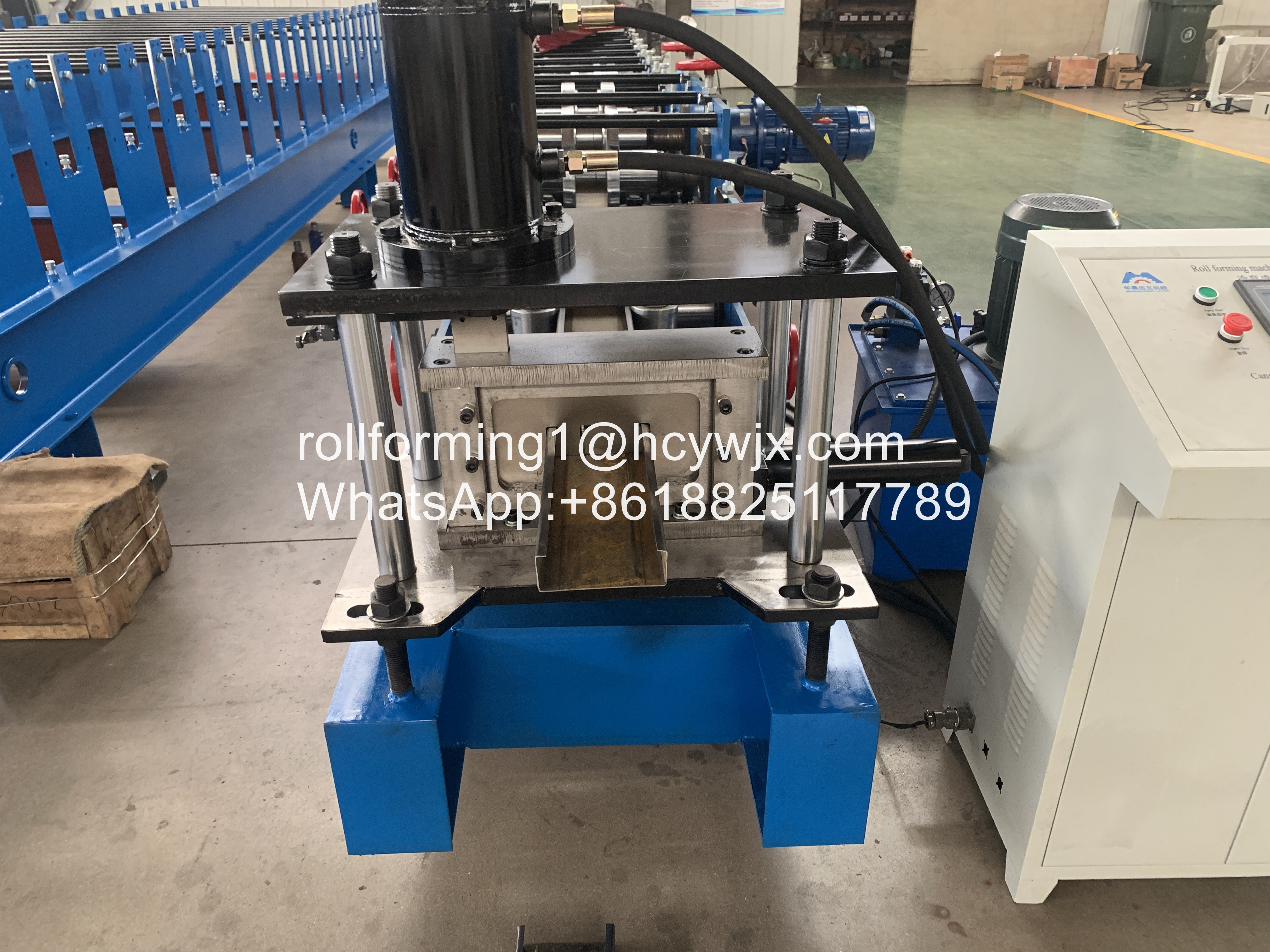

Single Side Adjustable Small C Purlin Roll Forming Machine with PLC Frequency Control SystemSingle Side Adjustable Small C Purlin Roll Forming Machine with PLC Frequency Control SystemSingle Side Adjustable Small C Purlin Roll Forming Machine with PLC Frequency Control System





Our Advantage


  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
