Metal Interchangeable C Purlin Roll Forming Machine , Roll Form Machine 1.5-3.0mm Thickness

Certification
Good quality Roofing Sheet Roll Forming Machine for sales
Good quality Roofing Sheet Roll Forming Machine for sales
Machine easy to use. The boss is very nice.

—— Mr.Angolon From Europe

This is a good manufacturer, a good English communicater, and I like your machines. It is good quality, and pretty!

—— Mr.Mark From Africa

Nice supplier! I like your swift delivery and quick production cycle, will keep in touch with you guys.

—— Mr.Jack From America

I'm Online Chat Now

Metal Interchangeable C Purlin Roll Forming Machine , Roll Form Machine 1.5-3.0mm Thickness

China Metal Interchangeable C Purlin Roll Forming Machine , Roll Form Machine 1.5-3.0mm Thickness supplier

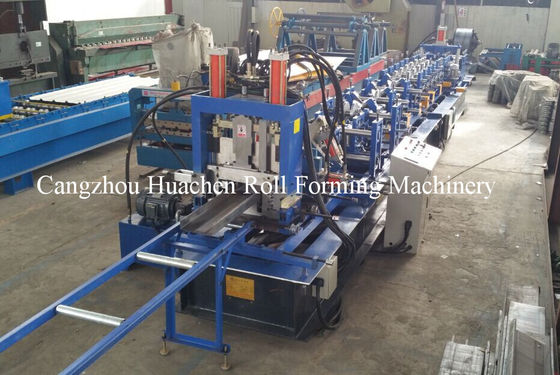

Large Image :  Metal Interchangeable C Purlin Roll Forming Machine , Roll Form Machine 1.5-3.0mm Thickness

Product Details:

Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC80-300

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 15000-49000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description



Metal Interchangeable C Purlin Roll Forming Machine , Roll Form Machine 1.5-3.0mm Thickness

Introduction:

The C and Z purline forming line has advantage of automatic fixed-length cutting automatic punching. Besides, its installation is convenient having high level automation. The purline produced by this machine has the feature of bending and pressing resistance with high level glancing flatness. This kind of products is mainly used for large and medium industrial or civil architecture including factories, storage locomotive sheds and aero plane sheds stadium, exhibition and Movie Theater and free market. Cold forming sectional steel is main material to produce light section steel structure produced by steel plate and cold forming sectional steel. The machine can produce variety kinds of profiles and cold rolled steels with regular thickness, but in complex section shape. Those products can not produced by general heat rolling method.

The products of C or Z shape purline forming machine have excellent anti-bending property and are
easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale
construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Metal Interchangeable C Purlin Roll Forming Machine , Roll Form Machine 1.5-3.0mm ThicknessMetal Interchangeable C Purlin Roll Forming Machine , Roll Form Machine 1.5-3.0mm ThicknessMetal Interchangeable C Purlin Roll Forming Machine , Roll Form Machine 1.5-3.0mm Thickness



Main specification:

MATERIAL:

Suitable Coil Thickness 2.0-3.0 mm
Suitable Raw Materials Q235 A

MACHINE COMPONENTS:

Manual Un-coiler 1 set
Leveling Device 1 set
Roll-Forming M/C 1 set
Hydraulic cutting (with four cutting mould) 1 set
PLC Control System 1 set
Product rack (un-powered) 1 set







Working Flow:
Decoiling the Sheet—Sheet Guiding —Coil Strip Leveling—Roll Forming—Punching for
horizontal hole—Punching for vertical hole —Measure Length —Cutting the Panel—Panels to the Supporter.



Advantage:

1. We use Automatic control software to manage productive information.

2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.

3. High performance in operation, maintenance, and debugging. Easy to load and unload.

4. First in quality

5. First in time

6. First in price

7. First in services
