PLC Control System Roof Sheet Making Machine Corrugated Iron Rolling Machine

PLC Control System Roof Sheet Making Machine Corrugated Iron Rolling Machine
PLC Control System Roof Sheet Making Machine Corrugated Iron Rolling Machine

Large Image :  PLC Control System Roof Sheet Making Machine Corrugated Iron Rolling Machine

Product Details:
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC37
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

PLC Control System Roof Sheet Making Machine Corrugated Iron Rolling Machine

Description
Type: Electric Control Standing Seam Metal Roof Machine Rollers: 17
Roller Material: No.45 Steel Warranty: 12 Month
High Light:

roof tile roll forming machine

,

roof panel roll forming machine


Roof Sheet Making Machine Corrugated Iron Rolling Machine Application

General Description

Roofing sheet roll forming machine is also named as roofing sheet making machine or roof panel machine. Roofing sheet roll forming machine is consists of uncoiller, guiding device, roll forming unit, stop-to-cut device, run-out table, hydraulic system and electrical controller and is extensively used in building steel-structure large-scale warehouses, plants, supermarkets, shopping malls, trade markets, hotels, villas, residences and different kinds of greenhouses.

Our roof panel machine is designed by professional team with rich experience in machinery industry. We adopt the most advanced technology and high-quality materials to manufacture the best machine. With high efficiency, high flexibility, good performance and low production cost, it is a good choice for manufacturing cold rolled products widely used in the construction. The roofing machine can be customized according to your special needs. We promise to offer products of high quality but with reasonable price.

Technical Specifications for Roofing Sheet Roll Forming Machine

Name Model/Name Quantity Technical Description
1.Decoiler 10T automatic decoiler (JK10-1250AM) 1set Cantilever-type, hydraulic expanding, electrical motor releases the sheet.
2. Main forming system Pre-slitting device 1set 1.Roller material: No.45 steel, surface painted with hard chrome.
2. Roller shaft material: No.45 steel with thermal refining.
3. Roller supporting type: column.
4. Electrical motor driving, back/forward rollers driven by chain, part of upper/lower rollers driven by gear.
5. Cutting blade material Cr12 quenched treatment.
Feed guiding device 1set
Lubrication device 1set
Filming device 1set
Roll forming system 1set
Complete mobile safety cover 1set
Cutting system 1set
3. Output system Stacking system 1set Optional
4. Hydraulic system 1set Decoiler adopts separated hydraulic station.
5. Electric control system 1set 1.PLC Control, encoder automatic cut to length PLC
2.Operation: Touch screen+ button

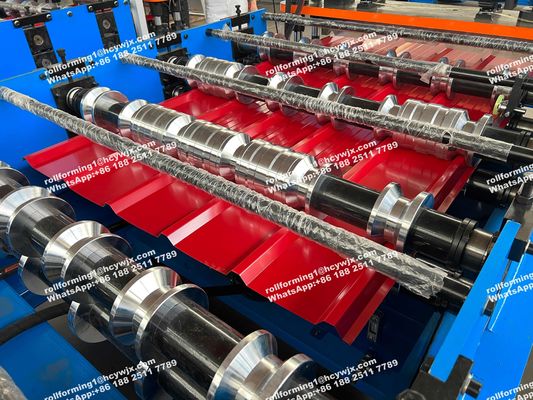

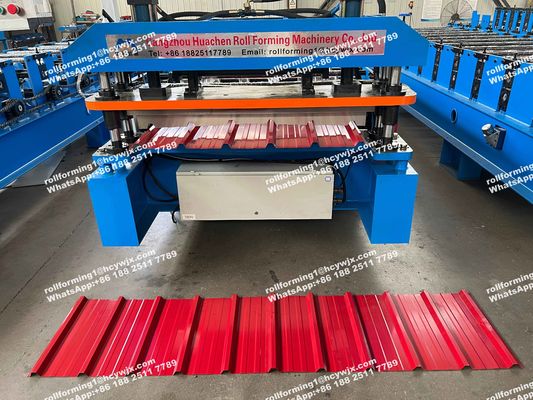

Machine Photos

PLC Control System Roof Sheet Making Machine Corrugated Iron Rolling Machine 0PLC Control System Roof Sheet Making Machine Corrugated Iron Rolling Machine 1PLC Control System Roof Sheet Making Machine Corrugated Iron Rolling Machine 2PLC Control System Roof Sheet Making Machine Corrugated Iron Rolling Machine 3
