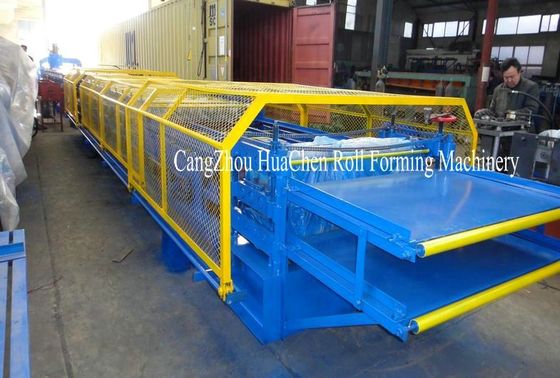

Siemens PLC Double Layer Roof Panel Roll Forming Machine with Hard Rollers No.45 Steel

Basic Information
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC23/35
Minimum Order Quantity: 1set
Price: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detail Information
High Light:

metal roll forming machine

,

sheet metal roll forming machines


Product Description



PLC Control Double Layer Roof Panel Roll Forming Machine , High Grade 45# Steel Sheet



Being counted amongst the most prominent entities of the market, we are engaged in offering a best quality range of Double Layer Roof Forming Machine which finds application in production of false ceiling section profiles, cable trays and DIN rails. The offered roll forming roofing product is valued for easy usage, high strength, corrosion & thermal resistance and easy installation. This Double Layer Roof Forming Machine is manufactured at our state-of-the-art manufacturing unit using high grade raw materials and cutting-edge technology in line with global set industry norms.

Quick Detail:

1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 10/17 rows
4. Dimensions: 9.7*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control


Description:

Double layer roll forming machine Main parameter

No.

 Main parameter of Double layer roll forming machine


1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :10 rows
Down level :17 rows

4

Dimensions

9700*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

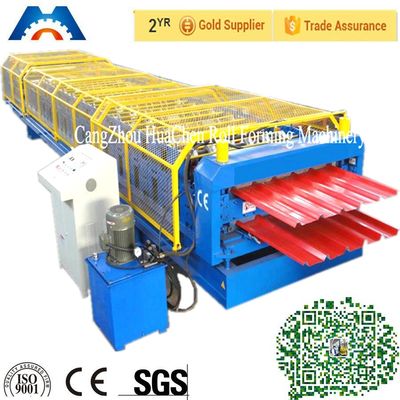

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
 Siemens PLC Double Layer Roof Panel Roll Forming Machine with Hard Rollers No.45 Steel 0Siemens PLC Double Layer Roof Panel Roll Forming Machine with Hard Rollers No.45 Steel 1Siemens PLC Double Layer Roof Panel Roll Forming Machine with Hard Rollers No.45 Steel 2

Application

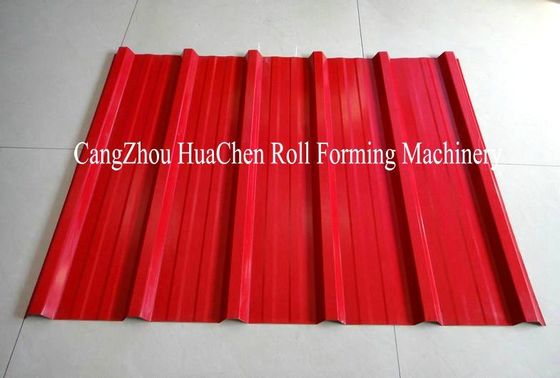

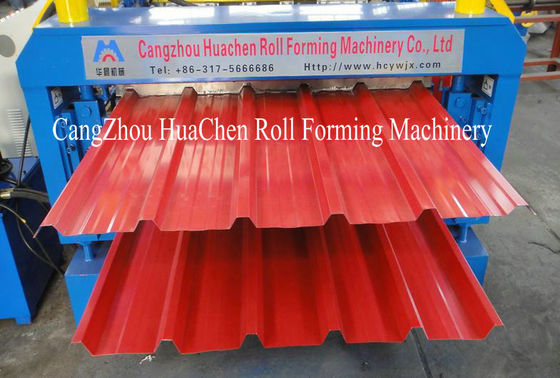

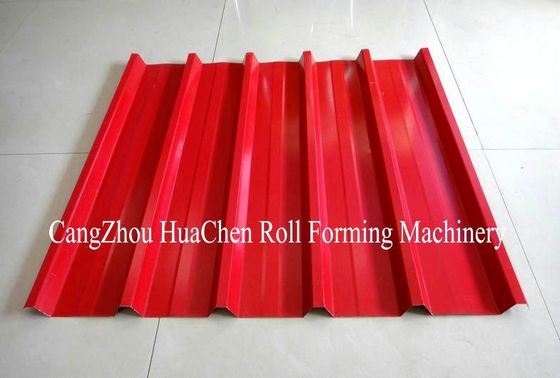

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site


Competitive Advantage

 1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain
