Gear Box Drive Highway Guardrail Forming Machine Thickness 4mm

Basic Information
Place of Origin: MADE IN CHINA
Brand Name: HC
Certification: CE
Model Number: HC330
Minimum Order Quantity: 1Set
Price: 29000-49000USD
Packaging Details: Main machine is nude, the control panel is packed by carton box.
Delivery Time: 60days after receive agreed deposit.
Payment Terms: 30% deposit by TT in advance, the balance to be paid before delivery.
Supply Ability: 20Set/Month
Detail Information
High Light:

sheet metal Forming Machine

,

Highway Guardrail Roll Forming Machine


Product Description

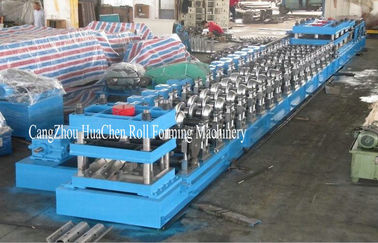

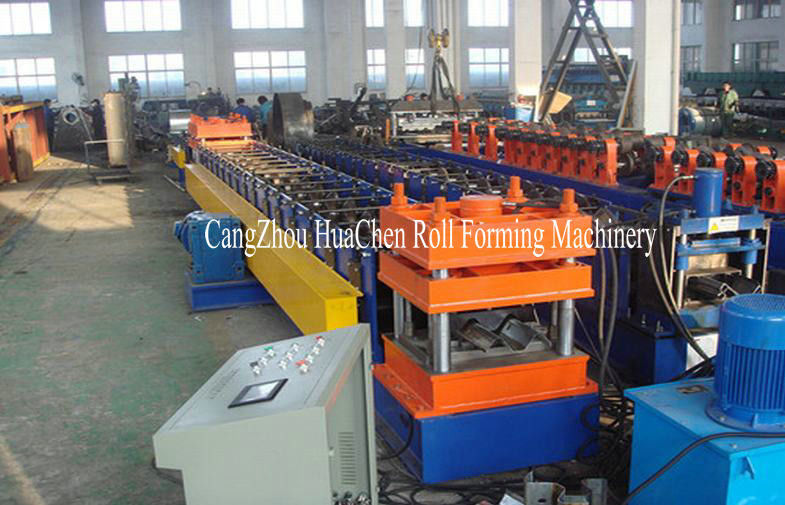

Gear Box Drive Highway Guardrail Forming Machine Thickness 4mm







Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 550mm

3. Rollers: 24 rows

4. Dimensions: 11.6*1.35*1.51m

5. Power: 22+7.5kw

6. Rolling material: shaft bearing steel(quenching)

7. Thickness of the plate:2.5-3mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control



2,Description:



Gear Box Drive Highway Guardrail Forming Machine / equipment Main parameter

No.

   Main parameter of Gear Box Drive Highway Guardrail Forming Machine / equipment

1

Suitable to process

Color steel plate

2

Width of the plate

550mm

3

Rollers

24 rows

4

Dimensions

110600*1350*1510mm

5

Power

33+7.5kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

2.5-3mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ100mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting



3.Competitive Advantage



1.ISO certification

2. CE certification

3. PLC Panasonic

4. One year free warranty

5. Low loss, easy operate



Gear Box Drive Highway Guardrail Forming Machine Thickness 4mm 0Gear Box Drive Highway Guardrail Forming Machine Thickness 4mm 1
