14 Stations Racking Beams Roll Forming Machine Line With Stand Type Structure

14 Stations Racking Beams Roll Forming Machine Line With Stand Type Structure
14 Stations Racking Beams Roll Forming Machine Line With Stand Type Structure 14 Stations Racking Beams Roll Forming Machine Line With Stand Type Structure 14 Stations Racking Beams Roll Forming Machine Line With Stand Type Structure 14 Stations Racking Beams Roll Forming Machine Line With Stand Type Structure

Large Image :  14 Stations Racking Beams Roll Forming Machine Line With Stand Type Structure

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC80/90/100/110/120/130/140/150/160
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 60Days
Payment Terms: 30% deposit by T/T before manufacture, The balance to be paid before delivery.
Supply Ability: 60 Sets Per Month

14 Stations Racking Beams Roll Forming Machine Line With Stand Type Structure

Description
Main Roller Material: CR12 Rollers: 14Stations
Power: 15+5.5KW Shaft: 45# Steel
Roller Shaft Diameter: 80mm Suitable Material: 1.5-2mm(DX51 - GALVANIZED/Q300-350)
Voltage: 380V/50Hz/3Phase Forming Speed: 15m/min
High Light:

14 Stations Cold Roll Forming Machine

,

Racking Beams Cold Roll Forming Machine

,

Stand Type Cold Roll Forming Equipment

Product Description:

This machine is Double C Clasping Beam Machine Line specifically designed for usage in the storage shelf equipment industry.

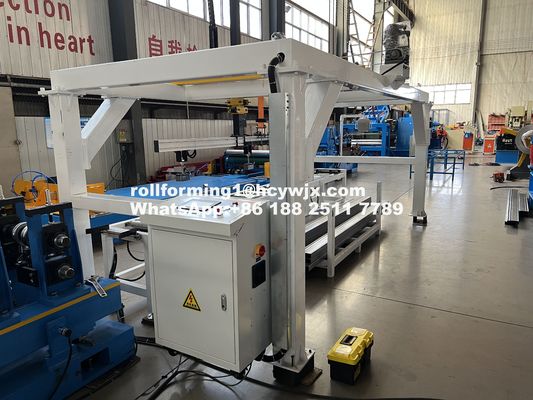

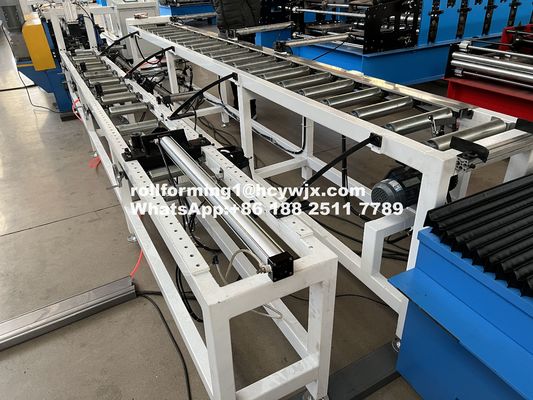

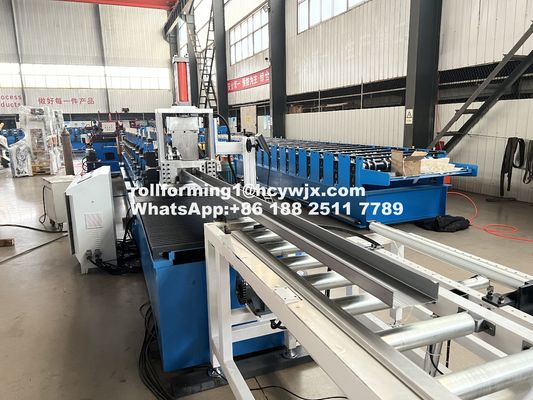

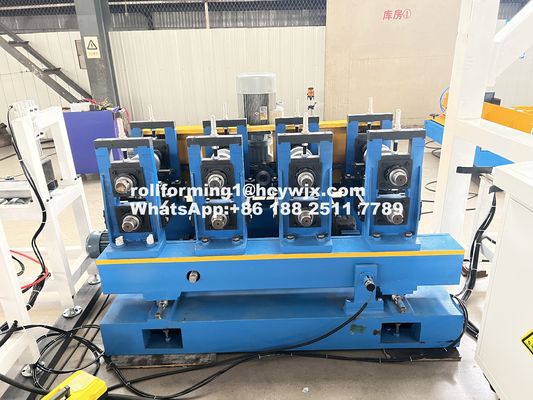

It consists of hydraulic decoiler, a precision leveling device, a forming unit, a cutting system, a double C clasping machine, a robot automated palletizing section, a steel coil butt welding machine, and an inkjet printer (which is customisable according to needs).

The technical solution for this machine involves two C-shaped beams which are coupled with each other, and includes a number of opposite through holes. The C-shaped beam has an adjustable limit column located in each pair of through holes, which features a stopper at one end outside the C-shaped beam, and a positioning pin at the end inside. Both ends of the positioning pin are threaded with elastic clips, with a compression spring is set on the limiting column for improved stability. One end of the compression spring is provided with a positioning ring which is partially inserted into the two elastic clips, and the compression spring is in a compressed state.

The aforementioned design gives an improved connection and increased stability between the two C-shaped beams.

Features:

  • Product Name: Cold Roll Forming Machine
  • Roller Shaft Diameter: 80mm
  • Rollers: 14Stations
  • Power: 15+5.5KW
  • Structure: Stand Type
  • Forming Speed: 15m/min

Technical Parameters:

Parameter Value
Carriage board roll forming machine Shipping container side profile machine, Container Siding Machine
Power 15+5.5KW
Main Roller Material CR12
Shaft 45# Steel
Voltage 380V/50Hz/3Phase
Blade Material Cr12
Rollers 14Stations
Forming Speed 15m/min
Roller Shaft Diameter 80mm
Suitable Material 1.5-2mm(DX51 - GALVANIZED/Q300-350)
Structure Stand Type


Applications:

Iron plate or steel plate can be machined (stamped or rolled) into a "C" shape. Through the processing, strong plastic deformation occurs and is accompanied by a twist and a distortion in the crystal lattice. Additionally, the grains may shear and slip. As a result of those actions, the grains become elongated, the hardness increases significantly, and the plasticity and impact toughness reduce.

The "C" shaped component that is cooked up is called a single-eye C-shaped beam. Two of those C-shaped beams can be put together by exchanging the openings up and down, and then welded together, allowing them to have more strength.

Customization:

Custom Cold Roll Forming Machine
Brand Name: HC
Model Number: HC80/90/100/110/120/130/140/150/160
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 60Days
Payment Terms: 30% deposit by T/T before manufacture, The balance to be paid before delivery.
Supply Ability: 60 Sets Per Month
Shaft: 45# Steel
Forming Speed: 15m/min
Main Roller Material: CR12
Rollers: 14Stations
Blade Material: Cr12

We specialize in custom Cold Roll Forming Machine, Carriage board roll forming machine, shipping container side profile machine and more cold roll forming machines. Our machines are CE certified and have a minimum order quantity of one. Our machines are manufactured with high quality 45# steel shafts and CR12 main roller materials. The forming speed is 15m/min and the rollers are 14 stations. The blade material is Cr12. The packaging is 40GP Container and the delivery time is 60 days. The payment terms are 30% deposit by T/T before manufacture, The balance to be paid before delivery. We have a supply ability of 60 sets per month.

Support and Services:

We provide technical support and service for Cold Roll Forming Machine. Our technical support team will provide assistance in the installation and operation of the equipment, as well as troubleshooting and maintenance. We also provide online support, with an online chat feature to quickly answer any questions you may have. Additionally, our team can provide custom solutions and modifications to meet any specific needs you may have.

FAQ:

Q1: What is the Brand Name of the Cold Roll Forming Machine?
A1: The brand name of the Cold Roll Forming Machine is HC.
Q2: What model numbers are available for the Cold Roll Forming Machine?
A2: The model numbers for the Cold Roll Forming Machine are HC80/90/100/110/120/130/140/150/160.
Q3: Where is the Cold Roll Forming Machine made?
A3: The Cold Roll Forming Machine is made in China.
Q4: What certifications does the Cold Roll Forming Machine have?
A4: The Cold Roll Forming Machine has a CE certification.
Q5: What is the minimum order quantity for the Cold Roll Forming Machine?
A5: The minimum order quantity for the Cold Roll Forming Machine is 1. Packaging Details: 40GP Container. Delivery Time: 60Days. Payment Terms: 30% deposit by T/T before manufacture, The balance to be paid before delivery. Supply Ability: 60 Sets Per Month.
