Product Details:
|
| Voltage: | 380V50HZ/3Phase | Material Thickness: | 1.5-3.0mm |
|---|---|---|---|
| Forming Speed: | 2-15m/min | Material Type: | Galvanized Steel |
| Power: | 33.6+15KW | Machine Dimension: | 12.1*1.5*1.6m |
| Machine Weight: | 15.6T | Warranty: | 1 Year |
| High Light: | flexible c&z purlin forming machine,versatile c&z purlin forming machine,380v50hz cz purlin machine |
||

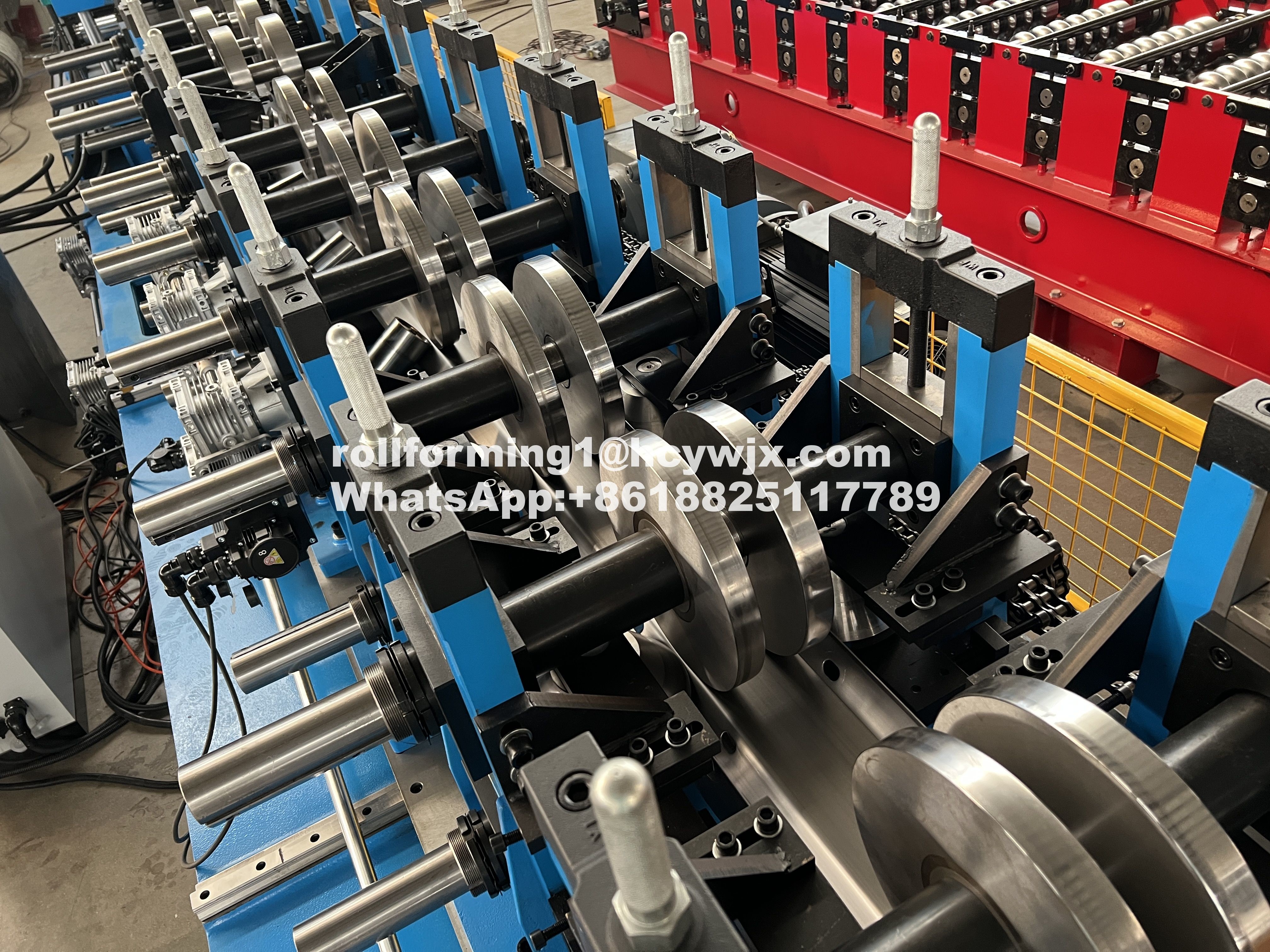

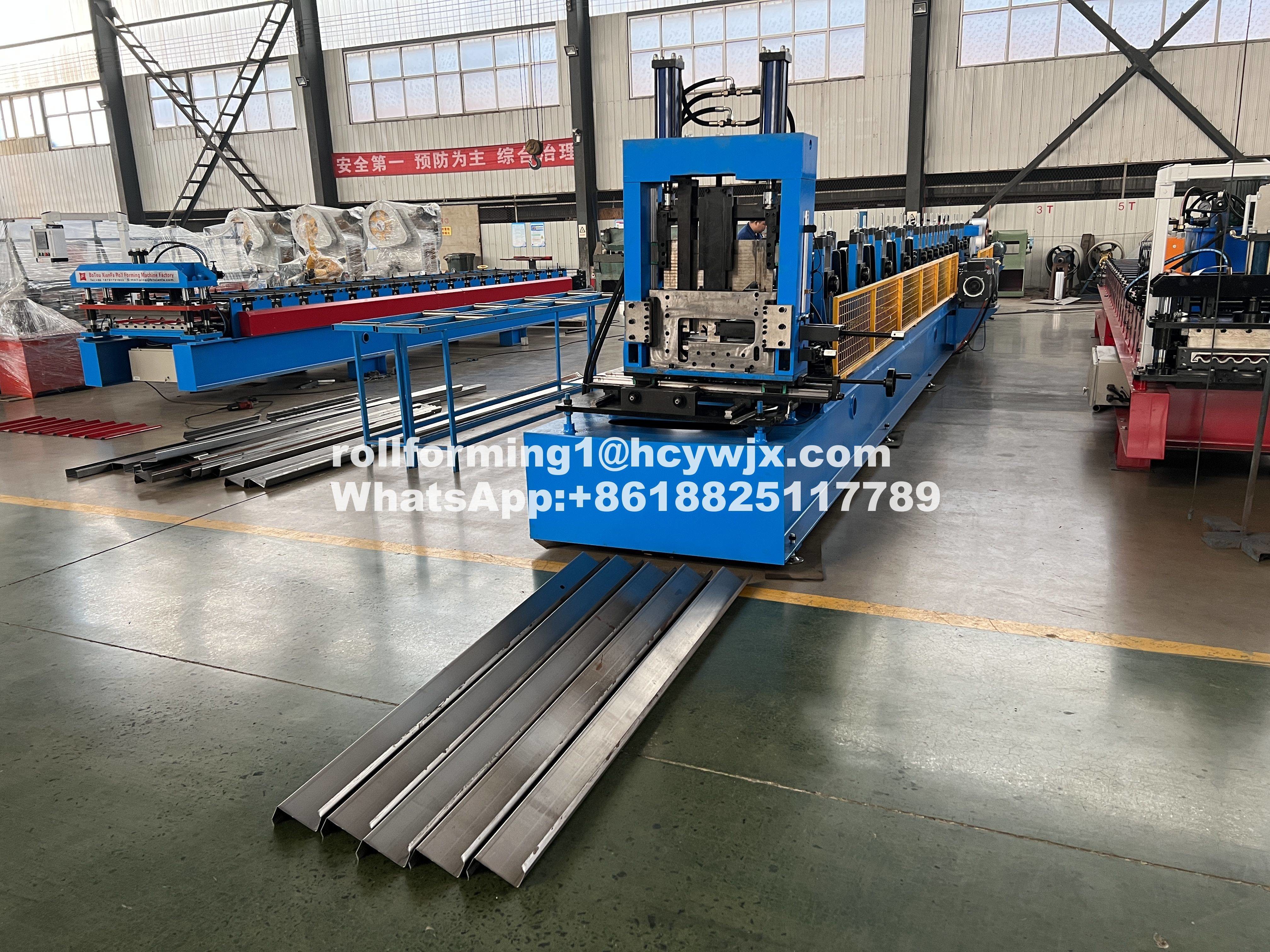

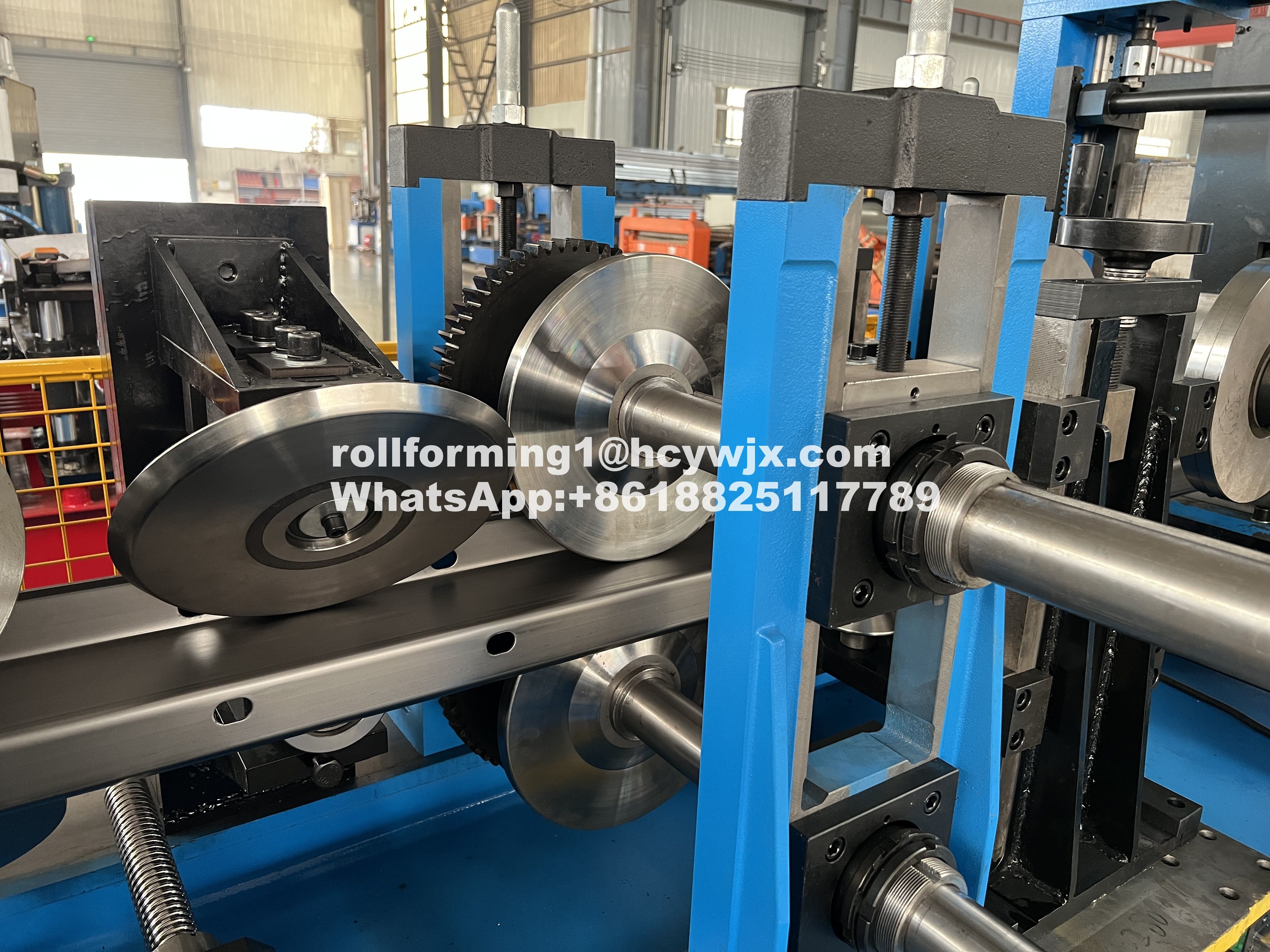

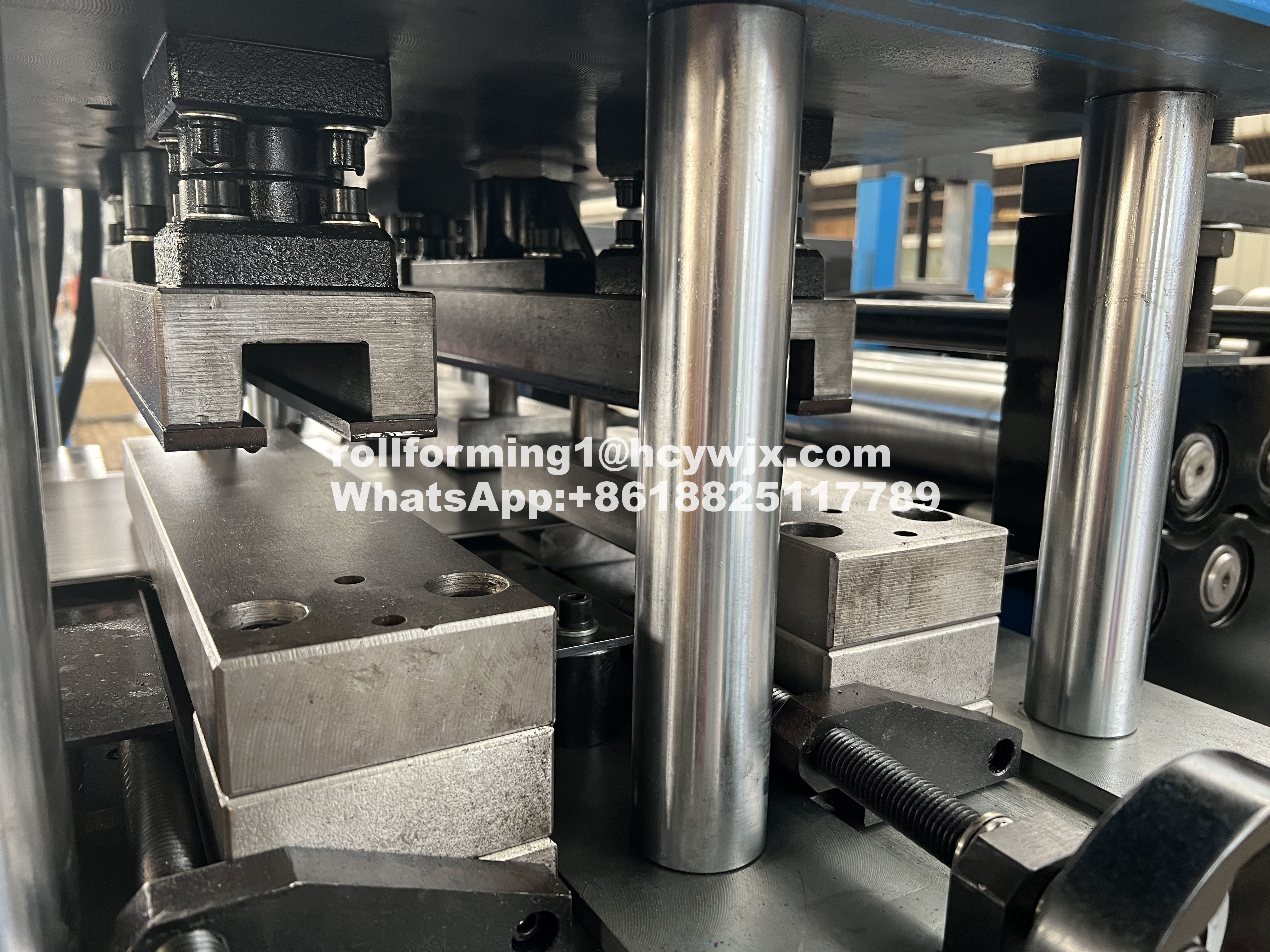

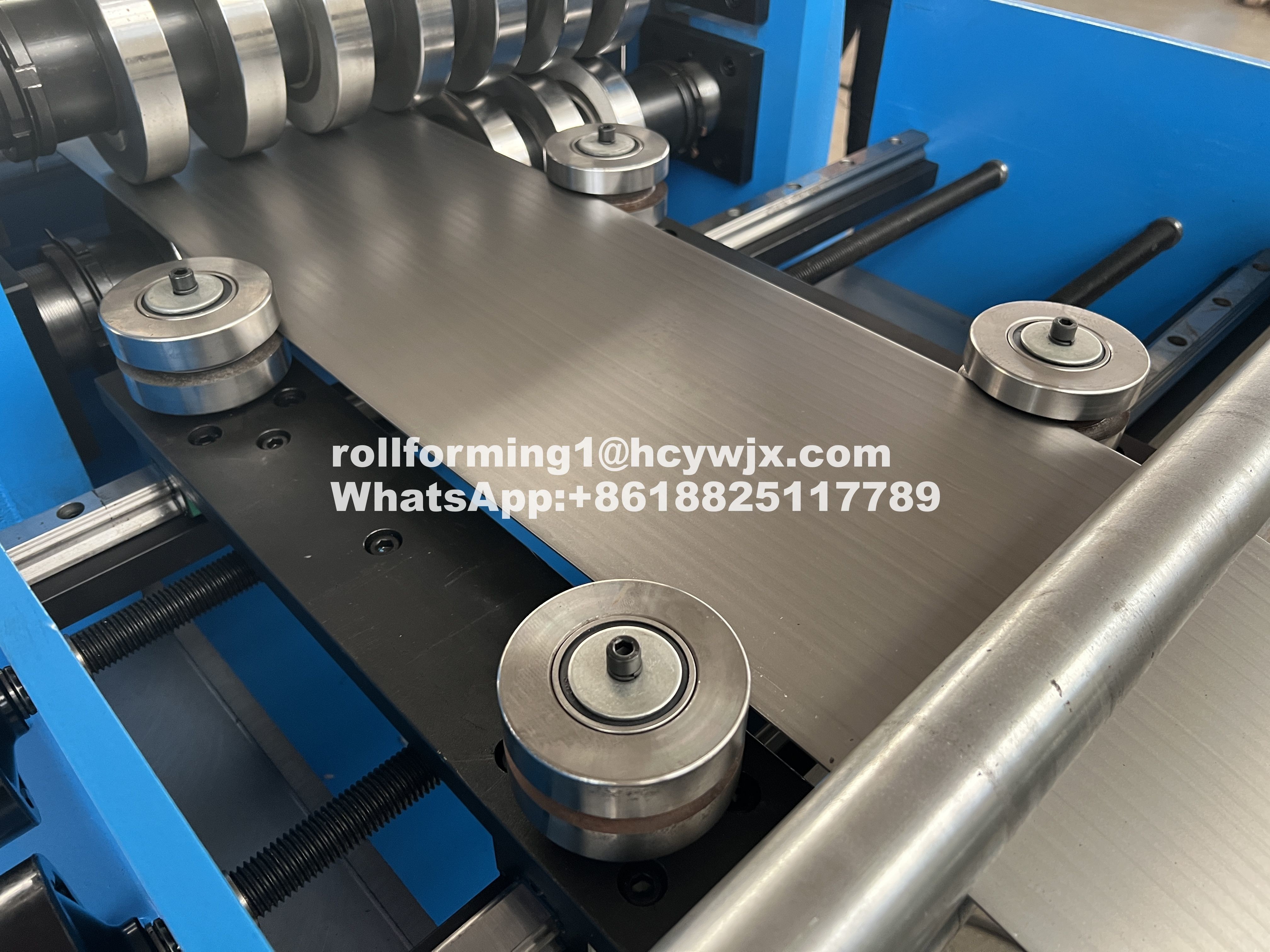

C or Z shape purlines are manufactured using hot-rolled or cold-rolled steel strips. This is done by processing it through a professional CZ interchangeable purline roll-forming machine. This machine is used for straightening, punching holes, roll-forming and cutting the strips.
The one-click CZ fully automatic interchanging technology makes the time needed to produce the desired profile far shorter than before. By simply one-click, the size is changeable immediately, and it only takes a few minutes for the whole process. This comes with great convenience, especially for mass production.
With this time-saving technology available to us, huge amounts of work can be done within a few minutes, and with great accuracy and precision. It not only eases people's work load, but also accelerates the production processes and leads to a much faster result.
| Product Name | CZ Purlin Roll Forming Machine |
|---|---|
| Roller Stations | 14-18 Stations |
| Machine Weight | 15.6T |
| Material Width | Customizable Based On Need |
| Cutting Tolerance | ±1mm |
| Material Thickness | 1.5-3.0mm |
| Power | 33.6+15KW |
| Material Type | Galvanized Steel |
| Voltage | 380V/50HZ/3Phase |
| Machine Dimension | 12.1*1.5*1.6m |
The products that are created are applicable for a variety of construction projects, such as rooftop support beams in factories. This type of construction can be a viable solution for increasing the load-bearing capacity of structures.
With the right setup, these beams provide superior robustness to structures, allowing them to bear heavy loads and resist vibration. Additionally, these products are relatively easy to install and require minimal maintenance, making them a great choice for industrial construction.
Brand Name: HC
Model Number: HC C/Z
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 60Days
Payment Terms: 30% deposit by T/T before manufacture, The balance to be paid before delivery.
Supply Ability: 60 Sets Per Month
Machine Weight: 15.6T
Power: 33.6+15KW
Product Name: CZ Purlin Roll Forming Machine
Voltage: 380V/50HZ/3Phase
Warranty: 1 Year
HC Automatic CZ Purlin Roll Forming Machine is designed for producing CZ purlins with high speed and accuracy. It is an ideal equipment for producing various sizes of CZ purlins. This machine adopts PLC control system, servo tracking, touch screen operation, and other advanced technology. The machine has a high production capacity, and the CZ purlins produced by it are of high quality and good appearance. It is widely used in various industries such as construction, automotive, and other industries.
Features:
CZ Purlin Roll Forming Machine Technical Support and Services
