Product Details:
|
| Forming Speed: | 15m/min | Weight: | 4.5T |
|---|---|---|---|
| Drive Mode: | Chain Drive | Transducer: | Delta |
| Control System: | PLC Control | Roller Material: | 45# Steel |
| Power Supply: | 380V/3Phase/50Hz | Roller Stations: | 14 |
| High Light: | delta transducer metal roll forming machine,sliding metal roll forming machine,efficient production metal wall panel machine |
||

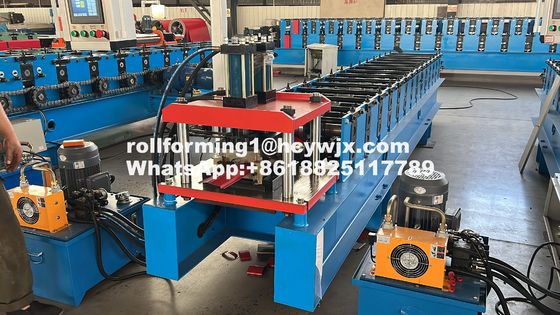

This machine is built on H-shaped steel, with the height of the H-shaped steel customizable to 400mm, 450mm, or 500mm to meet different customer's needs. The legs are adjustable and can be replaced with goblets whenever necessary.
The wall panels are made of 16mm thick steel plates, which are perfectly welded with no unevenness. Moreover, a hydraulic cutting with double columns located on each side of the guillotine is applied, which ensures a sturdy structure.
| Parameter | Value |
|---|---|
| Drive Mode | Chain Drive |
| Transducer | Delta |
| Weight | 4.5T |
| Roller Material | 45# Steel |
| Cutting mode | Hydraulic Cutting |
| Total Power | 4+4KW |
| Size | 6.5*1.3*1.5m |
| Forming Speed | 15m/min |
| Roller Stations | 14 |
| Encoder | Omron |
| Type | Hanging Board Roll Forming Machine, Wall Panel Roll Forming Machine, Wall Sliding Roll Forming Machine |

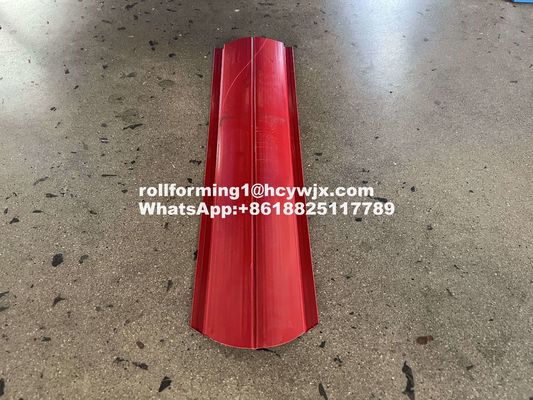

This machine manufactures products which can be used for wall panels. It offers a wide variety of options in terms of shape, size and design, selecting the solution that best fits your needs.
With this machine, the wall panels manufactured are not only aesthetically pleasing, but also durable. Additionally, the installation process is straightforward and requires minimal effort.
Choose this machine and you will be able to enjoy aesthetically pleasing and highly durable wall panels that are easy to install.
Brand Name: HC
Model Number: HC19-96
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: 20GP or 40GP Container
Delivery Time: 30days
Payment Terms: 30% deposit by T/T before manufacture, The balance to be paid before delivery.
Supply Ability: 60 Sets Per Month
Size: 6.5*1.3*1.5m
Weight: 4.5T
Drive Mode: Chain Drive
Product Name: Wall Panel Roll Forming Machine
Cutting Mode: Hydraulic Cutting
Our Wall Panel Roll Forming Machine is suitable for the production of hanging board, slinding board, wall panel, etc. It is the best choice for buidling material production. It is CE certified, and can be customized to meet your needs. It has a size of 6.5*1.3*1.5m, and a weight of 4.5T. It adopts chain drive and hydraulic cutting mode. The minimum order quantity is only 1, and the delivery time is 30 days. The package is 20GP or 40GP container. Contact us to get more details.
Our wall panel roll forming machine is designed to provide you with the best possible performance. We offer a wide range of technical support and services to make sure that you get the most out of your machine.
If you have any questions or need any assistance, please don't hesitate to reach out to us. We are here to help you get the most out of your wall panel roll forming machine.
