Product Details:
|
| Roller Stations: | 18Stations | Material: | Galvanized Steel, Aluminum, Color Steel, Stainless Steel, Etc. |
|---|---|---|---|
| Control System: | PLC Control System | Dimension: | 8500mm*1200mm*1550mm |
| Color: | Customizable | Forming Speed: | 8-20m/min |
| Thickness: | 0.3-0.8mm | Warranty: | 1 Year |
| High Light: | 380volt roofing sheet roll forming machine,0.3mm roofing sheet roll forming machine,plc control roof sheet making machine |
||

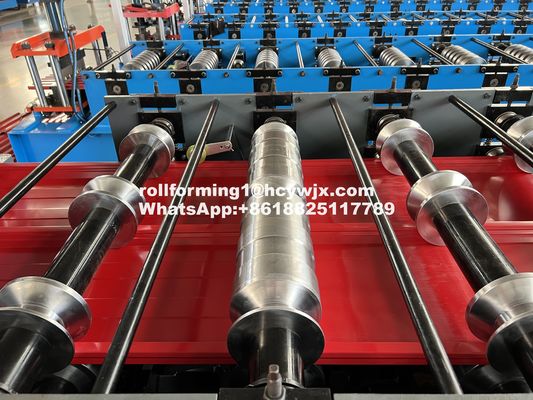

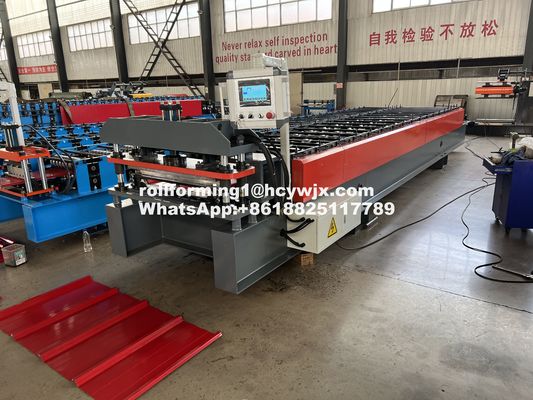

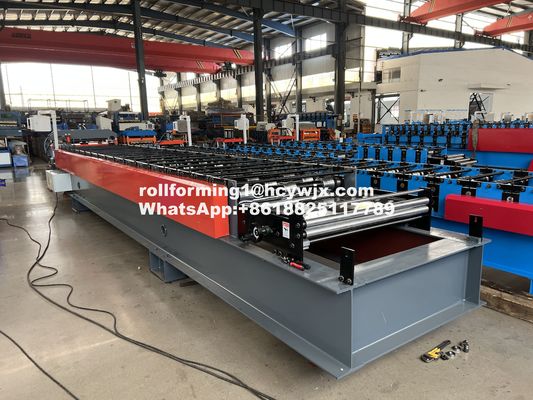

Huachen roll forming machine is a China leading manufacturer of metal roll forming machine, which has been dedicated in producing high-quality machine for years. The roofing sheet roll forming machine is one of its excellent products, which is specially designed for sheet roll forming and cutting. By using the PLC control system, the machine can be operated easily and efficiently. Meanwhile, the chain drive and hydraulic cutting make it more stable and reliable. With the total power of 5.5+4KW and weight of 8.5Tons, this machine is definitely a great choice for your production line.
We are proud to announce that our machine has an exceedingly fast production speed. At the very quickest it can produce up to 20 meters of output per minute.
The wealth of experience behind our team of engineers and designers enables us to produce machines that are consistently up to the task and exceed expectations when it comes to production speed.
This particular model is no exception; it is a flagship model that sets the benchmark for similarly-adapted machinery.
| Parameter | Value |
|---|---|
| Material | Galvanized Steel, Aluminum, Color Steel, Stainless Steel, Etc. |
| Drive Type | Chain Drive |
| Product Name | Roofing Sheet Roll Forming Machine |
| Power Supply | 380V/ 3Phase/ 50Hz(Customizable) |
| Total Power | 5.5+4KW |
| Control System | PLC Control System |
| Forming Speed | 8-20m/min |
| Thickness | 0.3-0.8mm |
| Roller Stations | 18Stations |
| Warranty | 1 Year |
| Keywords | Steel Roofing Machine, Metal Roll Forming Machine, China Roll Forming Machine |
Customized Roofing Sheet Roll Forming Machine with HC Brand Name
HC36-760 Stone Coated Roofing Sheets Machine with CE Certification
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 45days
Payment Terms: 30% deposit by T/T before manufacture, The balance to be paid before delivery.

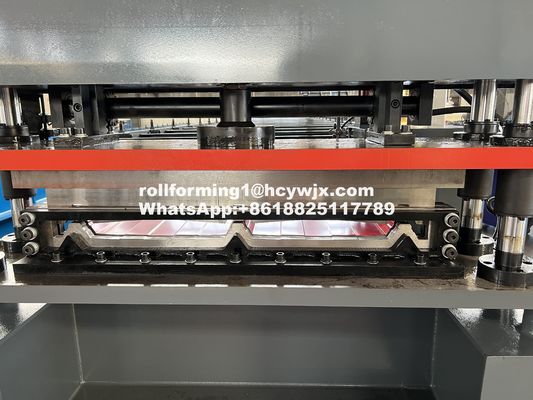

Cutting Type: Hydraulic Cutting
Drive Type: Chain Drive
Warranty: 1 Year
Color: Customizable
20meters roll forming machine, stone coated roofing sheets, stone coated roofing sheets machine
We provide comprehensive support and service for our Roofing Sheet Roll Forming Machine. Our technical support includes:
Our online service includes:
A1: The Brand Name of this Roofing Sheet Roll Forming Machine is HC.
A2: The Model Number of this Roofing Sheet Roll Forming Machine is HC36-760.
A3: This Roofing Sheet Roll Forming Machine is made in China.
A4: Yes, this Roofing Sheet Roll Forming Machine has CE Certification.
A5: The Minimum Order Quantity of this Roofing Sheet Roll Forming Machine is 1. The Packaging Details is 40GP Container and the Delivery Time is 45 days. The Payment Terms is 30% deposit by T/T before manufacture, The balance to be paid before delivery.
