PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations

China PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations supplier

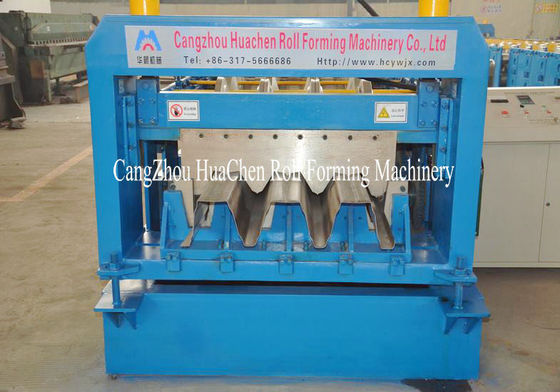

Large Image :  PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations

Product Details:

Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC151

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 28000-6900USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description

PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations

Main Specifications of Steel Deck Roll Forming Machine

  • Material Spec: Galvanized steel sheet
  • Thickness of Coil Sheet: 0.8 --1.2 mm
  • Main Motor Power of Floor decking roll forming machine: 18.5kw
  • Forming Speed: 10--12m/min
  • Hydraulic Station Power: 4kw
  • Quantity of Stands: About 24 groups
  • Hydraulic Pressure: 10~12Mpa
  • Controlling System: PLC
  • Index Error of Length: 10m±1.5mm
  • Total Weight: About 1800kg
  • Voltage: 380V 3 phase 50Hz or at buyers requirement





Main Components



  • Decoiler ----------------------------------------------- 1 Unit
  • Feeding ----------------------------------------------- 1 Unit
  • Main roll forming machine ----------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------- 1 Unit
  • Hydraulic Station ------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- 1 Unit



PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations







Reference Drawings







PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations

PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations

PLC Control System Steel Deck Roll Forming Machine With 24 Forming StationsPLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations
