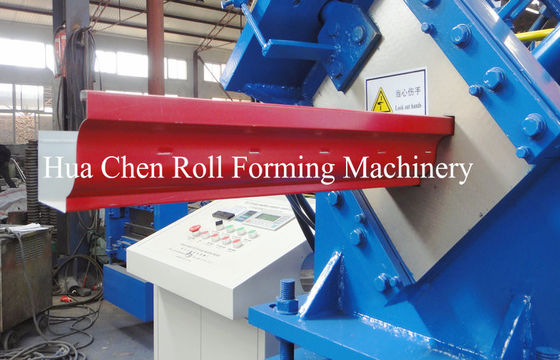

Product Details:
|
| High Light: | sheet metal rolling machine,metal roll forming machines |
||
|---|---|---|---|
Specification
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1000mm coil sheet |
| 2 | Thickness of feeding material | 0.3mm-0.8mm coil sheet |
| 3 | Roller station | 2-15 stations |
| 4 | Shaft Diameter | 75-95mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 2.5-8 ton |
| 9 | length | 5.5 m-11m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 8 Tons |
| 13 | Motor | 3kw-15kw |
| 14 | Driving way | Gear box transmission |
| 15 | Chain size | 0.6 inch-2 inch |
| 16 | Cutting system | Hydraulic cutter |
Description
Mainly used for decoration, products, appliances stainless steel pipe and carbon steel (round tube, squre tube, shaped tube) production.
Main components
1.Uncoiler
I.D. of steel strip: Φ600~Φ800mm
O.D of steel strip: Φ1800mm
2.shearing and butt-welding
insure two-coiled steel strips shearing tidily and then welding together and leveling weld seam.
3.Hoop cage
Usage: ensure main machine to run continuously while welding two coiled strips.Accumulating volume: 300m.
4. Feeding device
Vertical guide roll: one pair
Roller for leveling: 7 Rollers
5. Forming device
O.D.: φ60~φ165mm
Wall thickness: 1.5~5.0mm
6. Guide device
two rollers and with pieces for guiding in the middle.
7. Cooling device
Cooling tube
8. Sizing device
Diameter of the pipe: φ60~φ165mm
Wall thickness: 1.5~5.0mm
9.Straightening machine
It is mainly used for straightening of finished pipe roughly online.
10. Computer-controlled cutting saw
Maximum running speed of the vehicle: 60 m/min
Cutting diameter: φ60~φ165mm
Cutting thickness: ≤5.0mm
Cutting tolerance: 0~6 mm
Maximum Cutting speed :6 times/min
11. Solid State H.F. Welder
Solid State type, include Rectifier cabinet, Inverter cabinet, transformer, control panel, cooling system
12. Transmission system
It’s DC Motor with speed reducer, through gearboxes and universal joints to drive forming and sizing unit
13. Runout Conveyor
Move out finished steel tubes
14. Roller set
Order according to tube sizes
Advantage
1. Any small problems will be solved at the most prompt time.
2. We always offer relateive technical support,quick response,all your inquire will replied within 24 hours.
3. We can delivery your goods within 25 workdays.
4. OEM service.
