Double Layer Color Sheet Metal Roll Forming Machines Sheet Width 1250mm

China Double Layer Color Sheet Metal Roll Forming Machines Sheet Width 1250mm supplier
Double Layer Color Sheet Metal Roll Forming Machines Sheet Width 1250mm supplier Double Layer Color Sheet Metal Roll Forming Machines Sheet Width 1250mm supplier Double Layer Color Sheet Metal Roll Forming Machines Sheet Width 1250mm supplier

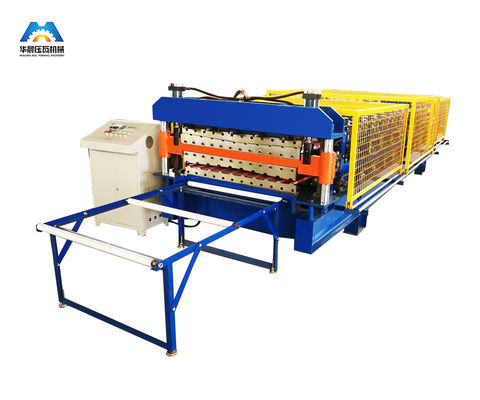

Large Image :  Double Layer Color Sheet Metal Roll Forming Machines Sheet Width 1250mm

Product Details:

Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC 8-14

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30 days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Type: Tr 8-14 Double Layer Width: 1250 MM
Rollers: Upper 10 Rows Under 13 Rows Exported: Poland
Machine's Color: Bule Thickness: 0.3 - 0.7 Mm
Speed: 8-10 M/min

TR 8 - 14 Double layer roll forming machine color sheet width 1250mm



Machine details

Technical parameters of double layer roll forming machine of type TR8-14:



Dimensions: 6500mm x 1300mm x 1500mm



Forming method: roller forming



Number of forming: upper 10 rows under 13 rows



Feed width: 1250mm



Thickness of rolled plate: 0.2-0.8mm



Equipment roller : Φ 70 mm



Hydraulic power: 4 KW



Rolling speed: 8-10m/min





Pump station motor: 4KW



Equipment frame: 300H steel



Shear knife material: Cr12 (chromium 12)



Equipment transmission: sprocket, chain



Automatic computer length control system



The TR8-14 double layer roll forming machine combines the two models very well, with reasonable structure and beautiful appearance.

With the characteristics of space saving and simple operation, it is especially suitable for small site and site construction.



Double Layer Color Sheet Metal Roll Forming Machines Sheet Width 1250mm

The TR8-14 double layer roll forming machine is mainly composed of feeding and leading-in platform, forming host, shaping and cutting device, hydraulic station, computer control system and so on.

The operation of the upper and lower layers is simple. Only the conversion button on the electric control cabinet can be used to control each layer respectively. The power can also be used to control each layer separately through the clutch.

Optional equipment has ordinary feeding machine, hydraulic feeding machine.

Double Layer Color Sheet Metal Roll Forming Machines Sheet Width 1250mm

The rotation mode of the double layer tile press of model 860/900 has high accuracy. The upper mold system and the lower mold system are respectively equipped with a set of worm gear and worm drive organization fixed on the scissor frame, which is driven by a pair of synchronous motors.

The upper and lower models are subject to customer requirements.



TR8-14 double layer roll forming machine adopt new double layer design, dual use, small occupation, convenient transportation, double layer cost much less than two single layer machine, is the user.

The after-sale service of our factory is perfect, and we can design and manufacture according to the user's requirement, and guide the user to manufacture, install, debug and maintain.



Double Layer Color Sheet Metal Roll Forming Machines Sheet Width 1250mm



In order to get used to the two layers of the double material of the product, TR8-14 double layer roll forming machine has two layers of height.

The disposal of the end product behind the cutoff mold should be equipped with up and down adjustment, so as to get used to the outlet height of these two plates.

To satisfied in the limited area of the requirements of forming two section, can quickly change the commodity, tile press double mill (double layer roll forming machine, double integration equipment) has also been made, the double layer roll forming machine is change between high and low frame, produce a kind of summary color steel installed on the lower frame, produce another kind of plate type roll installed in high rack above, production line has a decoiler, a block press, if the color plate feeding lower roll, forming a plate type, such as material feeding top roller, and forming another section .
