Wall / Roof Sandwich Panel Roll Forming Machine Rock Wool Sandwich Plate Machine

China Wall / Roof Sandwich Panel Roll Forming Machine Rock Wool Sandwich Plate Machine supplier
Wall / Roof Sandwich Panel Roll Forming Machine Rock Wool Sandwich Plate Machine supplier Wall / Roof Sandwich Panel Roll Forming Machine Rock Wool Sandwich Plate Machine supplier Wall / Roof Sandwich Panel Roll Forming Machine Rock Wool Sandwich Plate Machine supplier

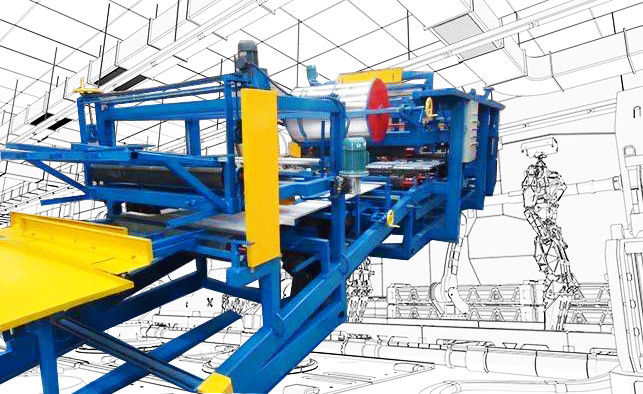

Large Image :  Wall / Roof Sandwich Panel Roll Forming Machine Rock Wool Sandwich Plate Machine

Product Details:

Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: sandwich

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30 days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Components: Colorful Steel Plate Discharge Rack, Corrugated Unit ( Tile Press ), Composite Host Unit, Finished Cutting Unit ( Cutting Part ), Conveyor Frame ( Towing Rack ), Auxiliary Equipment. Foam Machine Size: 36000mm × 3000mm × 2800mm
Power Supply: AC 380 V / 50 Hz Thickness: 0.3 - 0.6 Mm
Electric Control System: PLC Adopts Touch Screen, And Frequency Converter Adopts Taida. Material Of Roller: 45 # Steel

rock wool roll forming machinery for sandwich wall and roof machine





Rock wool sandwich plate machine is a set of color steel compression, transmission rock cotton, rock wool board composite, cutting rock wool board, forming plate.It's all about electronics.The production of this set requires five operators.Two rock tampons need to be transported.There are two forming plates and one operating computer control box can open a whole set of rock wool sandwich board machines.

Wall / Roof Sandwich Panel Roll Forming Machine Rock Wool Sandwich Plate Machine



No

1



Tile pressing machine

it is formed into 13 rows of shafts, with the shaft: saving 70, middle plate: 12mm, chain wheel and chain: 6 minutes

2



Compound host



square tube: 80*160*6, glue shaft: 150, 23

3

Press thickness

0.3-0.7mm

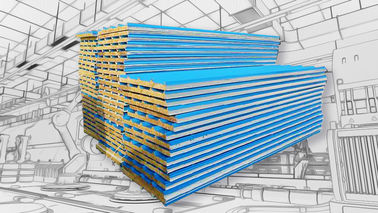

Wall / Roof Sandwich Panel Roll Forming Machine Rock Wool Sandwich Plate Machine



Thermal insulation color steel equipment parameters:



1,   Host length is 6 meters, Φ 150 rubber roller, big 80 * 180 * 6 mm.

2.   Can produce foam composite plate thickness of 50-300mm adjustable.

3.   Replace the upper and lower iron rollers of the equipment with rubber rollers.In addition to the 13 shaft for iron roller, the rest is for rubber roller, Φ 150 rubber roll of 19 roots, corrugated roller 6 root.

4.  The lifting and lifting of the main machine are 6 wire rods, 6 phase legs must be used, and the lower drive shaft is 40.



The rock - cotton sandwich plate machine is mainly divided into five - type machine and seven - type machine.In other words, the self-selected model of model 5 is 950 foam type, 980 self-locking type, 980 lap type, 970 bite type and 970 foam lap type.



Rock wool sandwich plate machine adopts advanced production technology and integrates gas and electric machinery.Working speed variable frequency infinitely adjustable-speed, sandwich corrugated type composite board a full set of assembly line, at one time by feeding mechanism, forming mechanism, composite structure (including embossing, coating, heating, composite, edge, slot, the edge, pneumatic and automatic cutting), is the production of industrial workshop, warehouse roof panels and wall are indispensable equipment.

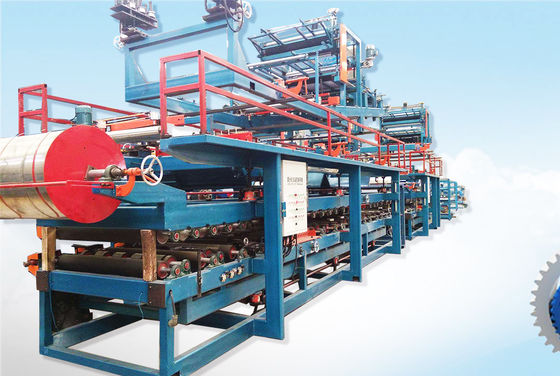

Wall / Roof Sandwich Panel Roll Forming Machine Rock Wool Sandwich Plate Machine
