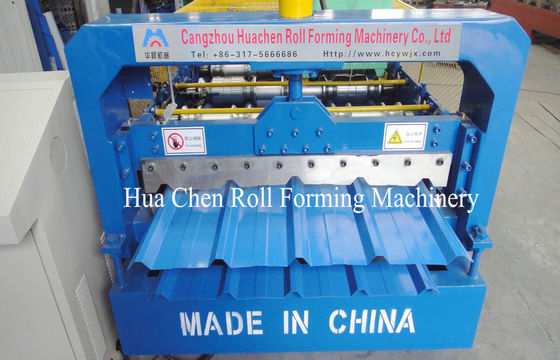

TOP quality Corrugated Tile Roof Sheet Making Roll forming Machine

China TOP quality Corrugated Tile Roof Sheet Making Roll forming Machine supplier
TOP quality Corrugated Tile Roof Sheet Making Roll forming Machine supplier TOP quality Corrugated Tile Roof Sheet Making Roll forming Machine supplier TOP quality Corrugated Tile Roof Sheet Making Roll forming Machine supplier TOP quality Corrugated Tile Roof Sheet Making Roll forming Machine supplier

Large Image :  TOP quality Corrugated Tile Roof Sheet Making Roll forming Machine

Product Details:

Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC25

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Usage: Roof And Wall Thickness: 0.3-0.6mm
Width: 1000mm Roller: 45 Steel
Capacity: 10m/min Warranty: 1 Year

Hydraulic Cutter Roof Panel Trapezoidal Roof Panel Roll Forming Machine PLC Panasonic

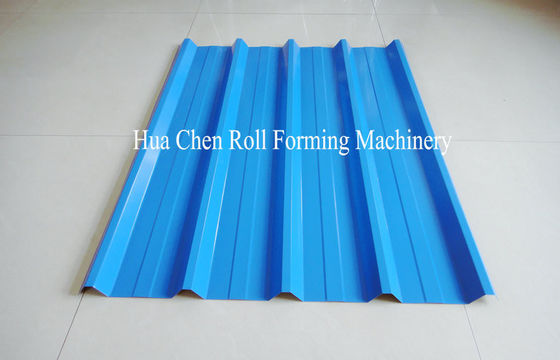

Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

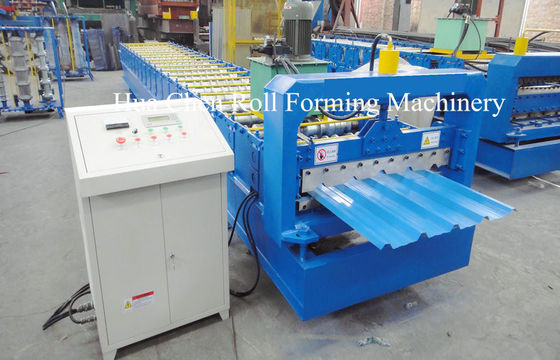

The complete machine includes the uncoiler, main forming machine, computer controlling system and run out tables.



TOP quality Corrugated Tile Roof Sheet Making Roll forming MachineTOP quality Corrugated Tile Roof Sheet Making Roll forming MachineTOP quality Corrugated Tile Roof Sheet Making Roll forming MachineTOP quality Corrugated Tile Roof Sheet Making Roll forming Machine

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate:914mm

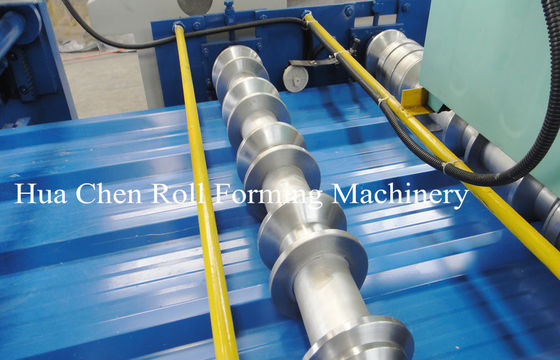

3. Rollers: 19 rows

4. Dimensions: 9.1*1.55*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Roofing sheet Roll Forming Machine Main parameter

No.

   Main parameter of Roofing sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

914 mm

3

Rollers

19 ows

4

Dimensions

9100*1450*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application



This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.





Guarantee:

12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.

After-sale service:

We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.
