Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine,Cold Galvanizing Line

Basic Information
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC25
Minimum Order Quantity: 1set
Price: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Detail Information
Usage: Roof And Wall Type: Cold Roll Forming
Thickness: 0.3-0.6mm Speed: 20m/min
Warranty: 1 Year Technical Support: Whole Life
High Light:

roof tile roll forming machine

,

cold roll forming machine


Product Description

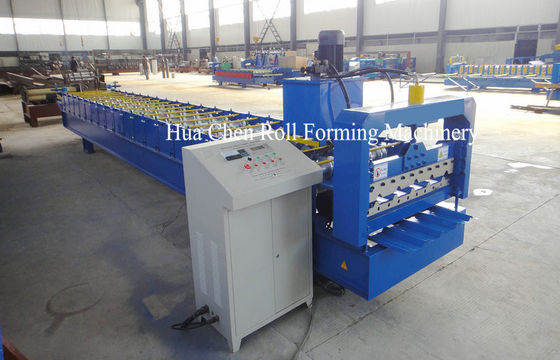

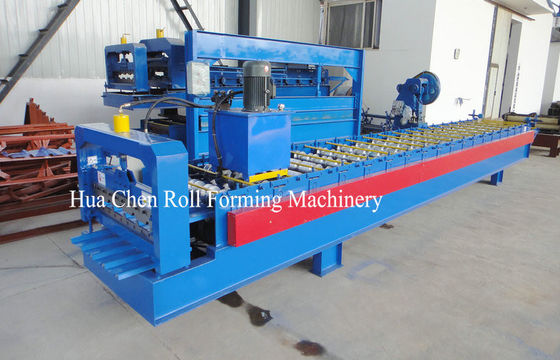

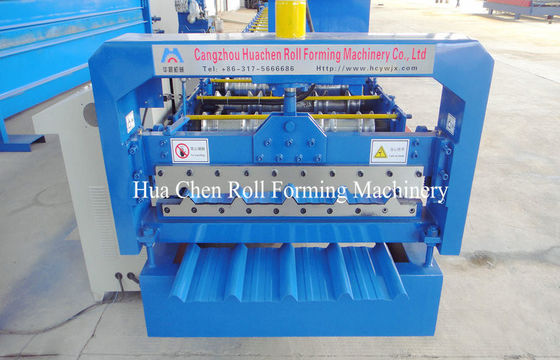

Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine

1. technical parameter

Main Motor Power3kw
Hydraulic Station Power3kw
Hydraulic Oil PumpCB-E310
SprocketP-25.4
Roller Station9
Yield strength32MPa
Diameter of Principal Axis70MM
Material of Roller45#steel hard chrome plating
Processing Speed8m/min
Installation Dimension (L*W*H)6.5m*1.5m*0.8m
Total Weight3.8T
Equipment Partsroll forming system, hydraulic system, PLC frequency conversion control system, counter and cutting system.
Productionaccording to customers' demand



Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine,Cold Galvanizing Line 0Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine,Cold Galvanizing Line 1Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine,Cold Galvanizing Line 2
Description:

Roof Sheet Roll Forming Machine  Main parameter

No.

   Main parameter of Roof Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

914mm

3

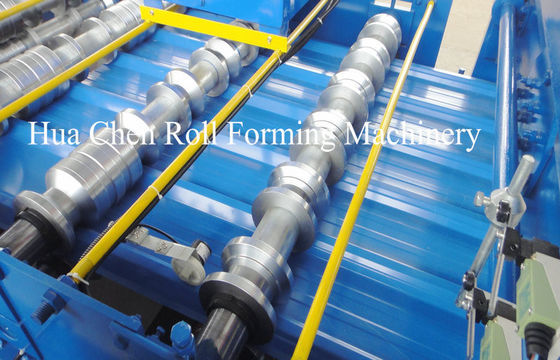

Rollers

19rows

4

Dimensions

9100*1450*1510mm

5

Power

3+3kw

6

Rolling material

45# steel ( plated chrome on surface )

7

Thickness of the plate

0.3-0.6mm

8

Productivity

8-10m/min

9

Diameter of the roller

Φ70mm

10

Voltage

380V 50Hz 3phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting


Application

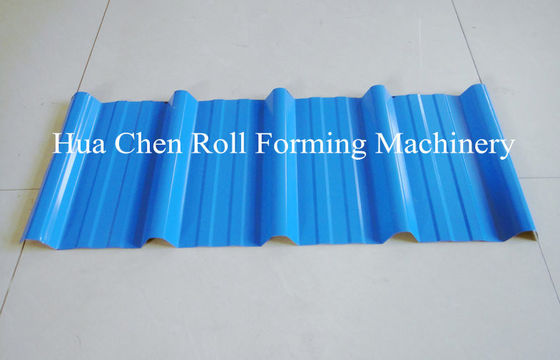

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.




Packaging & Shipping

Packaging :
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main forming machine and un-coiler is naked (If you need we can also packed with water-proof plastic)
3. PLC contral system and motor pump are packed with water proof paper
Shipping :
1. One 20" container
2. One 40"container

Our Services

We provide the technical support for whole life.

Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.

When need the technician to go abroad, we will arrange the technician.

But the buyer should take all the cost, including Visa, Roundtrip ticket,

suitable accommodation and pay the service fee to the technician with $150/days
