Trapezoidal Roll Forming Machine

Basic Information
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO/CE
Model Number: HC15/25
Minimum Order Quantity: 1Set
Packaging Details: Main machine is nude, control cabinet is packed by carton box.
Delivery Time: 45Days
Payment Terms: T/T
Supply Ability: 20 Sets/Month
Detail Information
Roller & Shaft: 45# Steel With Chrome Treatment Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Control System: PLC Control Voltage: 380V 50Hz 3Phases
High Light:

oof Panel Roll Forming Machine

,

Trapezoidal Roll Forming Machine


Product Description

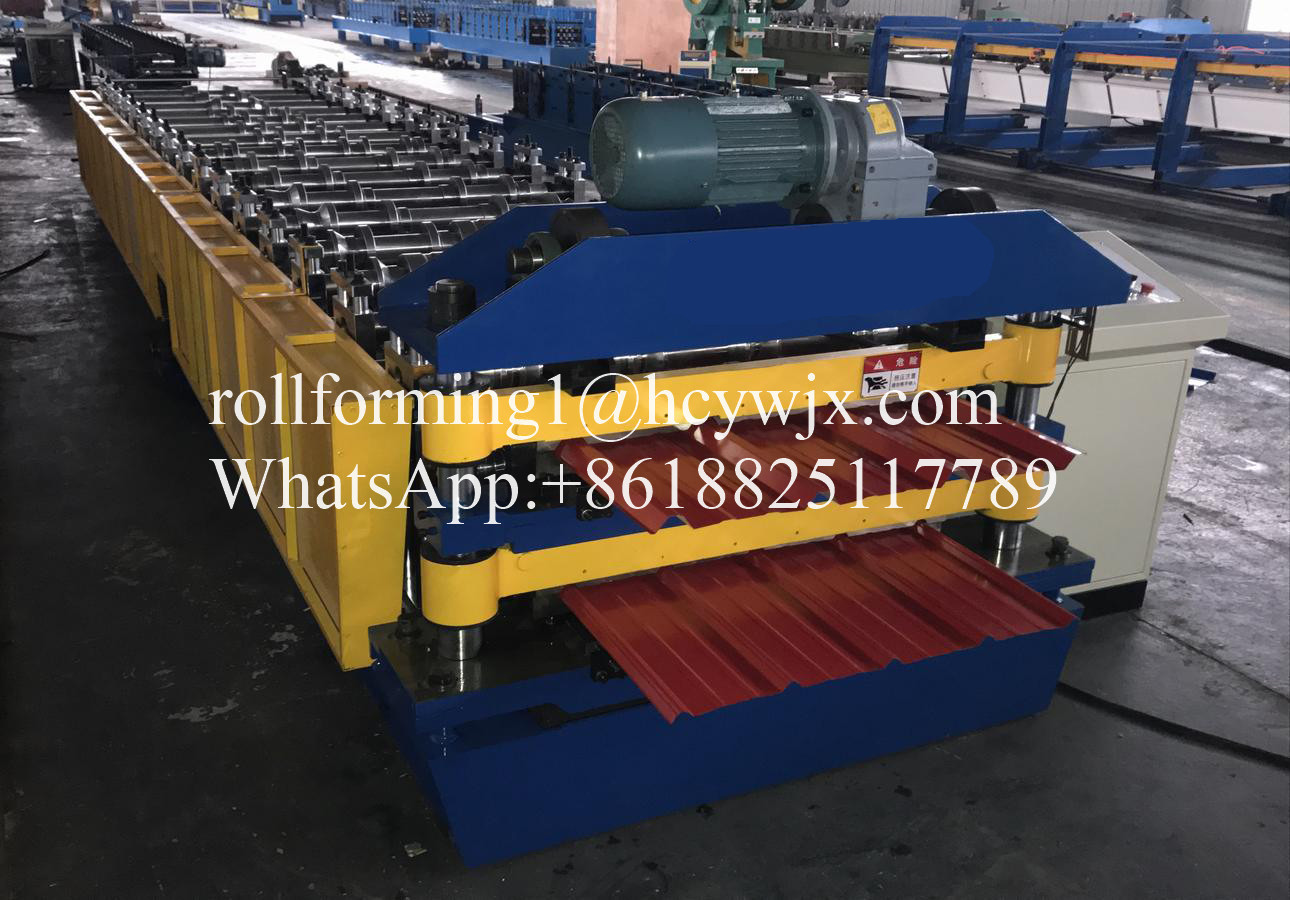

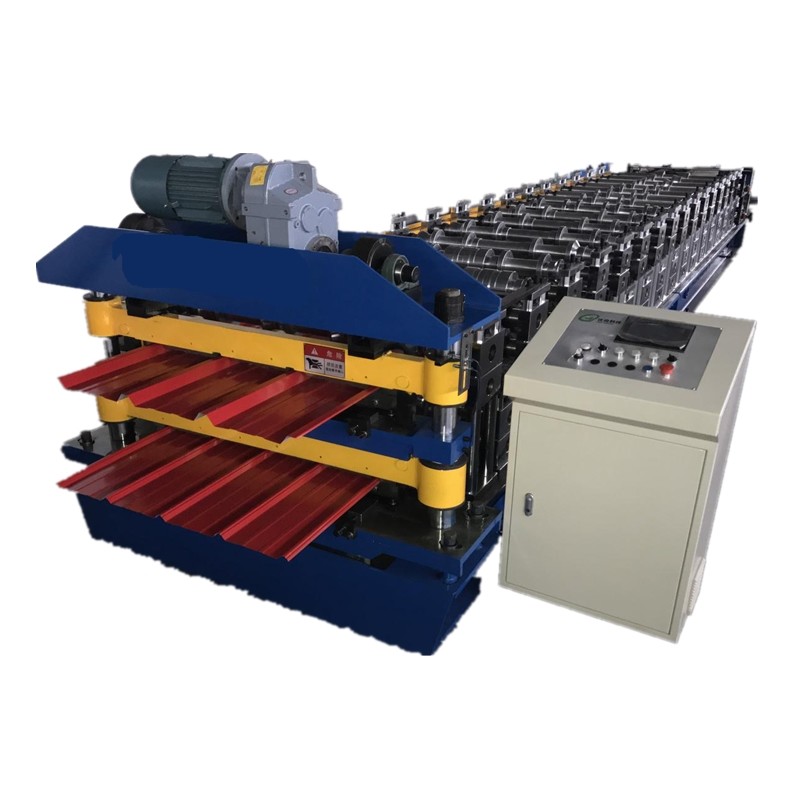

Trapezoidal IBR Roof Panel Double Layer Roll Forming Machine



Component & Technical Parameters

Weight 5.6T
Appearance Size

7350mm*1550mm*1910mm

Rows of Rollers

15rows

15rows

Diameter of Shaft

Φ70mm

Suitable Material

Color Coated plate,Galvanized Board,Aluminum Plate

Width of Raw Material

900/840mm

Thickness of Raw Material

0.3-0.6mm

Productivity

0-15m/min

Total Power

4+4KW

Voltage

380V 50Hz 3Phases

Control System

PLC Control

Flow Chart

Trapezoidal Roll Forming Machine 0

Machine Details

Trapezoidal Roll Forming Machine 1

Trapezoidal Roll Forming Machine 2

Trapezoidal Roll Forming Machine 3

Packaging & Shipping

Trapezoidal Roll Forming Machine 4

1.We have professional technicians for loading.Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 40 feet container to hold.

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

Our Services

1. Warranty :One year,and we will provide technical support for whole life of the equipment.

2. Delivery time: Within 30 days after deposit receipt your payment

3. Guarantee period: 18months free service/ pay service all the machine life.

4. Installation and training If buyers visit our factory and check the machine,we will teach you how to install and use the machine and also train your workers/technician face to face.

Without visiting,we will send you user manual and video to teach you to install and operate.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

We have approved By European CE, ISO and SGS international certification.

Trapezoidal Roll Forming Machine 5Trapezoidal Roll Forming Machine 6
