High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine

High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine
High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine

Large Image :  High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine

Product Details:
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 8000-14000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box.
Delivery Time: 30Days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 Sets/Month

High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine

Description
Type: Corrugated Ironing Wall Panel Roll Forming Machine Usage: Wall
Machine Power: 4+4KW Speed: 15-20m/min
Worker: 1-2 Life Time: 20Years
High Light:

roof tile roll forming machine

,

roof sheet making machine

High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine



Wall and Siding Panel Roll Forming Machine Technical Parameter

Item NO



Description



Offered specification

1.0 Roll forming machine
1.1 Rolling speed UP to 15m/min(not include cutting time)
1.2 Rolling thickness 1.0mm
1.3 Raw material Color painted coils
1.6 Dimension About 8000×1600×1200(mm)
1.7 Effective width 836mm
1.8 Feeding coil width 1000mm
1.9 Roller stations

About 18 stations

1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter Φ76mm
1.12 Transmission By chain 1.2 inch
1.13 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 10m+-1.5mm
1.16 Hydraulic station 4KW



Main Components

No Name Quantity
1 5 ton passive de-coiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Out tables 2 units



Working Flow of Roll Forming Machine



De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→Run out table

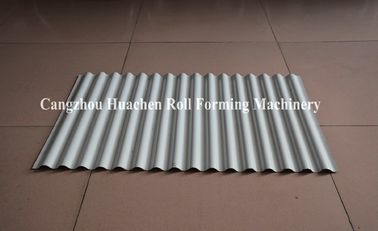

Profile of Product

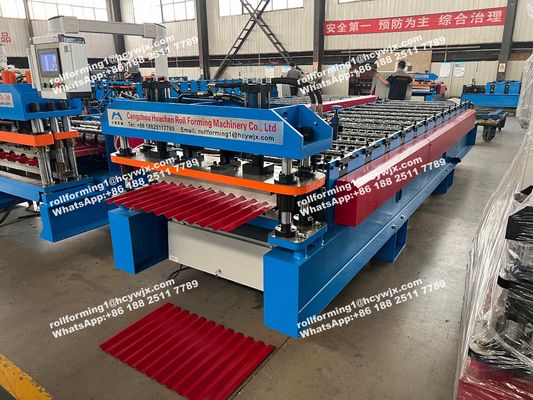

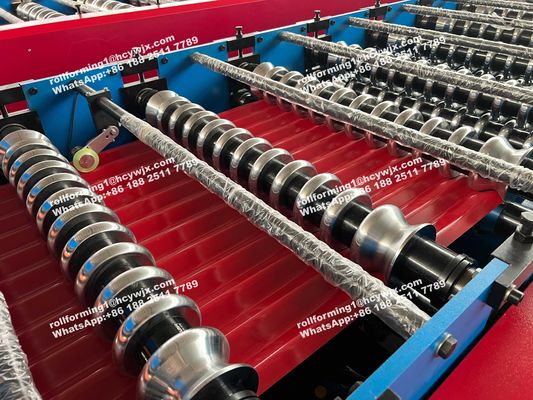

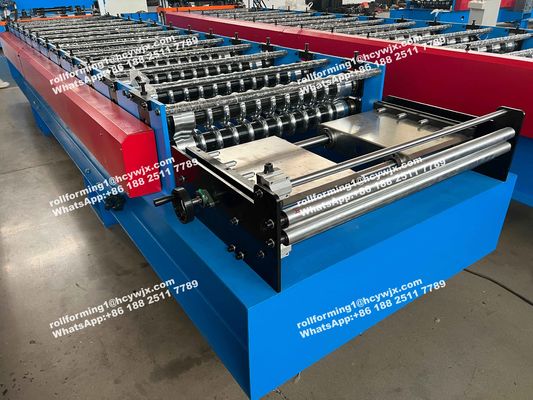

High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine 1

High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine 2High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine 3High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine 4
