PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min

China PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min supplier

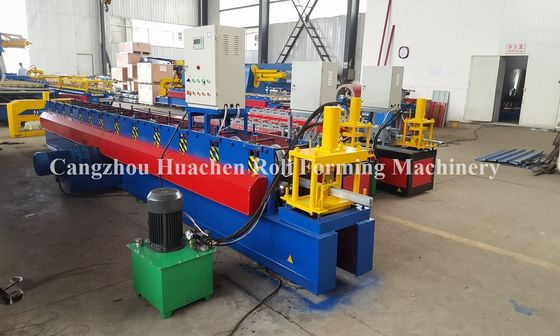

Large Image :  PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min

Product Details:

Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO/CE
Model Number: HC110

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 5000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Color: Blue Type: Automatic
Control System: PLC Control Cutting Method: Fly Saw Cutting
Speed: 8-10m/min

2.Machine parameters

1. Rack: Using 300H steel welding
2. Forming Machine-driven feeding frame forms: lateral slide-style
3. Forming Machine Type: wall-type chain drive. Wall thickness of 14 mm.
4. Shaft Diameter: 45 mm
5. Chains: 1 inch single-row
6. Forming Motor Power: 4KW
7. Forming Machine speed: 8-10m/min
8. Forming Machine Road Number: 12 stations
9. Roll Material: high quality 45 # steel Duan playing pieces
10. Hydraulic station motor: 4kw
11. Rolling thickness :0.8-1 .0 MM
12. Materials Expand Width: 100mm
13. The computer use of PLC, Taiwan and Taiwan reached
14. The machine weighs about 2.5 tons, length of 4 meters wide and 0.88 meters, 0.88 meters high.
. The forming rollers are the key of roll forming machine. We use CAD to design and manufacture the rollers. After CNC lathe, the forming rollers will be harden by vacuum heat treatment and finished the profiles again. These processes make the more accurate forming rollers, avoid the deformation during heat treatment and ensure the rollers preciseness and wear-resisting ability.

3.Components of the processing line

Manual Decoiler------------------------------1 set(free)

Roll Forming Main Station----------------1 set(customer designed)

Oil Pump----------------------------------------1 set(customer designed)

Control Box-------------------------------------1 set(Panasonic PLC or customer designed)

Simple Receiving Table--------------------2 sets(free)

4.Working Process

Aluminum shutter door slat Guide roll forming machine steel roller shutter making machine

5.Pictures Show

Aluminum shutter door slat Guide roll forming machine steel roller shutter making machineAluminum shutter door slat Guide roll forming machine steel roller shutter making machine
