ibr metal Roof Sheet Roll Forming Machine , Roof Panel Forming Machine

China ibr metal Roof Sheet Roll Forming Machine , Roof Panel Forming Machine supplier

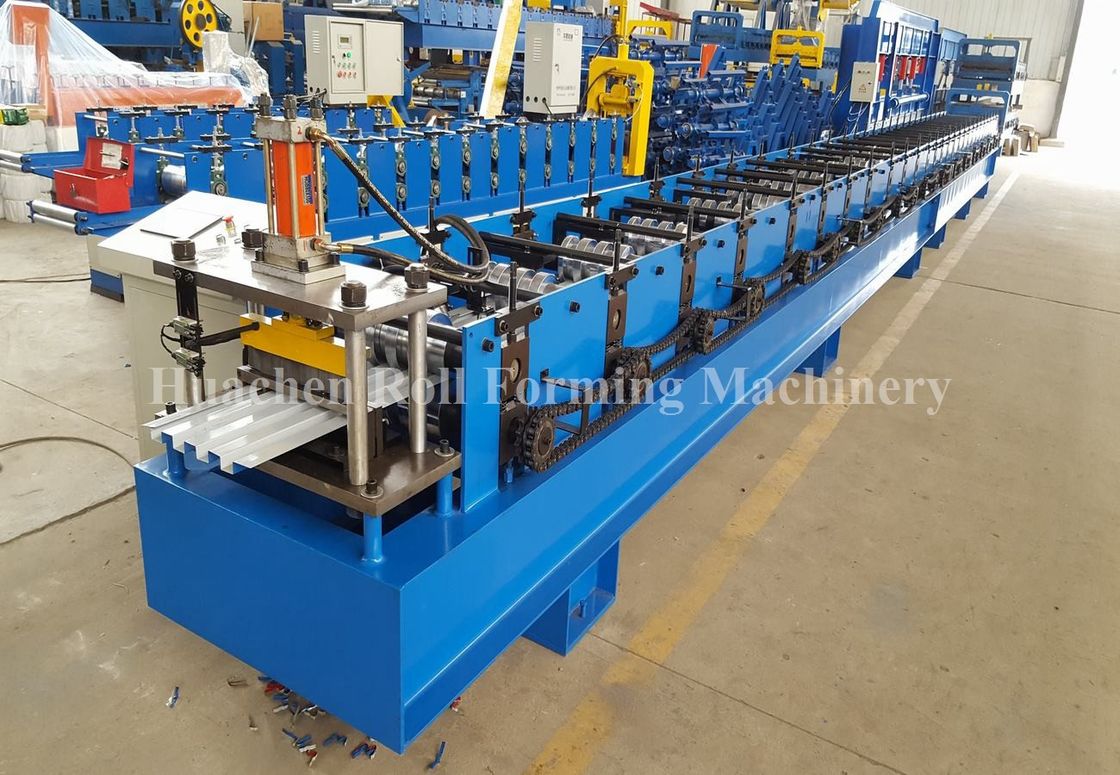

Large Image :  ibr metal Roof Sheet Roll Forming Machine , Roof Panel Forming Machine

Product Details:

Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC25

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Type: High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting Rollers: 26
Roller Material: No.45 Steel Warranty: 12 Month
Dimension: 11*1.3*1.5 M Weight: 3.5T
Voltage: 380V, 50 Hz, 3 Phase

Product Description



1. The Product Description



(1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.



(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter



China market high quality ibr metal roof sheet panel roll forming machine



(3).Technical Detail



A. General

Suitable Material HRB60 or equivalent
Material Thickness 0.2-0.6 mm

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.



B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.



C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP14ES

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.



ibr metal Roof Sheet Roll Forming Machine , Roof Panel Forming Machineibr metal Roof Sheet Roll Forming Machine , Roof Panel Forming Machineibr metal Roof Sheet Roll Forming Machine , Roof Panel Forming Machine

9. FAQ



1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.

2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.

3.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
