Professional full c lip channel purlin roll forming machine high Efficiency

China Professional full c lip channel purlin roll forming machine high Efficiency supplier
Professional full c lip channel purlin roll forming machine high Efficiency supplier Professional full c lip channel purlin roll forming machine high Efficiency supplier

Large Image :  Professional full c lip channel purlin roll forming machine high Efficiency

Product Details:

Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC90*40

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Type: Steel U Purlin Roll Forming Machine For Special U Purlin Profile With 15 KW Main Power Rollers: 14
Roller Material: No.45 Steel Warranty: 12 Month



Professional full c lip channel purlin roll forming machine high Efficiency

Product Description



1. The Product Description



(1). Brief Introduction

The purlin made by C Purlin Roof Steel Profile Roll Forming Machine is widely used in the main body stress

structure of the large and medium-size construction, such as the plant, the warehouse, locomotive shed,

hangar, exhibition building. it is known as economic and high efficient building material.

The steel C purlin has following features:
a. Light weight, low cost;
b. Easy to operate: the purlin can be formed and punched according to your actural need;

and it can be installed directly.

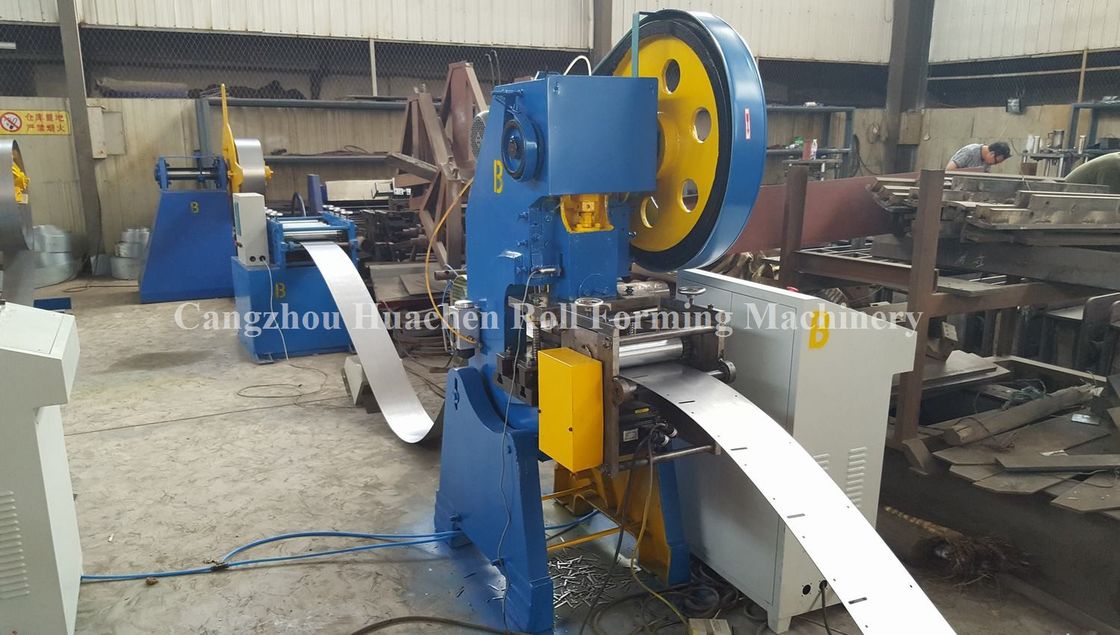

(2). Working Flow of Roll Forming Machine

Coil decoiling-Coil feeding-Leveling-Roll forming-Punching(optional)-Length measuring-Sheet

cutting-Sheet surpporting

Professional cheap full c lip channel purlin roll forming machine



(3).Technical Detail



A. General

Suitable Material Hot rolled strip steel, Q235 or equivalent
Material Thickness 1.5-3.0 mm
Material Width 175-465mm
Dimension About 10.0*1.2*1.75m(L*W*H) , as per the drawing
Working Space About 20.0*2.7m(L*W)

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.



B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 400# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.



C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP14ES

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.



Our Advantage

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 20 Years Experience


Reference Profile Drawing

Professional full c lip channel purlin roll forming machine high EfficiencyProfessional full c lip channel purlin roll forming machine high EfficiencyProfessional full c lip channel purlin roll forming machine high Efficiency
