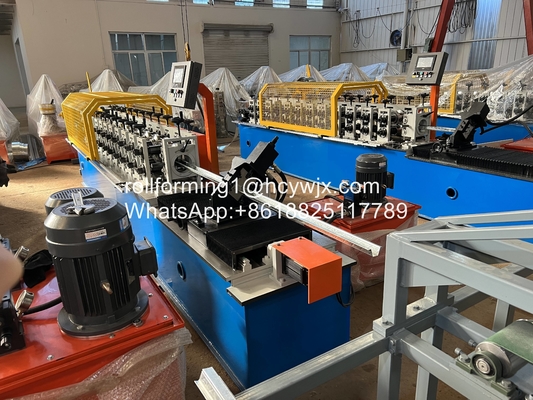

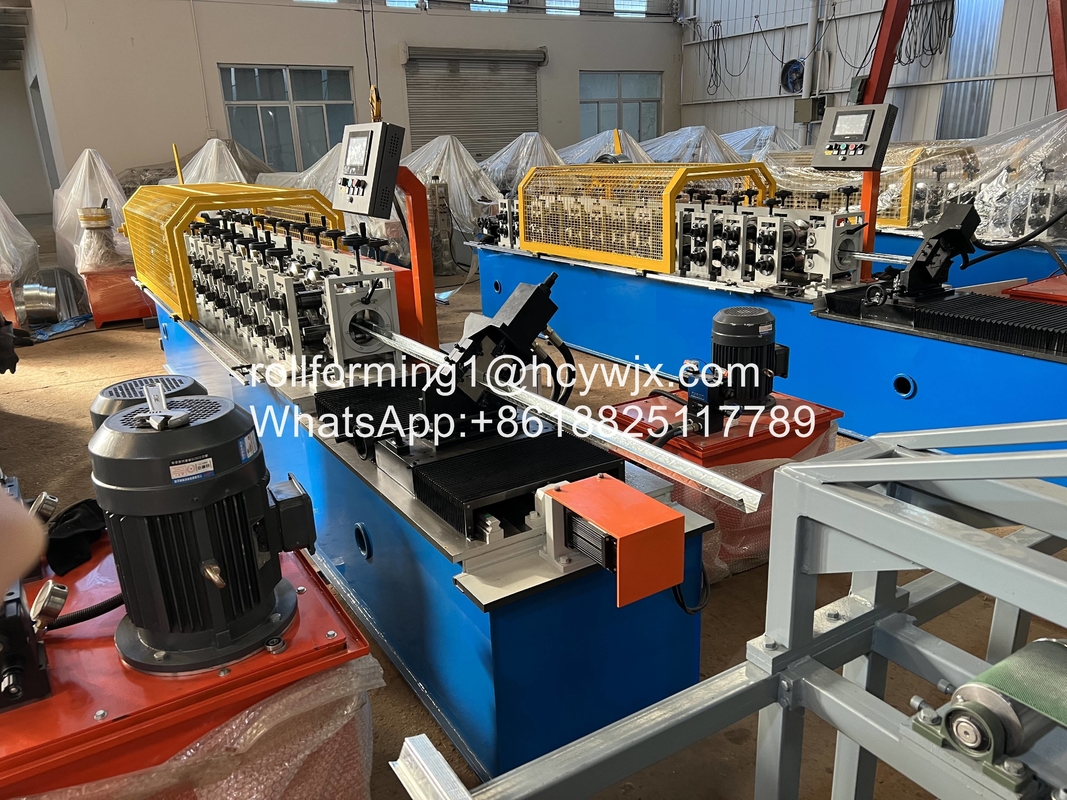

Strip Purlin 1.2 Mm Ceiling Roll Forming Machine Plc Computer Control

Strip Purlin 1.2 Mm Ceiling Roll Forming Machine Plc Computer Control
Strip Purlin 1.2 Mm Ceiling Roll Forming Machine Plc Computer Control Strip Purlin 1.2 Mm Ceiling Roll Forming Machine Plc Computer Control

Large Image :  Strip Purlin 1.2 Mm Ceiling Roll Forming Machine Plc Computer Control

Product Details:
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC210
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Strip Purlin 1.2 Mm Ceiling Roll Forming Machine Plc Computer Control

Description
High Light:

1.2 mm ceiling roll forming machine

,

computer control ceiling roll forming machine

,

plc control purlin roll forming machine

Product Description
Steel Keel Roll Forming Machine
 Work Flow
Decoiler—Roll Forming—Cut-to-length—Punching—Run out table
 Equipment Components
1. Manual Decoiler
2. Main Roll Forming Machine
3. Hydraulic Cutting and Punching Device
4. Hydraulic Station
5. PLC Computer Control
6. Output Table

Equipment Performance
 Thickness of Material: 0.2-1.2 mm
 Production Speed: 6-12m/min
 Total Installed Capacity: about 11.5KW
 Equipment Overall Dimensions: 11m*0.8m*1.2m
 Weight of Equipment: 7T

Technical Parameters of the Main Parts
1. Decoiler
 Weight Capacity of Decoiler: 5T
 Manual Decoiler

2. Main Roll Forming
 Frame Structure: wallboard type
 Forming Stations: 13-18
 Shaft Diameter: φ76mm
 Main Motor Power:7.5KW
 Transporting Type: chain transmission
 Material of roller: adopts the high quality GCr15 steel forging steel heat treatment after numerical control processing

3.Hydraulic Cutting
 Power: 4KW
 Cutting Tools: Cr12

4. Control System: whole line adopt Japanese Panasonic PLC control, liquid crystal display touch screen, man-machine interface.operators through the procedure set to run automatically, and to control the process control, product length digital set, length can be adjusted
.
Strip Purlin 1.2 Mm Ceiling Roll Forming Machine Plc Computer Control 0
Sales Service

Quality and Service Assurance:
1.we have Q & C department in our factory and our engineer have much experience and can design the suitable machine for our clients.
2.our machine can produce the nice production, can guarantee good quality.the production is confirm to the national standard even the international standard
3.the products should not have scratch and the flatness
Technical R & D Department: design teams for different kind of production line.

package:
1.As to the roll forming machine's package, it should be nude.
2.we'll protect the machine well before shipment, to prevent machines from rusting and damage.

Repairs:
Warranty: 1 year since the date of B / L on
Installation and Commissioning:. We will send professional engineers to buyers' country for installation and commissioning Buyer pays each engineer 100USD / Day besides the round-tickets, room and board.
