Product Details:
|
| Certificate: | ISO9001:2000;CE | Type: | Glazed Tile Roof Sheet |
|---|---|---|---|
| Control System: | PLC Control | Raw Material Thickness: | 0.3-0.6mm |
| Warranty: | 1 Year | Forming Speed: | 2-4m/min |
| High Light: | cold roll forming machine,roof tile roll forming machine |
||

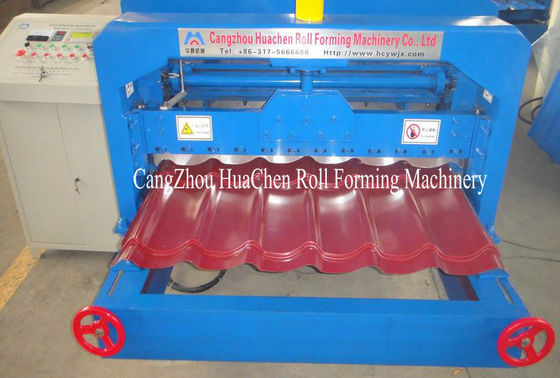

Auto Glazed Tile Roll Forming Machine , roofing sheet forming machine PLC Control
Characteristic of Glazed Tile Roll Forming Machine
Main Components of Glazed Roof Tile Roll Forming Machine
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Main Glazed Tile Roll Forming Machine | 1 Unit |
| Hydraulic Pressing for Step | 1 Unit |
| Hydraulic Cutting System | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Box | 1 Unit |
| Support Tables | 2 Units |
Technical Specifications of Glazed Tile Roll Forming Machine
| Machine Name | Glazed Tile Roll Forming Machine | |
| Material | Thickness | 0.3-0.7mm |
| Coil width | Custom-made, 1000mm or 1200mm or 1250mm | |
| Yield Strength | 250-300 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Glazed Tile Roll Forming Machine | Forming Stations | 13-18 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 5.5KW | |
| Pressing Device | Pressing Type | Hydraulic type pressing |
| Pressing Mould | Cr12 Mov steel, HRC58-62 | |
| Cutting Device | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| PLC Electrical Control Board | PLC | PANASONIC Brand |
| Inverter | YASKAWA Brand | |
| Touch screen | PANASONICE | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Hydraulic Power | 5.5KW | |
| Runout Tables | Table type | Simple nonpower type |
| Function | To support the finished panels | |
Working Flowing of Glazed Tile Roll Forming Machine
Decoiler ---> Fedding Guide ---> Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table
Application of Glazed Tile Roll Forming Machine
Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
