Product Details:
|
| Condition: | New | Type: | Glazed Tile Roof Sheet |
|---|---|---|---|
| Control System: | PLC Control | Raw Material Width: | 1250mm |
| Raw Material Thickness: | 0.3-0.6mm | Power(W): | 4+5.5kw |
| Warranty: | 12 Months After Shipping | ||
| High Light: | roll forming equipment,cold roll forming machine |
||

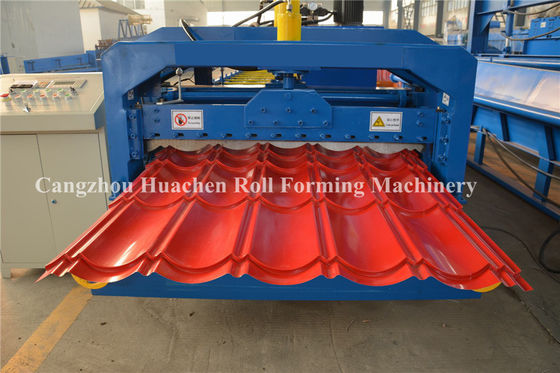

1250mm automatical Roof Tile Roll Forming Machine 7.5KW 380V , Efficiency
Main technical features
Techincs flow
Decoiling---- guiding and feeding--- roll forming--- cut to length--- run out table
Specification
| Item | Parameter | ||
| Model | Single Press | Double Press | |
| Material | Type | Cloured steel sheet | |
| Thickness | 0.4-0.8 | ||
| Yield strength | 230-350 | ||
| Max.forming speed | 4-5 | 10-12 | |
| Roller material | 45#Steel with chrome plated | ||
| Roller driven type | Chain transmission | ||
| Controller | PLC | ||
| Operation | Touch screen+button | ||
| Hydraulic system pressure | 13 | 16 | |
| Hydraulic station motor power | 7.5 | 9 | |
| Main motor power | 4 | 11 | |
| Total power | 11.5 | 20 | |
| Total weight | About 4.5T | ||
Producing process sketch of glazed steel tile roll forming machine:
