Product Details:
|
| Weight: | 3000kg-20000kg | Type: | Glazed Tile Roof Sheet |
|---|---|---|---|
| Control System: | PLC Control | Raw Material Width: | 1250mm |
| Raw Material Thickness: | 0.3-0.6mm | Warranty: | 12 Months After Shipping |
| Voltage: | 380V,50HZ,3phase | ||
| High Light: | cold roll forming machine,roof tile roll forming machine |
||
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 16 rows
4. Dimensions: 8.3m*1.55m*1.51m
5. Power: 7.5kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.8mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Processing precision: Within 1.00mm
11. Control system: PLC control
Description:
Composition of machine
Roll forming main machine……………………………1 unit
Cutting system………………………………………..1 unit
Pressing system………………………………………1 unit
Manual de-coiler……………………………………… 1 unit
Control panel…………………………………………..1 unit
Hydraulic station…………………………………… …1 unit
Manual out table……………………… ……………….2 unit
Spare tools……………………………………………...one box
Applications:

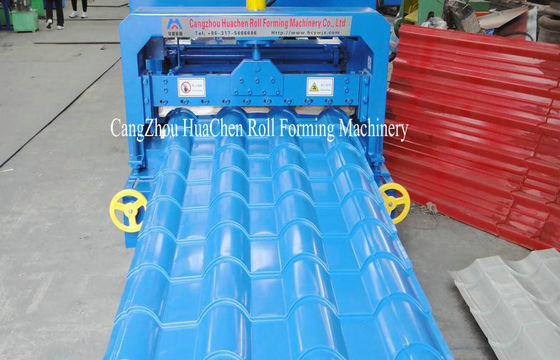

The Roofing tile roll forming machine design allows for the production of traditional tile panels and fastened tile panels. The step width and depth can be varied via the touch screen control. It produces a profile that has an adjustable depth and an adjustable reveal that gives panels the true appearance of clay tiles. This machine can produce through fastened panels in steel. It is capable of forming two different roof tiles with the same tooling, creating a perfect, scrape-free finish.
Specifications:
| 1 | NAME | Glazed roll forming machine made in china |
| 2 | APPLICATION | Roll forming machine used for producing metal roof panel |
| 3 | MATERIAL SPEC | Colored steel sheet,galvanized steel sheet, aluminium sheet |
| 4 | THICKNESS OF COIL | 0.3-0.8 mm |
| 5 | ROLLER MATERIAL | High grade NO.45 forged steel, with hard chrome plating on the surface of roller with thickness 0.05 mm |
| 6 | SHAFT MATERIAL | High grade NO.45 carbon wrought steel |
| 7 | CUTTING BALDE | Cr 12 mould steel with quenched treatment |
| 8 | DIAMETER OF SHAFT | 70mm |
| 9 | THICKNESS OF MEDIUM PLATE | 14mm |
| 10 | MAIN FRAME | 300 H-steel |
| 11 | NUMBER OF FORMING STEPS | 16 rows |
| 12 | PRODUCTIVITY | 3-8 m/min |
| 13 | MAIN MOTOR POWER | 7500w |
| 14 | HYDRAULIC STATION POWER | 3000w |
| 15 | HYDRAULIC PRESSURE | 10-12 MPa |
| 16 | CONTROLLING SYSTEM | PLC computer control |
| 17 | APPEARANCE SIZE | 8.3m*1.55m*1.51m |
| 18 | TOATL WEIGHT | 6600 kg |
| 19 | VOLTAGE | 380V 3 Phase or up to you |
| 20 | COLOR | Blue or green |
| 21 | PACKING | Waterproof package |
Competitive Advantage:
One roofing tile roll forming machine only can produce one profile, we can manufacture as per customer
provided drawings or real objects of sectional materials, customization is welcome. The following is some
profiles as reference.
We have developed more than 10 series of steel roof metalic sheet machine which can meet the requirements of all steel construction, such as production lines for wall &roof sheet, color steel tile, C&Z&Wshape purlin and floor decking sheet as well as production line for all kinds of sandwich panels, curving machines for roof sheets. We also supply production lines of guardril sheet for expressway, shutter doors,garages doors downpipe. Besides, we devoted to the research and development of various kinds of other products related to steel structure, shearing machine, slitting machine, etc
