Product Details:
|
| Size: | 28-200-800 | Forming Type: | Cold Roll Forming |
|---|---|---|---|
| Feature: | High Capacity | Certificate: | CE ISO |
| High Light: | roll forming equipment,roof tile roll forming machine |
||

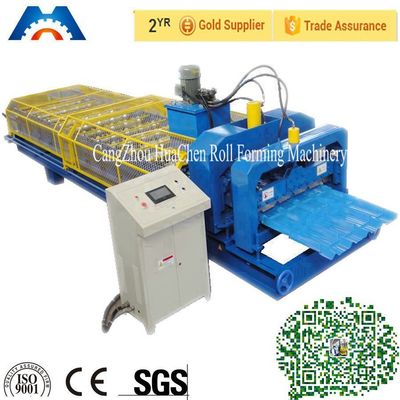

Cost Effective Metal Roof Glazed Tile Roll Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000mm
3. Rollers: 12 rows
4. Dimensions: 7.2*1.45*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Cost Effective Metal Roof Glazed Tile Roll Forming Machine Main parameter
|
No. |
Main parameter of Cost Effective Metal Roof Glazed Tile Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
12 rows |
|
4 |
Dimensions |
7200*1450*1510m |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
4m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting
Application
This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
Competitive Advantage
1. save space
2. easy install
3. perfect service
4. excellent quality
5. save freight
