Product Details:
|
| Type: | Shutter Door Frame Roll Forming Machine | Usage: | Door Frame |
|---|---|---|---|
| Capacity: | 10m/min | Thickness: | 1.5-2.5mm |
| Length: | Any | Power: | 5.5+4KW |
| Automatic: | Yes | Life Time: | 20 Years Above |
| Warranty: | Whole Life | ||
| High Light: | metal Roll Forming equipment,steel frame roll forming machine |
||

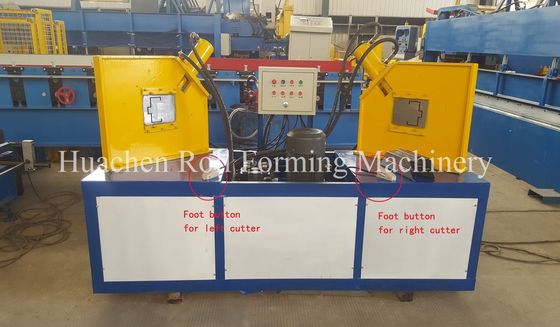

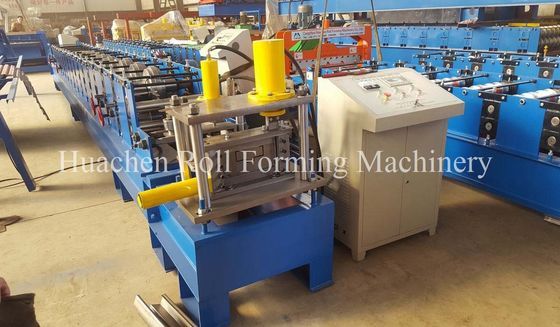

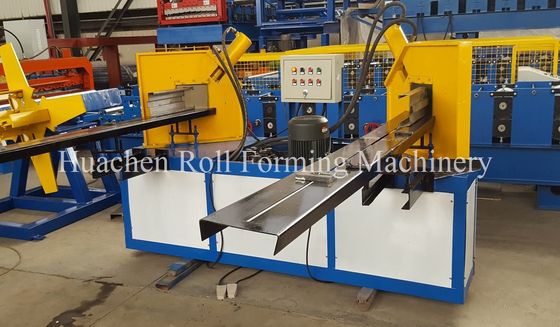

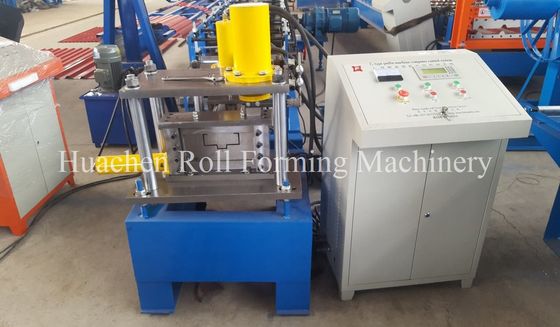

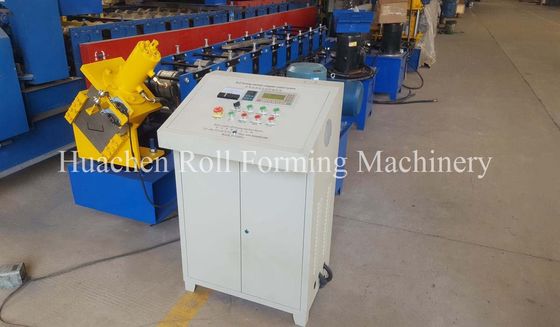

High Precise Roll Forming Machinery Shutter Door Frame 17 Rows
To achieve maximum customer satisfaction, we are highly engaged in offering High Precise Shutter Door Frame Roll Forming Machine. Our highly skilled professional make the use of quality approved components & cutting edge methodology keeping in mind the set industry norms. The offered High Precise Shutter Door Frame Roll Forming Machine is available in various specifications as per the clients exact requirements at market leading prices. This High Precise Shutter Door Frame Roll Forming Machine is appreciated among our clients for its sturdy construction, robust structure, high performance, reliability and less maintenance.
Description:
High Precise Shutter Door Frame Roll Forming Machine Main parameter
|
No. |
High Precise Shutter Door Frame Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
260/310mm |
|
3 |
Rollers |
17 rows |
|
4 |
Dimensions |
8200*1350*1510mm |
|
5 |
Power |
5.5+4kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
0.6-1mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ80mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system- cutting
Competitive Advantage
1. CE certification
2. ISO certification
3. working life 20 years
4. high quality steel
5. High efficiency
