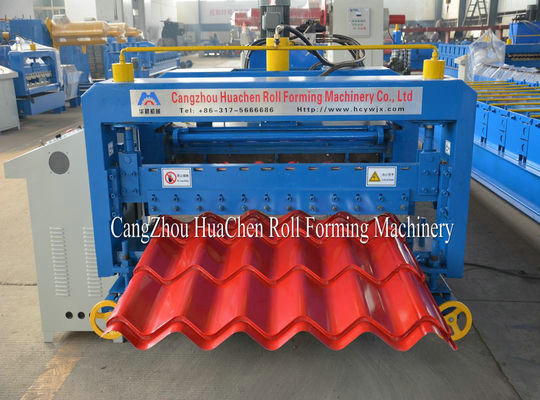

Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile

China Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile supplier
Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile supplier Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile supplier Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile supplier Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile supplier

Large Image :  Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile

Product Details:

Place of Origin: CN
Brand Name: HC
Certification: ISO CE
Model Number: HC40

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-20000 per set
Packaging Details: Standard export package
Delivery Time: 40 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Type: Glazed Tile Roll Forming Machine Suitable Market: European And America
Material: PPGI GI Voltage: 380V Or Customized
Worker: 1 Only Capacity: 2-4m/min
Power: 5.5+4KW

Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile



The colored iron steel metal tiles produced by glazed tile roll forming machine look beautiful, elegant and noble.They are widely used as the roof of garden, factory, hotel, exhibition center and villa, etc.
Coil width: 1250mm or 1220mm or 1200mm, customized.
Coil thickness: 0.3-0.6mm
Decoiler: 5 Ton Manual decoiler or Hydraulic decoiler
Speed of whole line is 0-5m/min ( including pressing and cutting time )
Working speed is 0-5m/min.
Forming Stations: about 13-22 steps
Diameter of Axis: ¢ 70mm
Dimension of Main Forming Machine: about 11000MMX1500MMX1400MM ( LXWXH )
Weight of Machine: about 6.8 Ton
This tile roll forming machine suits for coiled metal material, make required shape after processing of uncoiling, forming continuously pressing and cutting to length. Adopt PLC controlling system, AC frequency adjusting-speed technology, so that realize automatic production continuously.



Features:

Impeccable performance

Robust construction

Maintenance free

Long functional life



Main Parameters of SCustom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile

Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile
1 Suitable material Color steel sheet ,galvanized steel sheet, aluminium sheet
2 Width of material 1250mm or as you required
3 Thickness of material 0.3-0.6mm or as your needs
4 Working speed 2-4m/min
5 Main motor power 4kw with cycloidal reducer
6 Hydraulic station power 4kw
7 Electrical control system PLC control system
8 Shaft diameter 70mm
9 Roller station

18 rows

10 Material of roller High grade 45# forged steel plated with hard chrome plating
11 Material of cutting Cr12 mould steel with quenched treatment
12 Voltage 380V 3phase 50HZ or as the customer's requirements
13 Dimension 9400x1500x1510mm
14 Weight About 4.5T
15 Working time Can be 24 hours
16 Workers 1-2 Only









































Please Note: All the parameters can be designed as your requirement.

Let me show you how to operate Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile

Decoiling→Feeding & Guiding→Roll Forming→Cutting→Finished Products To Support Table



Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel TileCustom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Tile



Worry about Packing and delivery ?

1. Main Steel Villa Roof Glazed Tile Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)



2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.



3. One set of machine needs a 40' container to shipping.
