Product Details:
|
| Suitable Material: | PPGI, GI,Aluminum | Thickness: | 0.3-0.8mm |
|---|---|---|---|
| Width: | Cutomized | Condition: | New |
| Type: | Tile Forming Machine | Use: | Roof And Wall |
| Production Catacity: | 10-20m/min | Voltage: | 380V Or Customized |
| Power: | 4+4kw | Dimension(L*W*H): | 9.2*1.55*1.91m |
| Weight: | 7.3T | Warranty: | 1 Year |
| Certificate: | CE ISO | After-sales Service Provided: | Engineer Available To Service Machine Overseas |
| High Light: | sheet metal roll forming machines,corrugated roll forming machine |
||

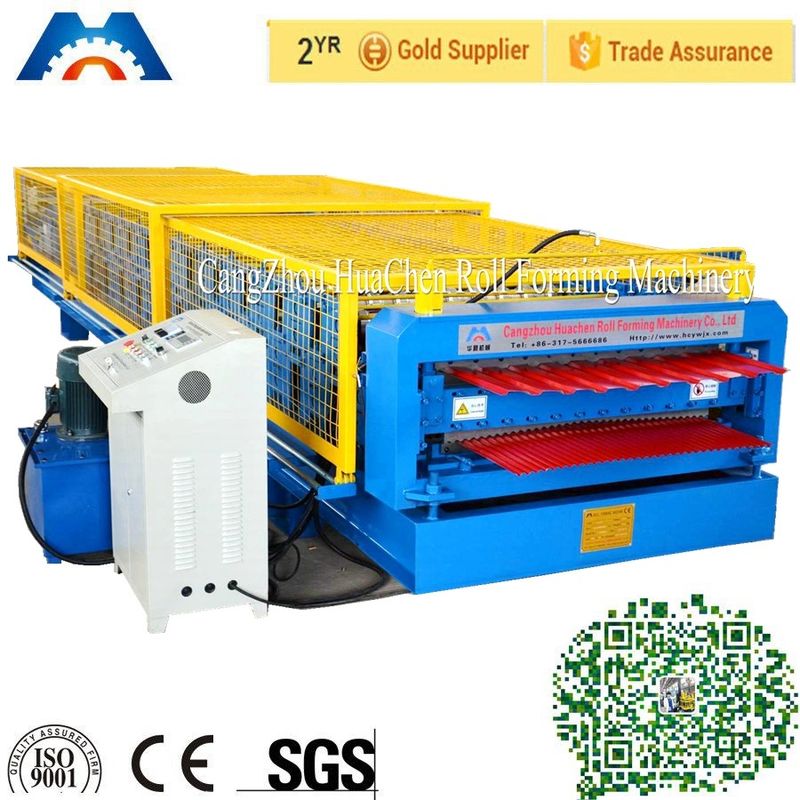

HC12 0.3 - 0.8mm Blue Double Layer Roll Forming Machine For Roof Cladding
Huachen, being a quality conscious firm, are committed to provide world class Roll Forming Machinery for sale. Based in Botou of China, we are known to be a commendable manufacturer, exporter, supplier. It is our hard work & dedication that has enabled us to won the trust of numerous buyers across the globe. Our Roll Forming Machinery is fabricated from high quality materials/components, under expert supervision. Some of the factors that set our machines apart are as follows
Easy operation
High speed
Less power consumption
Reliable and efficient
Convenient to maintain
| High Speed Blue Double Layer Roll Forming Machine For Roof Cladding | ||
|---|---|---|
| 1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
| 2 | Width of material | 1250mm or as you required |
| 3 | Thickness of material | 0.3-0.6mm or as your needs |
| 4 | Working speed | 10-20m/min |
| 5 | Main motor power | 4kw with cycloidal reducer |
| 6 | Hydraulic station power | 4kw |
| 7 | Electrical control system | PLC control system |
| 8 | Shaft diameter | 70mm |
| 9 | Roller station |
Up layer:12rows Down layer:16 rows |
| 10 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11 | Material of cutting | Cr12 mould steel with quenched treatment |
| 12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
| 13 | Dimension | 9200x1500x1910mm |
| 14 | Weight | About 7.3 T |
| 15 | Working time | Can be 24 hours |
| 16 | Workers | 1-2 Only |
Please Note: All the parameters can be designed as your requirement.
Decoiling→Feeding & Guiding→Roll Forming→Cutting→Finished Products To Support Table
1.Main Double Layer Roll Forming Making Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
We do high standard roll forming machine for export about 9 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 80 countries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.
