Product Details:
|
| High Light: | roll form equipment,metal forming machines |
||
|---|---|---|---|

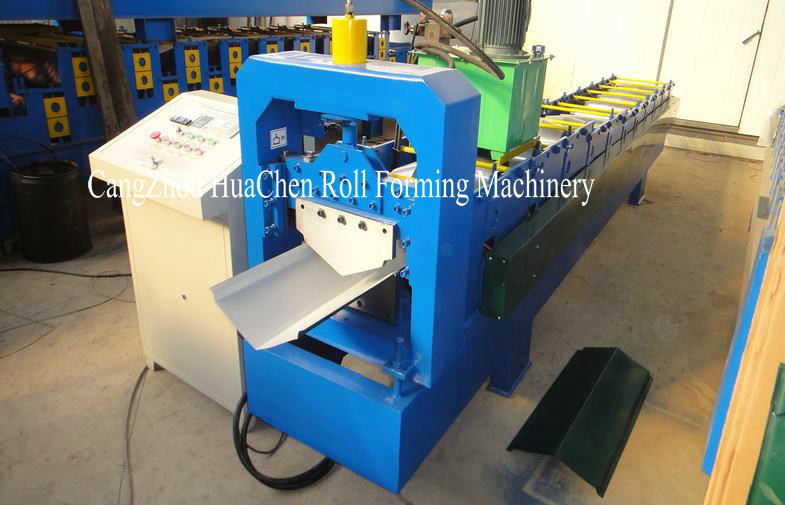

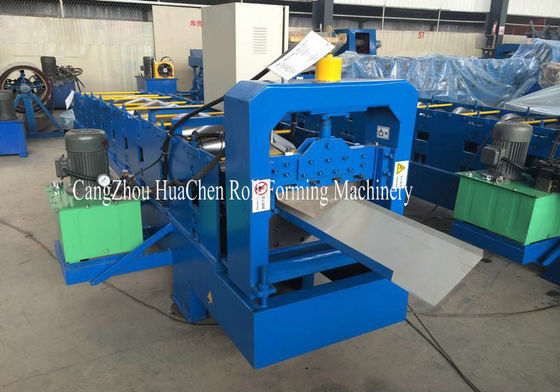

380V Industrial Ridge Cap Roll Forming Machine , Cap Making Machines
Color Coated Steel Sheet Ridge Cap Roll Forming Machine, Cap Making Machines
1. Working Flow: 380V Industrial Useful Walley Ridge Cap Roll Forming Machine
Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting
Quick Detail: 380V Industrial Useful Walley Ridge Cap Roll Forming Machine
1. Suitable to process: Color steel plate
2. Width of the plate: 400mm

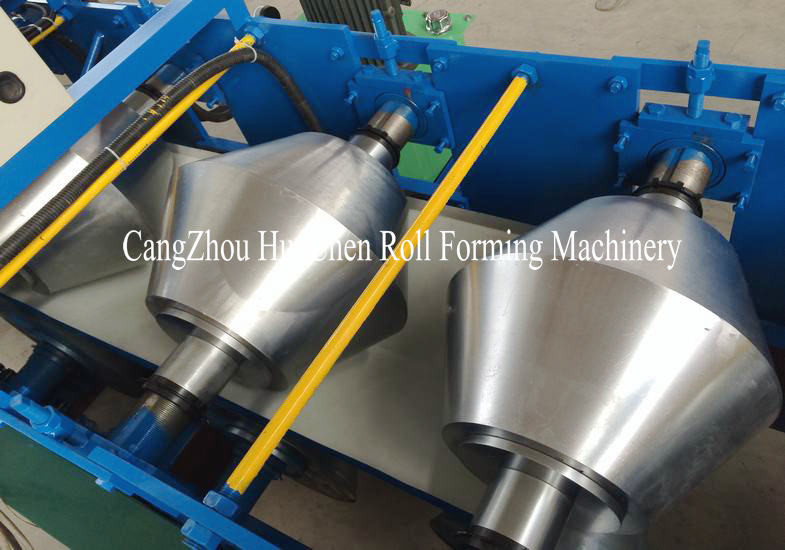

3. Rollers: 11 rows
4. Dimensions: 5.4*1.15*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description: 380V Industrial Useful Walley Ridge Cap Roll Forming Machine
Ridge Cap Roll Forming Machine Main parameter
|
No. |
Main parameter of Ridge Cap Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
400mm |
|
3 |
Rollers |
11rows |
|
4 |
Dimensions |
5300*1150*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ66 mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting
Application

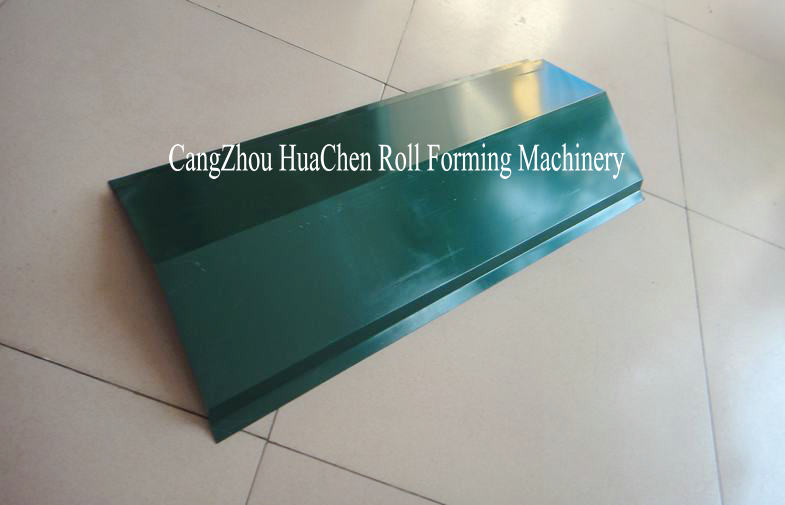

This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. save space
2. easy install
3. perfect service
4. excellent quality
5. save freight
