Product Details:
|
| Type: | Double Layer Roll Forming Machine | Usage: | Roof |
|---|---|---|---|
| Material: | PPGI GI | ||
| High Light: | metal roll forming machine,sheet metal roll forming machines |
||

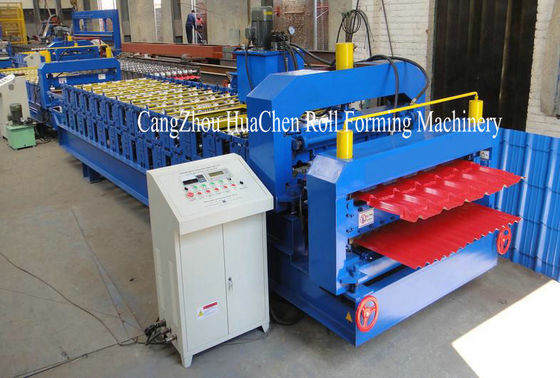

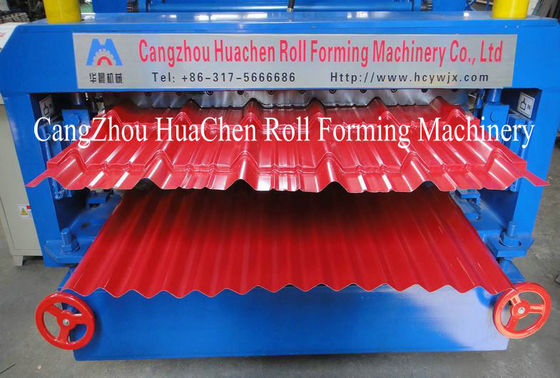

Roof Tile Double Layer Roll Forming Machine Metal Wall , Color Steel Plate
Metal Profile Sheet Making Machine, Small Roof Tiles Making Machine China
1.Working Flow: Metal Wall And Roof Tile Double Layer Roll Forming Machine
Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting
2 Quick Detail: Metal Wall And Roof Tile Double Layer Roll Forming Machine
1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 12/12 rows
4. Dimensions: 8.1*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description: Metal Wall And Roof Tile Double Layer Roll Forming Machine
Double layer glazed tile roll forming machine Main parameter
|
No. |
Main parameter of Double layer glazed tile roll forming machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1250mm |
|
3 |
Rollers |
upper level :12rows Down level :12 rows |
|
4 |
Dimensions |
8100*1550*1910mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
upper level :4m/min Down level:20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- press form-cutting
Application

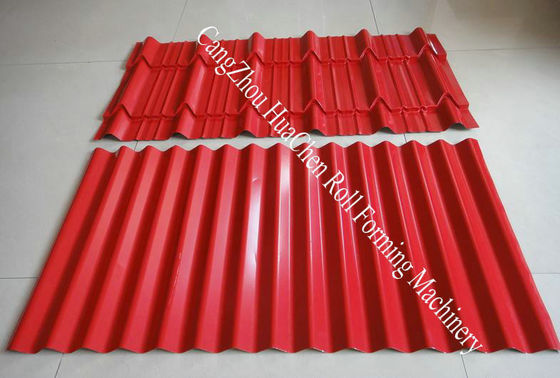

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
Competitive Advantage
1. Pretty appearance
2. Various special model
3. mature foreign trade team
4. professional designing team
5. Lifetime maintenance
Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.
2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.
3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.
4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.
5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
