Rock Wool Sandwich Panel Production Line Roll Forming Machine 250mm Thickness

China Rock Wool Sandwich Panel Production Line Roll Forming Machine 250mm Thickness supplier
Rock Wool Sandwich Panel Production Line Roll Forming Machine 250mm Thickness supplier Rock Wool Sandwich Panel Production Line Roll Forming Machine 250mm Thickness supplier Rock Wool Sandwich Panel Production Line Roll Forming Machine 250mm Thickness supplier

Large Image :  Rock Wool Sandwich Panel Production Line Roll Forming Machine 250mm Thickness

Product Details:

Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: sandwich

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30 days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Components: Colorful Steel Plate Discharge Rack, Corrugated Unit ( Tile Press ), Composite Host Unit, Finished Cutting Unit ( Cutting Part ), Conveyor Frame ( Towing Rack ), Auxiliary Equipment. Foam Machine Size: 36000mm × 3000mm × 2800mm
Press Width: 1200 Mm Number Of Molding Rows: Row 13 -- 15
Hydraulic Station Power: 3kw Host Power: 3kw

250 mm thickness of rock wool sandwich panel roll forming machine



Rock wool sandwich plate in steel structure steel block should be as far as possible in shear captain, especially for thin wall steel roof truss, due to the material request right, good electric sawing method, not only high efficiency, and smooth level off, good quality and the length of the error can be controlled within + / - 1 mm.The rotary position of the worktable is realized by the gear set installed on the end of the upper shaft, the drive drive pin gear, and the rotary slot wheel mounted on the six-sided rotating shaft to realize the dividing positioning and ensure the welding quality.

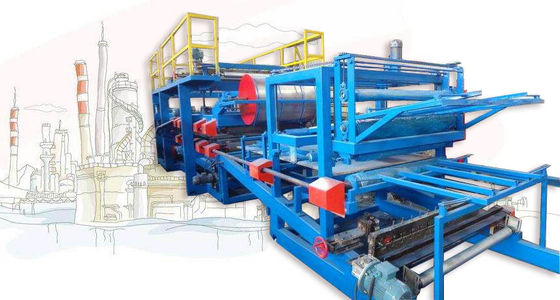

Rock Wool Sandwich Panel Production Line Roll Forming Machine 250mm Thickness

No

1



Electric control system

PLC adopts touch screen, and frequency converter adopts Detal

2



Advantages of the machine

smooth surface, no abrasion, and firm adhesion

3

Material releasing frame

it is composed of bracket and material releasing coil core, bearing 5-7 tons



The rock wool sandwich plate by the bonding pressure on craft, trimming, pressure tank, blanking, forming sandwich board tongue-and-groove type, integral sex is good, high stiffness and impact resistance, mechanical properties of shear and thermal insulation, heat insulation, sound insulation, moistureproof, etc.Its board length is not restricted, can reach more than 12 meters, completely accord with the technical design on fire protection requirements.In addition, it overcomes the defects of insufficient integrity, stiffness, flexure resistance and poor impact resistance.

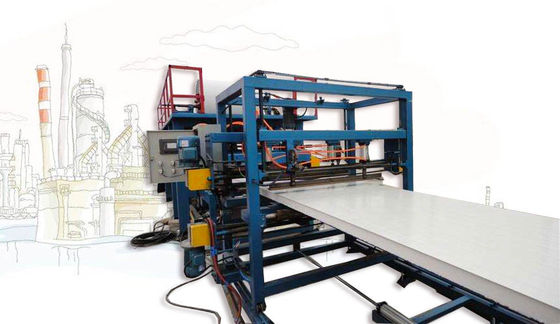

Rock Wool Sandwich Panel Production Line Roll Forming Machine 250mm Thickness



The rock - cotton sandwich plate machine is mainly divided into five - type machine and seven - type machine.In other words, the self-selected model of model 5 is 950 foam type, 980 self-locking type, 980 lap type, 970 bite type and 970 foam lap type.



It is mainly divided into five types and seven types.The self-selected model of model 5 is 950 foam type, 980 self - locking type and 970 foam lap type.There are more models of model 7

The two models are 950 rock wool type and steel band sealing side box.



Main parameters of the press:

(1) the compressor captain is 7500mm. The fuselage frame is welded with 300H steel.

(2) the press roller is 45# steel, and the surface is plated with hard coils

(3) wall plate type, wall plate thickness of 12mm

(4) the press shaft is made of 45# round steel and the shaft is 68mm

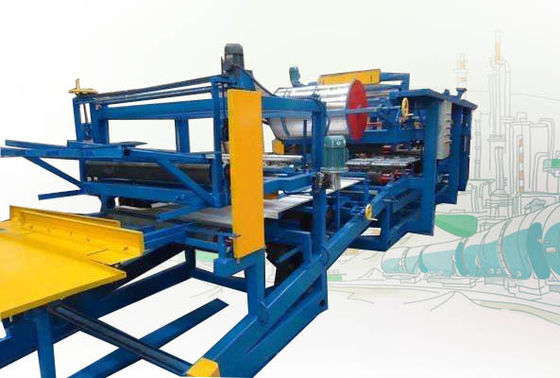

Rock Wool Sandwich Panel Production Line Roll Forming Machine 250mm Thickness
